3 Description of
the Operating
Elements
Front panel of R&S®HMS-X
Display - 6,5" VGA TFT Display
1
Interaktive Softkeys - Direct access of all relevant
2
functions
POWER - Power switch turns the instrument on/off
3
Area
:
A
AMPL - Setting of amplitude parameters
4
SPAN - Setting of the Span
5
FREQ - Setting of the frequency
6
TRACE - Trace configuration
7
SWEEP - Setting of the sweep time and trigger source
8
BANDW - Setting of the resolution (RBW) and video
9
bandwidth (VBW)
LINES - Configuration of limit lines
10
MEAS - Implementation of extended measurements
11
DISPLAY - Setting of the display
12
PEAK SEARCH - Measuring value peak display
13
MARKER - Next marker selection by activating more
14
than 1 marker
E
30
31

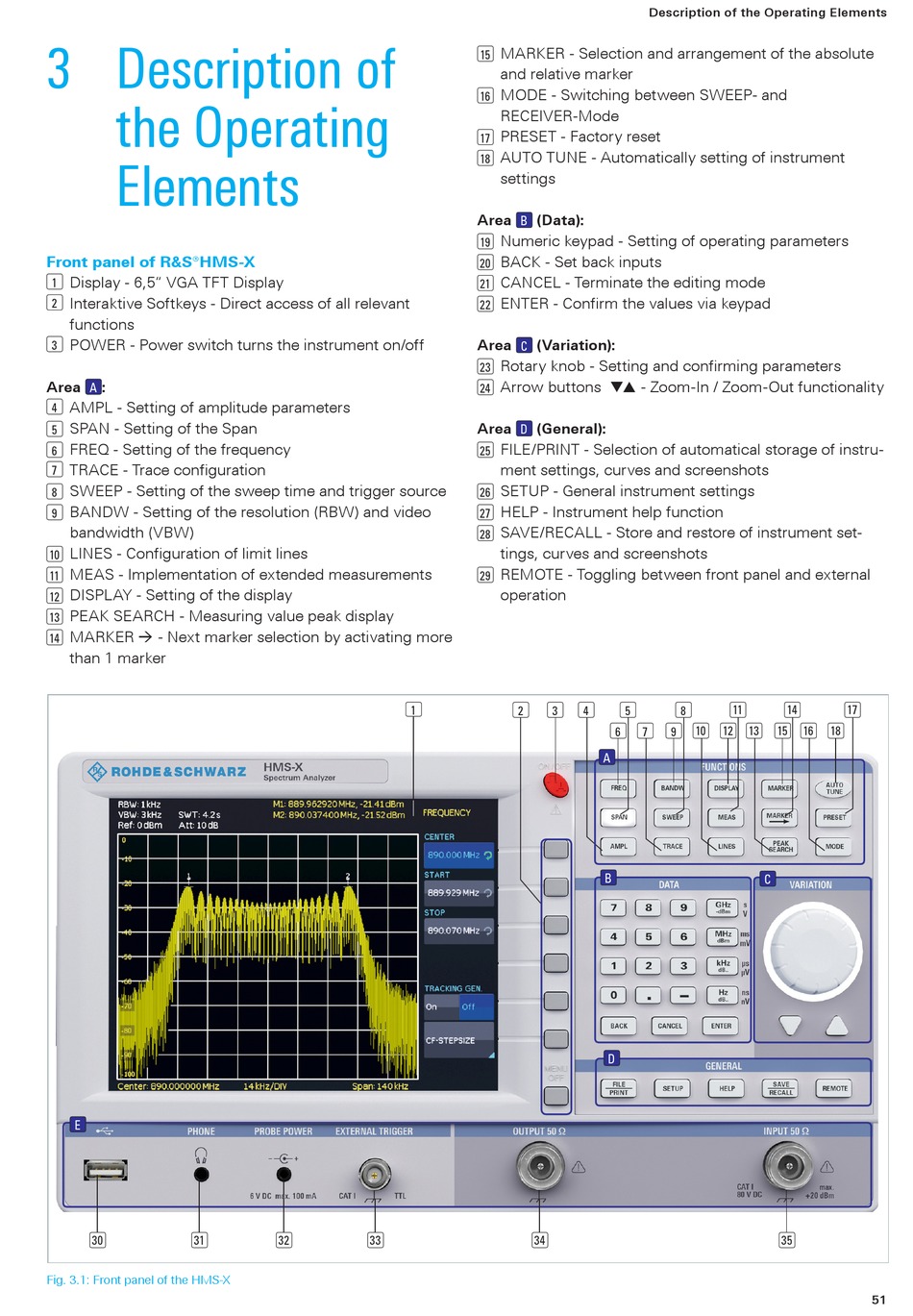

Fig. 3.1: Front panel of the HMS-X
1
32
33
Description of the Operating Elements
MARKER - Selection and arrangement of the absolute
15
and relative marker
MODE - Switching between SWEEP- and
16
RECEIVER-Mode
PRESET - Factory reset
17
AUTO TUNE - Automatically setting of instrument
18
settings
Area
(Data):
B
Numeric keypad - Setting of operating parameters
19
BACK - Set back inputs
20
CANCEL - Terminate the editing mode
21
ENTER - Confirm the values via keypad
22
Area
(Variation):
C
Rotary knob - Setting and confirming parameters
23
Arrow buttons
- Zoom-In / Zoom-Out functionality
24
Area
(General):
D
FILE/PRINT - Selection of automatical storage of instru-
25
ment settings, curves and screenshots
SETUP - General instrument settings
26
HELP - Instrument help function
27
SAVE/RECALL - Store and restore of instrument set-
28
tings, curves and screenshots
REMOTE - Toggling between front panel and external
29
operation
2
3
4
5
6
7
A
B
D
34
8
11
14
10
12
13
15
16
18
9
C
35
17
51
