The resulting input impedance versus frequency is indicated in
trace shows five characteristic areas, which can be assigned to R
and |Z |. The resulting loading of a step signal at the input of the probe is given
min
in figure 4-9.
The connection inductance L
is therefore not taken into account in the following.

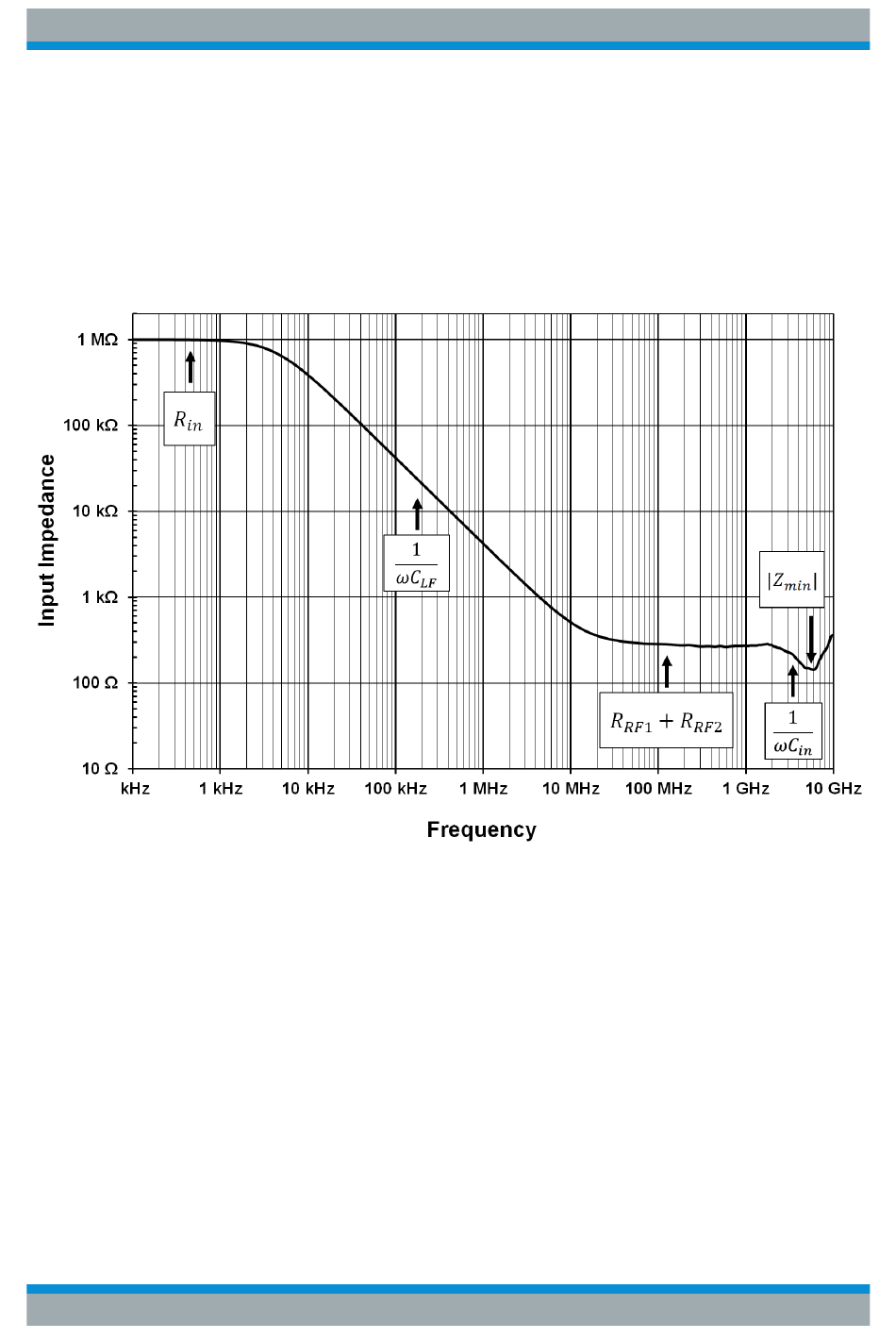

Fig. 4-8: Magnitude of the input impedance of the R&S RT-ZS60 probe as a function of fre-
quency
