Overview

• 4 pre-configured basic systems
• 12 pre-programmed schemes for the temperature controls classes II, III, V, VI, VII
and VIII
• 4 relay outputs (incl. 1 extra-low voltage relay)
• 5 inputs for Pt1000 temperature sensors
• 5 operating modes, boiler protection, room thermostat and night correction
• Chimney sweeper function, screed drying function and holiday mode via microbuttons
• Holiday mode, chimney sweeper function and screed drying function via microbuttons
• Data logging, storing, easy transfer of controller adjustments prepared and
firmware updates via SD card
• Modulating heating control with 0-10 V boiler control
• Weather-compensated control with room influence or demand-based room
control with up to 3 room temperature sensors
• Remote access with a room control unit or the VBus

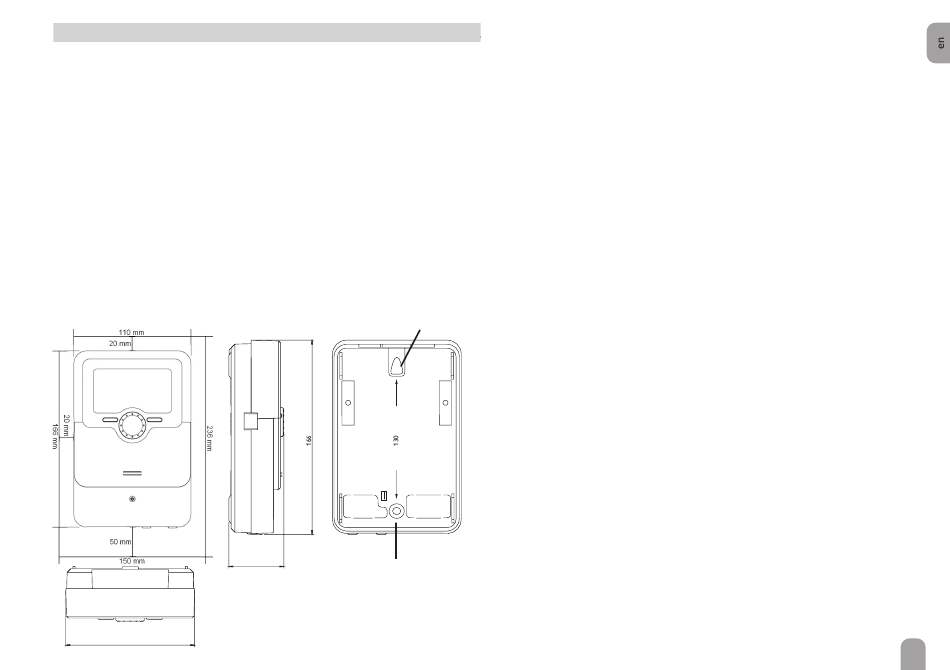

Dimensions and minimum distances
110
Touch HC App
®
Upper fastening
47
Lower fastening
Technical data
Inputs: 5 inputs for Pt1000 temperature sensors (1 of them can be converted to
Switch and one of them to RTA remote control or BAS operating mode switch)
Outputs: 3 semiconductor relays, 1 potential-free extra-low voltage relay,
1 PWM output, 1 0-10 V output
PWM frequency: 512 Hz
PWM voltage: 10.8 V
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
1 (1) A 30 V ⎓ (potential-free relay)
Total switching capacity: 3 A 240 V~
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type X attachment
Standby: 0.62W
Temperature controls class: VIII
Energy efficiency contribution: 5 %
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: VBus
® , MicroSD card slot
VBus current supply: 60 mA
®
Functions: weather-compensated heating circuit control, backup heating,
room thermostat, chimney sweeper function, screed drying function, holiday mode
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, also suitable for mounting into patch panels
Indication / Display: full graphic display, control lamp (Lightwheel
Operation: 4 buttons at the front and 1 Lightwheel
Protection type: IP 20 / DIN EN 60529
Protection class: I
Ambient temperature: 0 ... 40 °C
Degree of pollution: 2
Fuse: T4A
Maximum altitude: 2000 m above MSL
Dimensions: 110 x 166 x 47 mm
)
®
®
