7. Completing the commissioning menu:
After the scheme has been selected, a security enquiry
appears. If the safety enquiry is confirmed, the adjust-
ments are saved.
Î In order to confirm the security enquiry, press the
right button (✓).
Î In order to reenter the commissioning menu
channels, press the left button ( ⟲ ).
If the security enquiry has been confirmed, the con-
troller is ready for operation and should enable an op-
timum system operation.
Adjusting the operating mode:
After commissioning the heating circuit will be in automatic mode. The operating
mode can be changed in the status menu:
• Automatic
• Day
• Night
• Holiday
• Off
Note:
The adjustments carried out during commissioning can be changed any-
time in the corresponding adjustment channel. Additional functions and
options can also be activated or deactivated (see page page 9).
Set the code to the customer code before handing over the con-
troller to the customer (see page page 36).
4.1

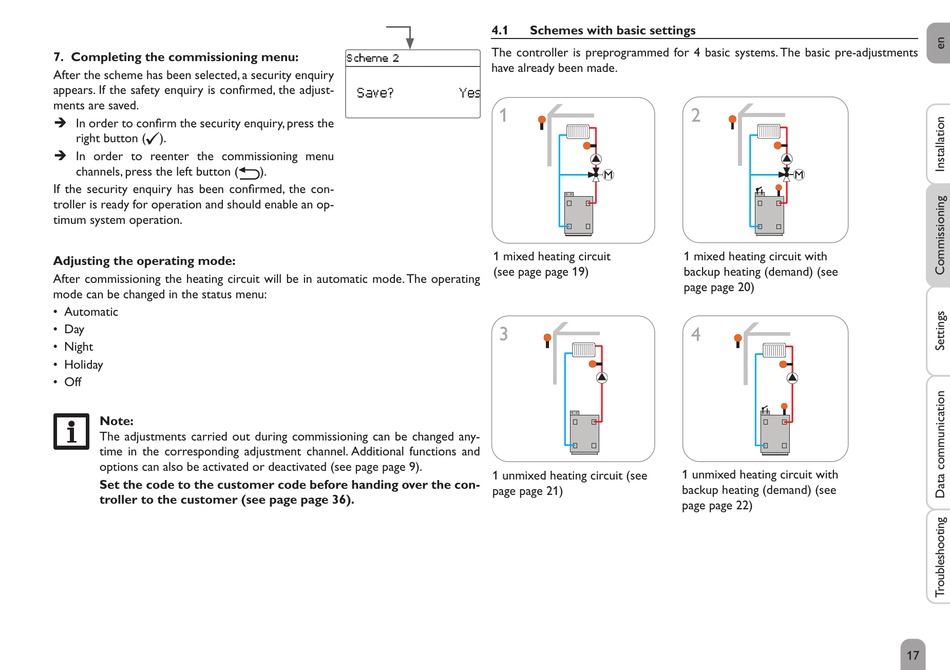

Schemes with basic settings

The controller is preprogrammed for 4 basic systems. The basic pre-adjustments
have already been made.
1
1 mixed heating circuit
(see page page 19)
3
1 unmixed heating circuit (see
page page 21)
2
1 mixed heating circuit with
backup heating (demand) (see
page page 20)
4
1 unmixed heating circuit with
backup heating (demand) (see
page page 22)
