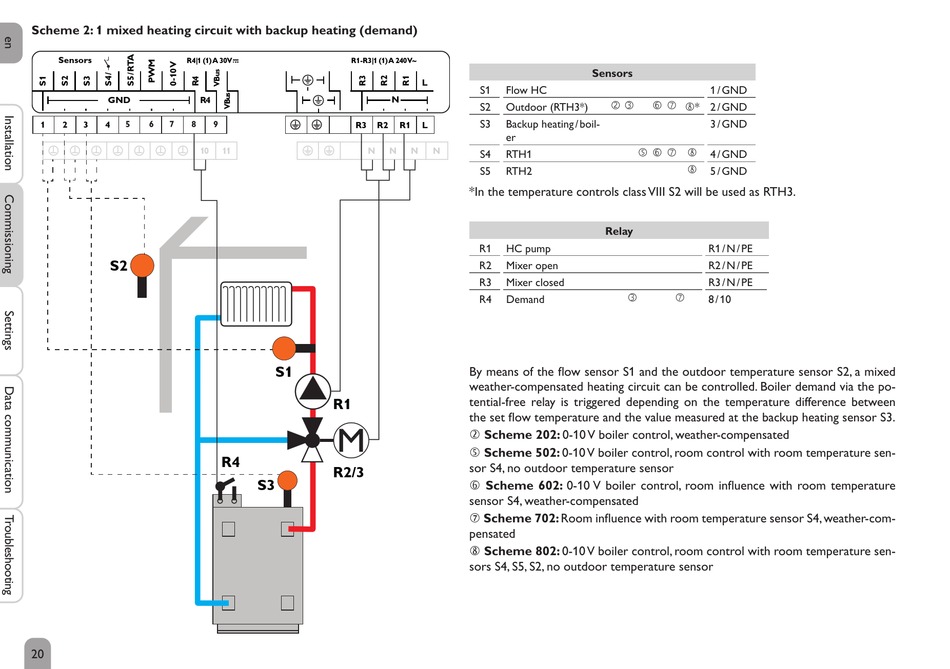

Scheme 2: 1 mixed heating circuit with backup heating (demand)
Sensors
R4|1 (1) A 30V
GND R4
1 2 3 4 5 6 7 8
10
S2
20
R1-R3|1 (1) A 240 V~
N
9 R3 R2
11 N N
S1
R1
R4
R2/3
S3
L
S1 Flow HC
S2 Outdoor (RTH3*)
S3 Backup heating / boil-
R1 L
er
N N
S4 RTH1
S5 RTH2
*In the temperature controls class VIII S2 will be used as RTH3.
R1 HC pump
R2 Mixer open
R3 Mixer closed
R4 Demand
By means of the flow sensor S1 and the outdoor temperature sensor S2, a mixed
weather-compensated heating circuit can be controlled. Boiler demand via the po-
tential-free relay is triggered depending on the temperature difference between
the set flow temperature and the value measured at the backup heating sensor S3.
 Scheme 202: 0-10 V boiler control, weather-compensated
 Scheme 502: 0-10 V boiler control, room control with room temperature sen-
sor S4, no outdoor temperature sensor
 Scheme 602: 0-10 V boiler control, room influence with room temperature
sensor S4, weather-compensated
 Scheme 702: Room influence with room temperature sensor S4, weather-com-
pensated
 Scheme 802: 0-10 V boiler control, room control with room temperature sen-
sors S4, S5, S2, no outdoor temperature sensor
Sensors
1 / GND
    * 2 / GND
3 / GND
   
4 / GND

5 / GND
Relay
R1 / N / PE
R2 / N / PE
R3 / N / PE
 
8 / 10
