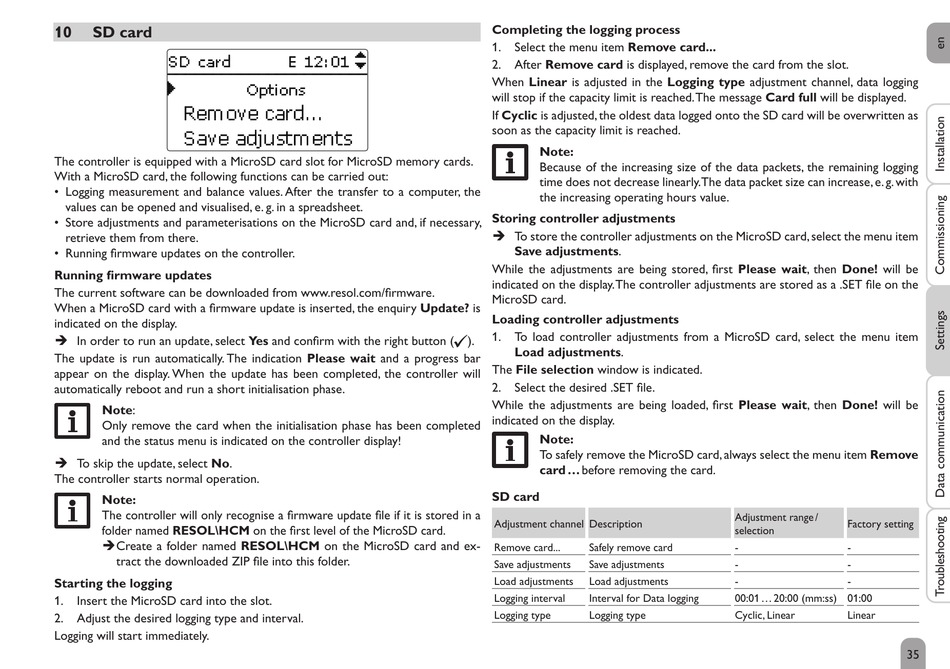

SD card

The controller is equipped with a MicroSD card slot for MicroSD memory cards.
With a MicroSD card, the following functions can be carried out:
• Logging measurement and balance values. After the transfer to a computer, the
values can be opened and visualised, e. g. in a spreadsheet.
• Store adjustments and parameterisations on the MicroSD card and, if necessary,
retrieve them from there.
• Running firmware updates on the controller.
Running firmware updates
The current software can be downloaded from www.resol.com/firmware.
When a MicroSD card with a firmware update is inserted, the enquiry Update? is
indicated on the display.
Î In order to run an update, select Yes and confirm with the right button (✓).
The update is run automatically. The indication Please wait and a progress bar
appear on the display. When the update has been completed, the controller will
automatically reboot and run a short initialisation phase.
Note:
Only remove the card when the initialisation phase has been completed
and the status menu is indicated on the controller display!
Î To skip the update, select No.
The controller starts normal operation.
Note:
The controller will only recognise a firmware update file if it is stored in a
folder named RESOL\HCM on the first level of the MicroSD card.
ÎCreate a folder named RESOL\HCM on the MicroSD card and ex-
tract the downloaded ZIP file into this folder.
Starting the logging
1.
Insert the MicroSD card into the slot.
2.
Adjust the desired logging type and interval.
Logging will start immediately.
Completing the logging process
1.
Select the menu item Remove card...
2.
After Remove card is displayed, remove the card from the slot.
When Linear is adjusted in the Logging type adjustment channel, data logging
will stop if the capacity limit is reached. The message Card full will be displayed.
If Cyclic is adjusted, the oldest data logged onto the SD card will be overwritten as
soon as the capacity limit is reached.
Note:
Because of the increasing size of the data packets, the remaining logging
time does not decrease linearly. The data packet size can increase, e. g. with
the increasing operating hours value.
Storing controller adjustments
Î To store the controller adjustments on the MicroSD card, select the menu item
Save adjustments.
While the adjustments are being stored, first Please wait, then Done! will be
indicated on the display. The controller adjustments are stored as a .SET file on the
MicroSD card.
Loading controller adjustments
1.
To load controller adjustments from a MicroSD card, select the menu item
Load adjustments.
The File selection window is indicated.
2.
Select the desired .SET file.
While the adjustments are being loaded, first Please wait, then Done! will be
indicated on the display.
Note:
To safely remove the MicroSD card, always select the menu item Remove
card ... before removing the card.
SD card
Adjustment channel Description
Remove card...
Safely remove card
Save adjustments
Save adjustments
Load adjustments
Load adjustments
Logging interval
Interval for Data logging
Logging type
Logging type
Adjustment range /
Factory setting
selection
-
-
-
-
-
-
00:01 ... 20:00 (mm:ss) 01:00
Cyclic, Linear
Linear
