5

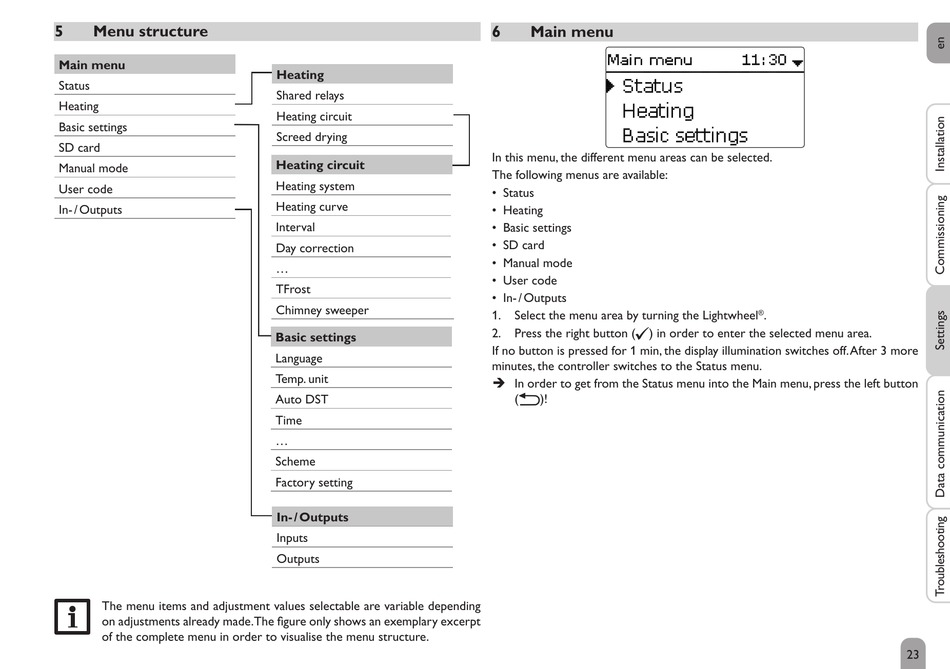

Menu structure

Main menu

Status
Heating
Basic settings
SD card
Manual mode
User code
In- / Outputs
The menu items and adjustment values selectable are variable depending
on adjustments already made. The figure only shows an exemplary excerpt
of the complete menu in order to visualise the menu structure.
Heating
Shared relays
Heating circuit
Screed drying
Heating circuit
Heating system
Heating curve
Interval
Day correction
...
TFrost
Chimney sweeper
Basic settings
Language
Temp. unit
Auto DST
Time
...
Scheme
Factory setting
In- / Outputs
Inputs
Outputs
6 Main menu
In this menu, the different menu areas can be selected.
The following menus are available:
• Status
• Heating
• Basic settings
• SD card
• Manual mode
• User code
• In- / Outputs
1. Select the menu area by turning the Lightwheel
2. Press the right button (✓) in order to enter the selected menu area.
If no button is pressed for 1 min, the display illumination switches off. After 3 more
minutes, the controller switches to the Status menu.
Î In order to get from the Status menu into the Main menu, press the left button
(⟲)!
.
®
23
