Values and adjustments can be changed in different ways:

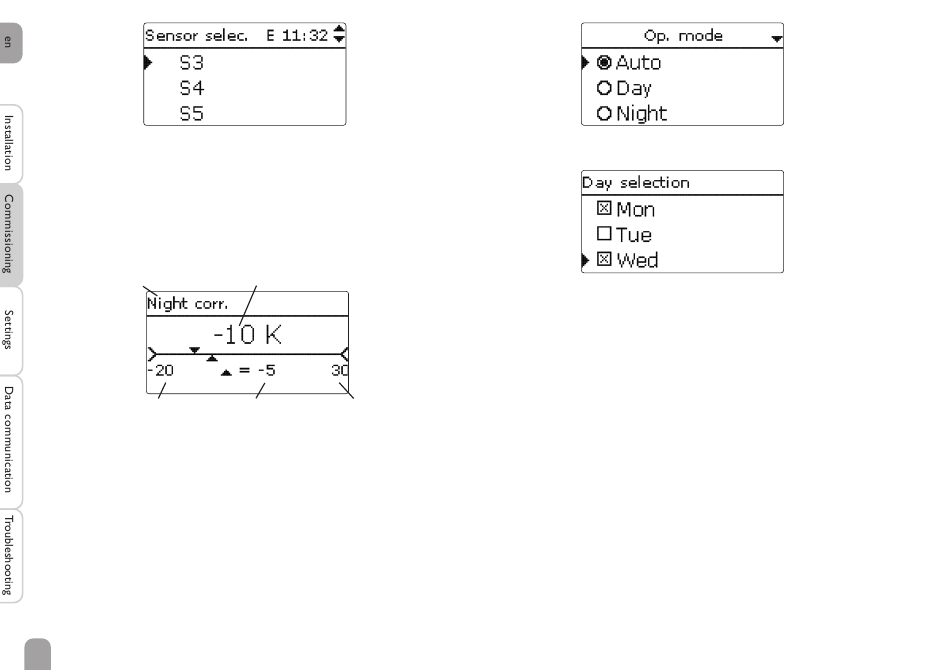

Numeric values can be adjusted by means of a slide bar. The minimum value is indi-
cated to the left, the maximum value to the right. The large number above the slide
bar indicates the current adjustment. By turning the Lightwheel
can be moved to the left or to the right.
Only after the adjustment has been confirmed by pressing the right button (✓) will
the number below the slide bar indicate the new value. The new value will be saved
if it is confirmed by pressing the right button (✓) again.
adjustment channel
minimum value current value saved
When 2 values are locked against each other, they will display a reduced adjustment
range depending on the adjustment of the respective other value.
In this case, the active area of the slide bar is shortened, the inactive area is indicated
as a dotted line. The indication of the minimum and maximum values will adapt to
the reduction.
12
, the upper slide bar
®
adjusted value (not yet confirmed)
maximum value
If only one item of several can be selected, they will be indicated with radio buttons.
When one item has been selected, the radio button in front of it is filled.
If more than one item of several can be selected, they will be indicated with check-
boxes. When an item has been selected, an x appears inside the checkbox.
If no button has been pressed within a couple of minutes, the adjustment is can-
celled and the previous value is retained.
