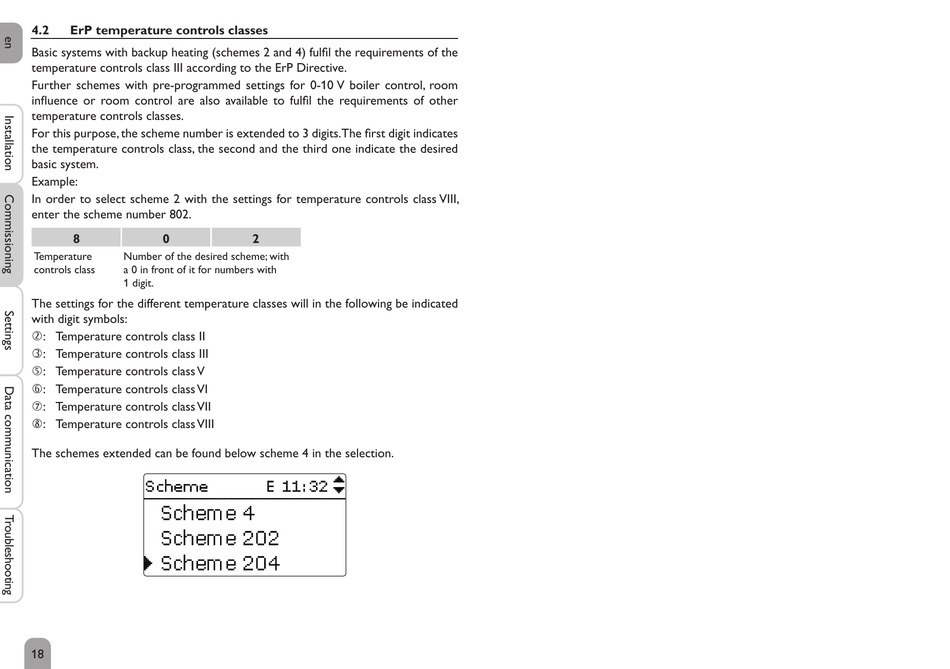

4.2

ErP temperature controls classes

Basic systems with backup heating (schemes 2 and 4) fulfil the requirements of the
temperature controls class III according to the ErP Directive.
Further schemes with pre-programmed settings for 0-10 V boiler control, room
influence or room control are also available to fulfil the requirements of other
temperature controls classes.
For this purpose, the scheme number is extended to 3 digits. The first digit indicates
the temperature controls class, the second and the third one indicate the desired
basic system.
Example:
In order to select scheme 2 with the settings for temperature controls class VIII,
enter the scheme number 802.
8 0
Temperature Number of the desired scheme; with
controls class a 0 in front of it for numbers with
1 digit.
The settings for the different temperature classes will in the following be indicated
with digit symbols:
: Temperature controls class II
: Temperature controls class III
: Temperature controls class V
: Temperature controls class VI
: Temperature controls class VII
: Temperature controls class VIII
The schemes extended can be found below scheme 4 in the selection.
