MOUNTING INSTRUCTIONS
6

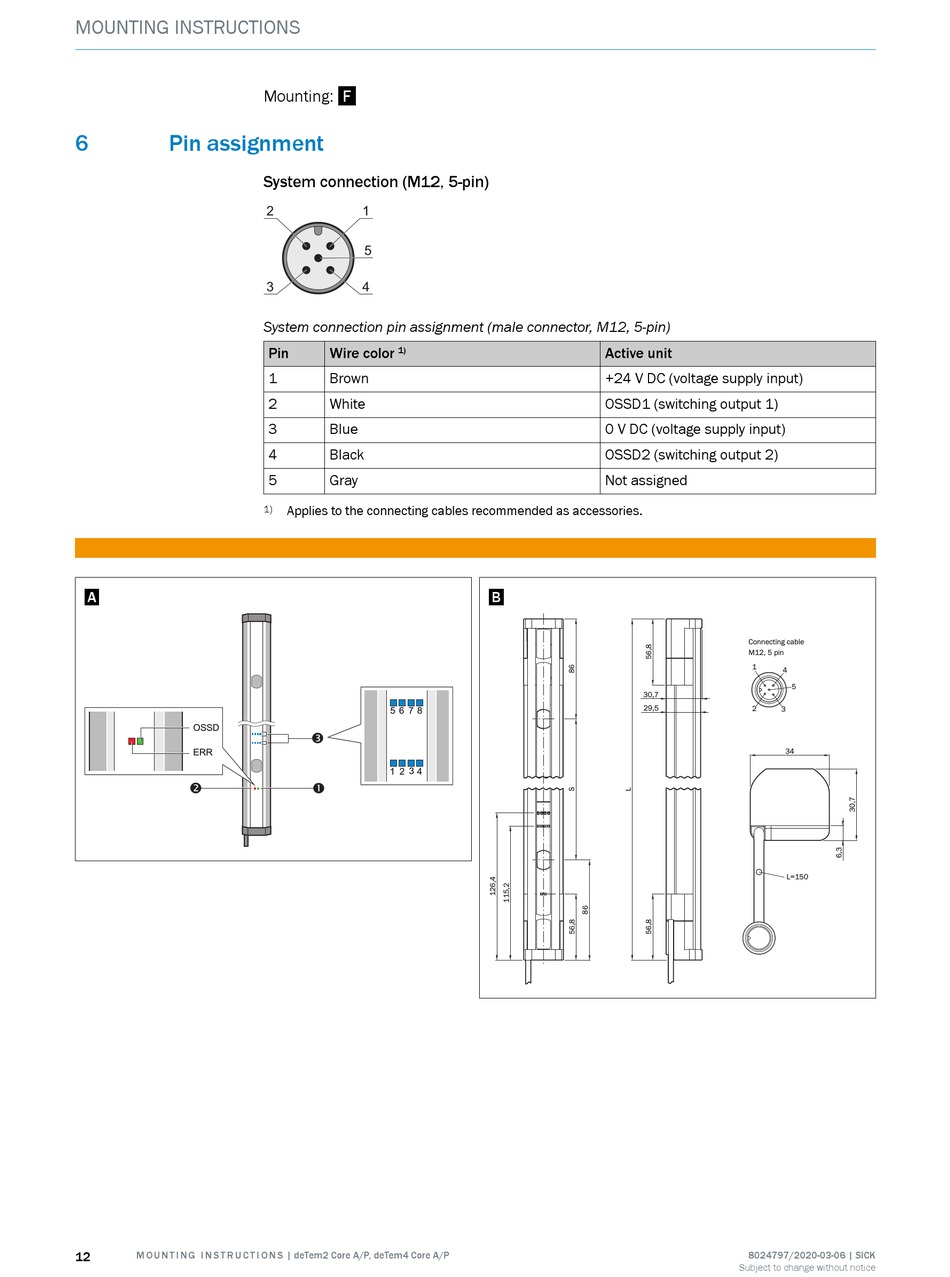

Pin assignment
A
OSSD
ERR
"
12
M O U N T I N G I N S T R U C T I O N S | deTem2 Core A/P, deTem4 Core A/P
Mounting:
F
System connection (M12, 5-pin)
2
1
5
3
4
System connection pin assignment (male connector, M12, 5-pin)
Pin
Wire color
1)
1
Brown
2
White
3
Blue
4
Black
5
Gray
1)
Applies to the connecting cables recommended as accessories.
5 6 7 8
§
1 2 3 4
!
Active unit
+24 V DC (voltage supply input)
OSSD1 (switching output 1)
0 V DC (voltage supply input)
OSSD2 (switching output 2)
Not assigned
B
30,7
29,5
Connecting cable
M12, 5 pin
1
4
5
2
3
34
L=150
