Elevator Assembly
D

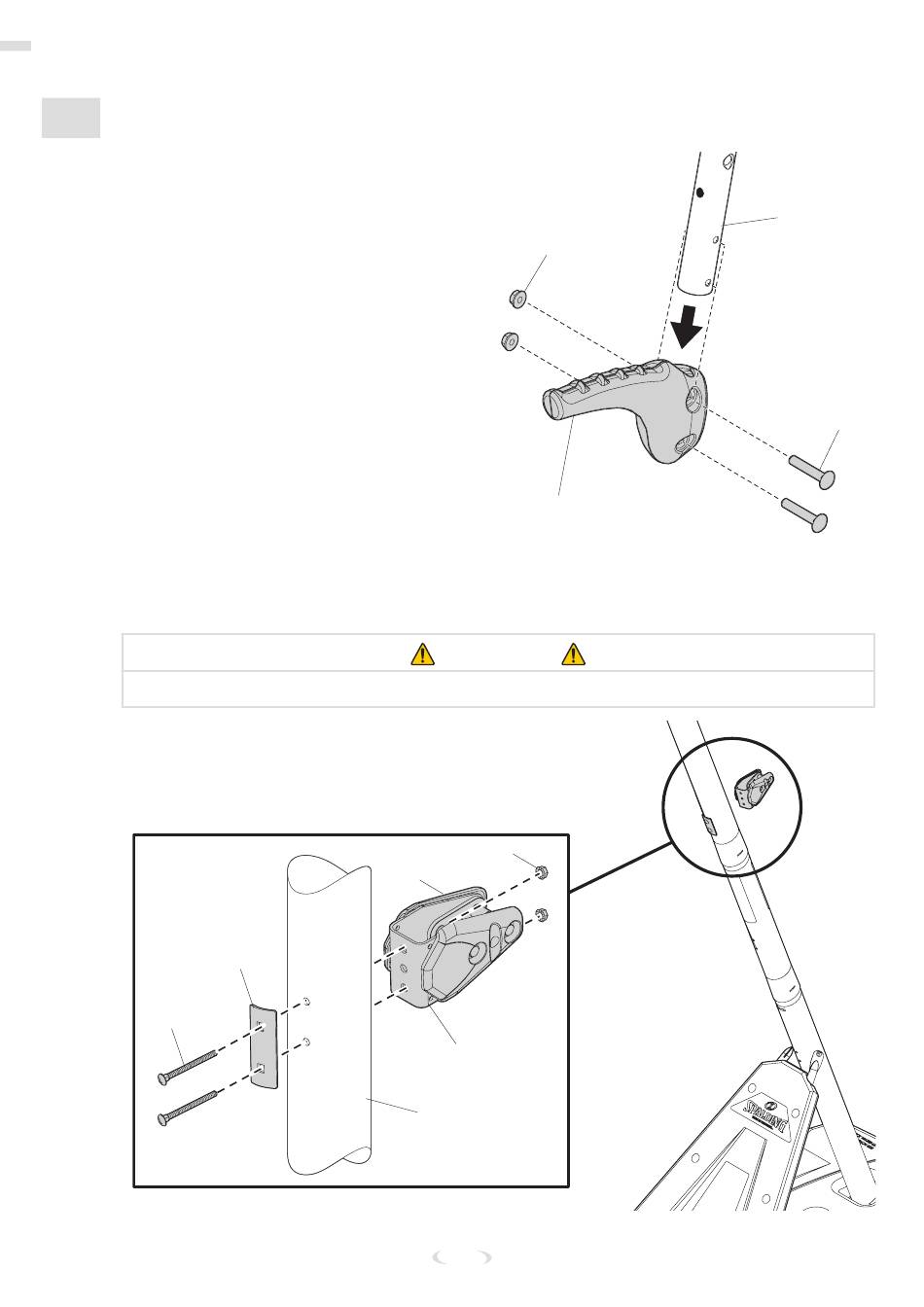

INSTALL THE ELEVATOR ASSEMBLY
1. Check the three screws on the pre-
assembled handle (23) for tightness.
2. Insert the height adjustment tube (26)
into the handle pre-assembly (23) and
secure with bolts (29) and nuts (30).
3. Install the pre-assembled lift bracket (22) and reinforcement bracket (27) to the top pole (12) with
the carriage bolts (28) and nuts (20). Tighten the flange nuts (20) completely.
DO NOT OVERTIGHTEN.
