Elevator Assembly

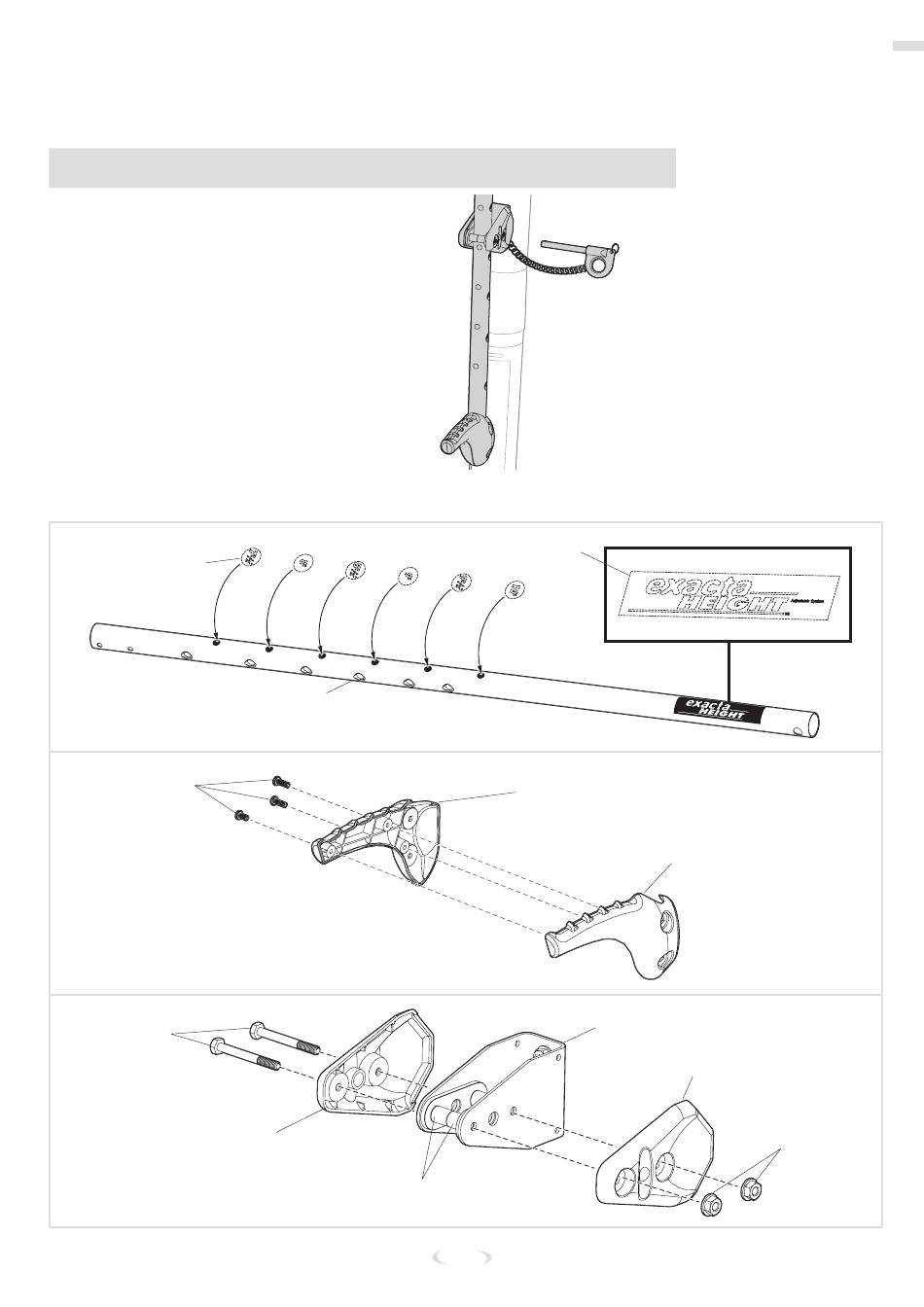

Required Parts:
• Kit 3
• Socket Wrench or Wrench
PRE-ASSEMBLED HANDLE
Label, Height Indicator
P/N 204872
Height Adjustment Rod
26-901607
Screw P/N 208437
23-702660
Hex Bolt
P/N 209057
Bracket Cover P/N 208850
22-702657
Completed Elevator Assembly:
P/N 901657
Spacers P/N 600360
Label, Height Indicator
P/N 204872
Handle, Left P/N 208848
Bracket P/N 901606
17
Elevator Assembly
Handle, Right P/N 208849
Bracket Cover P/N 208850
Hex Nut
P/N 209054
