Assemble the Backboard
E

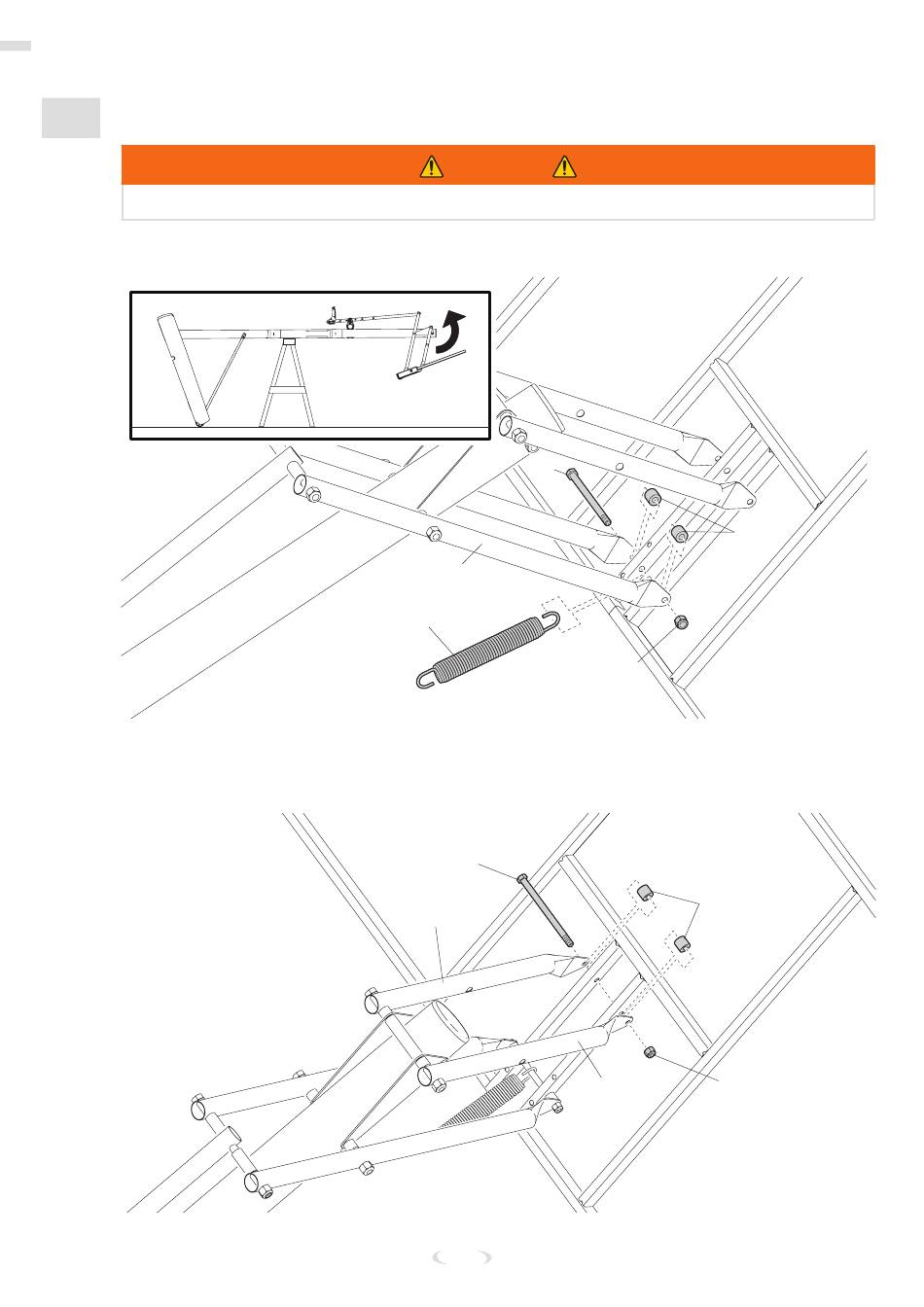

ATTACH THE ELEVATOR TUBE ASSEMBLY
USE EYE PROTECTION WHEN INSTALLING THE SPRINGS.
6. Attach the lower elevator tubes (32) and counter balance spring (34) to the backboard using the
bolt (38), spacers (44), and nut (43).
7. Attach the upper elevator tubes (31) to the backboard using the bolt (38), plastic spacers (44),
and nut (43).
WARNING
#38
#32
#34
#38
#31
24
#44
#43
#44
#31
#43
