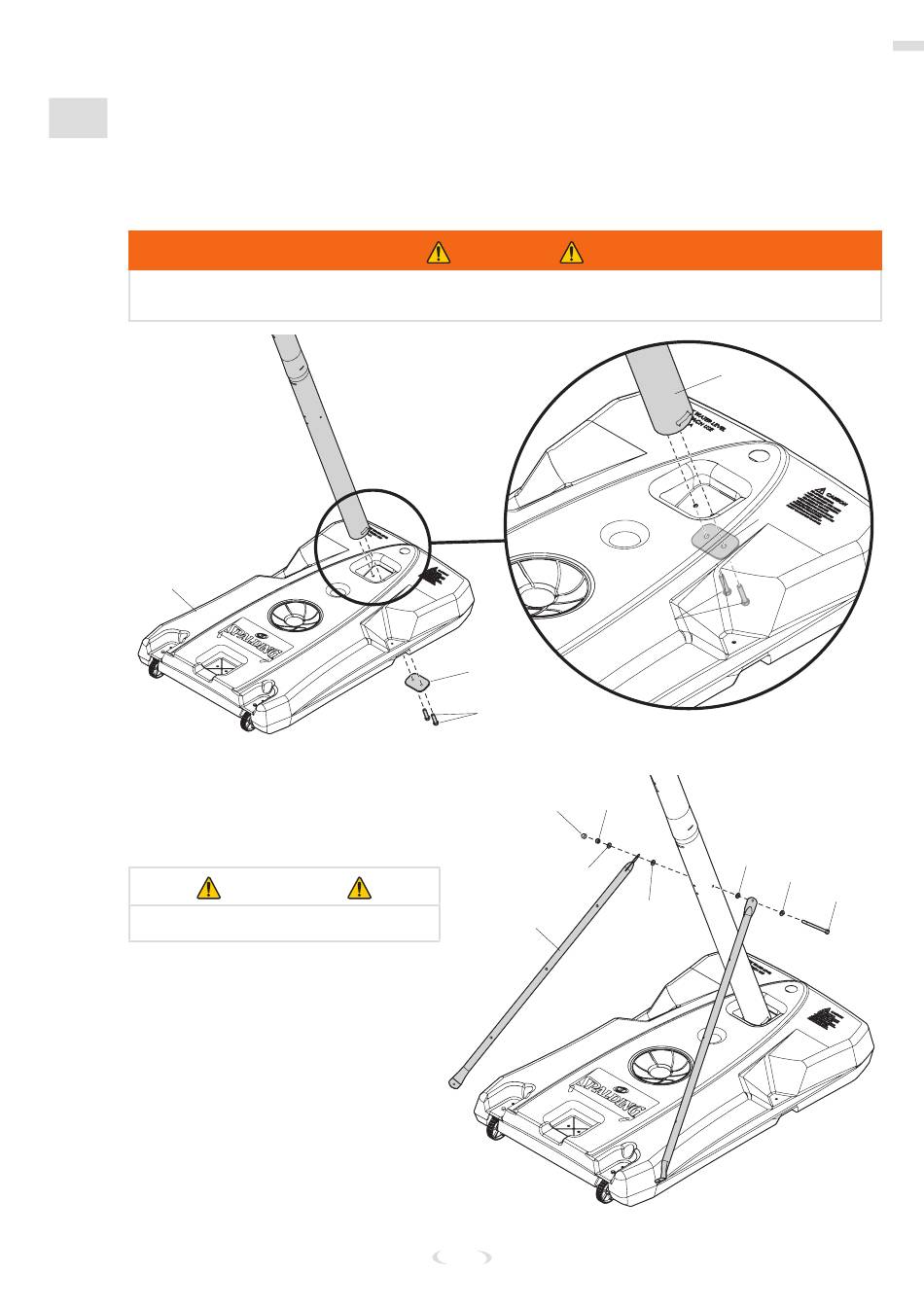

INSTALL THE OVAL POLE ONTO THE BASE
1. Attach the oval pole assembly to the base (1).
2. Secure the oval pole assembly to the base (1) using bolts (14) and the pole mounting bracket
(13).
TWO PEOPLE ARE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD
RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
#1
3. Secure the base struts (3) to the
pole.
4. Place the cover (21) over the exposed
end of the bolt.
IMPORTANT
DO NOT TIGHTEN COMPLETELY.
WARNING
#13
#14
#16
#21
#9
#17
#3
15
Assemble the Base
#10
#13
#14
#17
#9
#15
