5.5 Emission levels

Levels determined in accordance with
EN 60 745 are typically:
Sound pressure level
Noise level
Uncertainty
CAUTION
Operating noise
Damage to hearing
► Use ear protection!
Vibration emission value a
three directions) and uncertainty K meas-
ured in accordance with EN 60 745:
Uncertainty
The emission values specifi ed (vibration,
noise) were measured in accordance with
the test conditions stipulated in EN 60 745
and are intended for machine comparisons.
They are also used for making preliminary
estimates regarding vibration and noise
loads during operation.
The emission values specifi ed refer to the
main applications for which the power tool
is used. If the electric power tool is used for
other applications, with other tools or is not
maintained suffi ciently prior to operation,
however, the vibration and noise load may
be higher when the tool is used.
Take into account any machine idling times
and downtimes to estimate these values
more accurately for a specifi ed time period.
This may signifi cantly reduce the load dur-
ing the machine operating period.
6 Commissioning and
Operation
WARNING
Risk of injury, if the tools are used
with wrong supply power.
The voltage specifi cations on the rating plate
must correspond with the mains voltage.
Equipment marked with 230 V can also be
connected to 220 V / 240 V.
Check that the plug type is the same as the
socket type.
L = 91 dB (A)
PA
L = 102 dB (A)
WA
K = 1.5 dB
(vector sum for
h
a = 1.4 m/s
2
h
K = 1.5 m/s
2

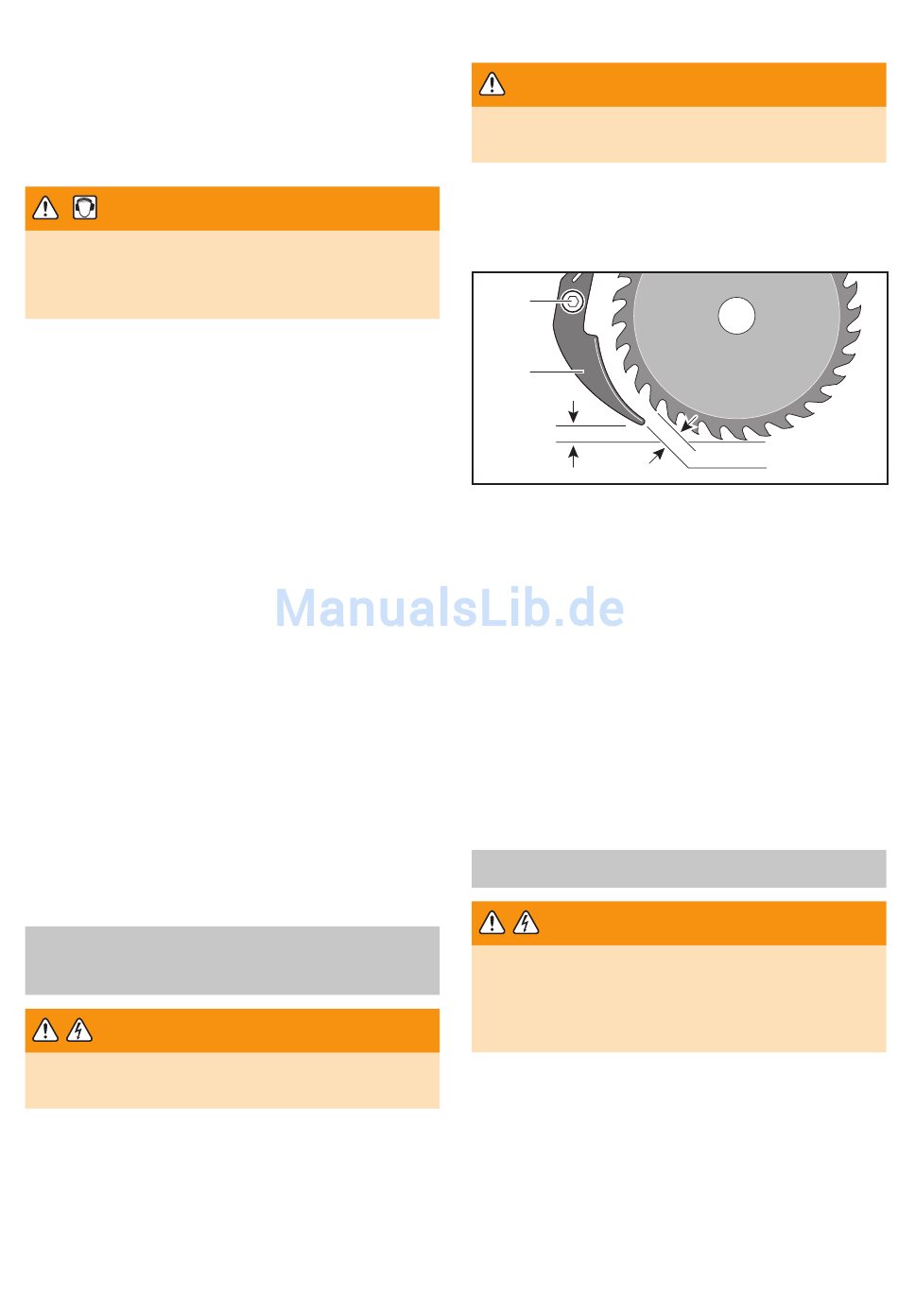

Adjustment of the riving knife
WARNING
Risk of injury, if the riving knife is not
correctly adjusted.
The riving knife [2-6] must always be used
for safety reasons. The riving knife prevents
the saw blade from becoming jammed when
making lengthwise cuts.
1-5
2-6
2.5 – 5 mm
Loosen screw [1-5], adjust the riving knife
[2-6] and retighten the screw (see fi gure).
Check the function of the swinging guard
[1-8].

Switching On/Off

Switching On:
Press the safety button [1-1].
Press the on-off switch and hold depressed.
Note: The on-off switch cannot be locked
on.
Switching Off:
Release the on-off switch [1-2].
7

Adjustment

WARNING
Risk of electric injury.
► Before any manipulation with the tool
make sure to unplug the mains socket
outlet.

7.1 Electronic Motor Control

Starting current limiting
The electronically controlled smooth start
takes care that the machine starts without
jerk. As a result of the machine's reduced
starting current, a 16 A fuse is suffi cient.
2.5 – 5 mm
17
