3 . Technical Specifications

ZAPTEC Pro is an alternating current wall or column-
mounted charging station in accordance with IEC 61851-1,
EVSE mode 3.
Dimensions and weight

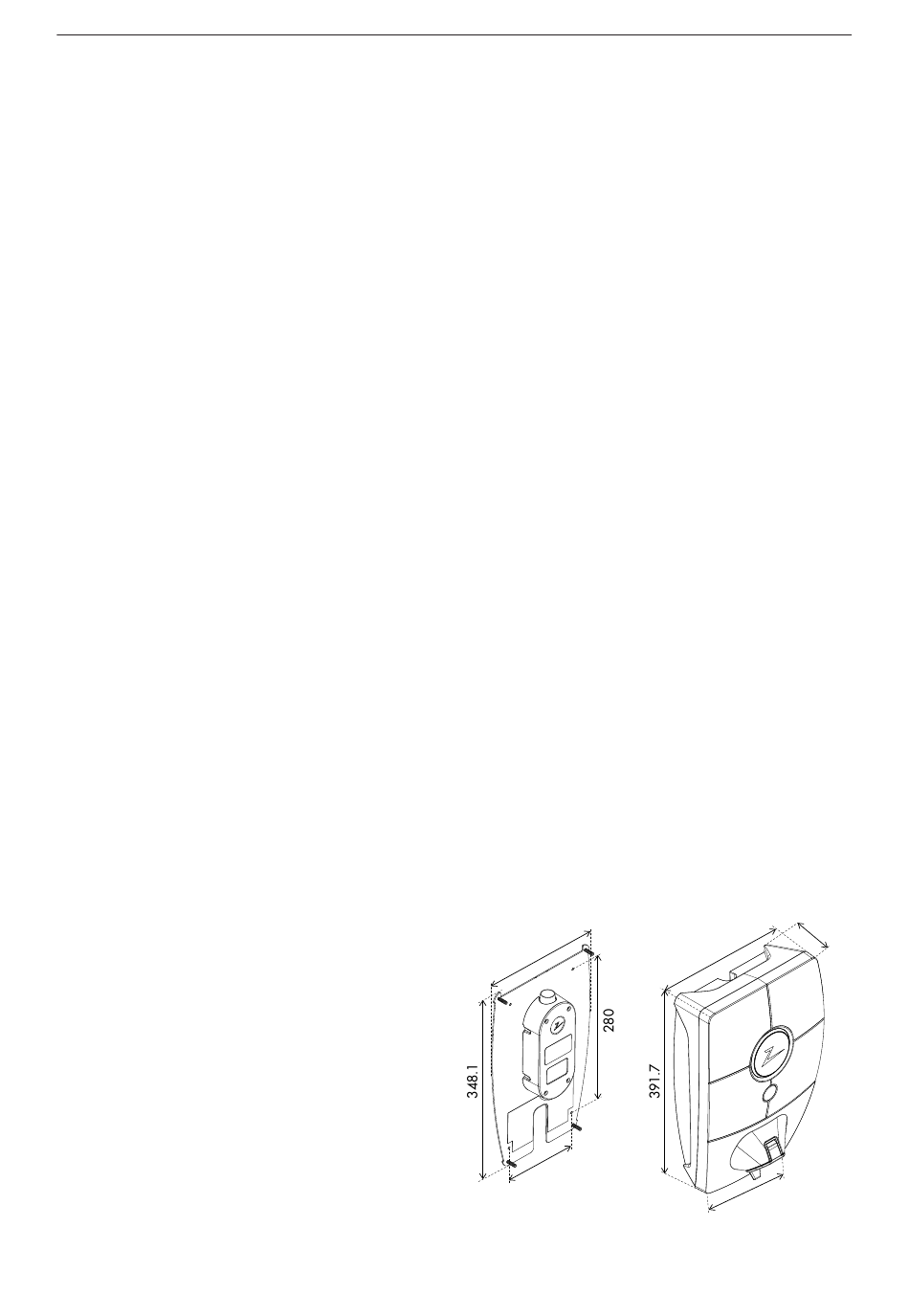

H: 392 mm W: 258 mm D: 112 mm
Weight: approx. 5 kg (including backplate)
Installation circuit
Max. 63A serial fuse on installation circuit
for charging stations.
Backplate connection box
Cable cross section 2.5–10 mm2
Cable diameter 10–20mm2
Installation network, Voltages
TN, IT and TT
230VAC ±10%
400VAC ±10%
Max. current and charging output
7.36kW* at 32A/1-phase
22kW* at 32A/3-phase (applicable to TN networks only)
5W at standby
Fuses
Built-in 3 x 40A fuses type C
Charging point
EC 62196-2 Type 2 Female with integrated self-closing
cover
Earth fault protection
Built-in type B RCD
Calibration and a self-test are carried out before the start
of every charging cycle. RCD can be automatically reset
by disconnecting from the charging connector.
Integrated Power Meter
MID tested and calibrated (EN.50470).
Theft protection
The front cover of the ZAPTEC Pro can only be opened
using a special tool. The charging cable can be locked
permanently to the charging station.
Load balancing
Together with other ZAPTEC Pro charging stations,
available power in the installation will be distributed
automatically between the devices and phases.
Phase balancing
The charging station will dynamically select any single
phase or 3-phase in a system with other ZAPTEC Pro
charging stations, depending on the available power.
Communications interface
and cloud connection/network
4G LTE-M1 (subscription required)
Wi-Fi 2.4 GHz, IEEE 802.11 b/g/n (channels 1-11)
Powerline (PLC) – HomePlug Green PHY®, 10 Mbit/s
Identification and configuration
Bluetooth Low Energy (BLE 4.1)
RFID/NFC reader – Mifare Classic, Type A
PLC for vehicle interface for future services
as defined by ISO15118
Standards and approvals
CE compliance in accordance with the Radio
Equipment Directive
2014/53/EU and ROHS Directive 2011/65/EU, and
compliance with IEC 61851-1 (TUV SÜD) and IEC 61851-22
Temperature range
–30°C to +50°C
Degree of protection
IP54, indoor and outdoor use
IK10 impact protection
UL94 5VB flammability rating
UV resistant
Electrical protection
Protection class II (4kV AC and
6kV impulse, insulation)
Overvoltage category III (4kV)
Integration services
Third-party integration alternatives
(API, Webhooks)
OCPP 1.6J
Message subscription
*32A is available but may be restricted by the condition
of the vehicle's battery and temperature increases
at the charging station.
