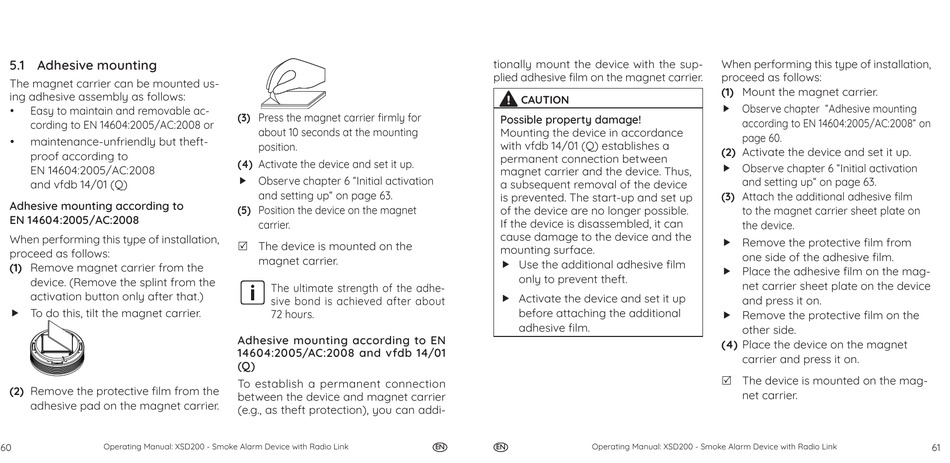

5.1 Adhesive mounting

stark magnetisch anziehend wirkt.
The magnet carrier can be mounted us-
ing adhesive assembly as follows:
5.1 Klebemontage
Easy to maintain and removable ac-
•
Den Magnetträger können Sie wie folgt
cording to EN 14604:2005/AC:2008 or
mittels Klebemontage montieren:
maintenance-unfriendly but theft-
• wartungsfreundlich und abnehmbar
•
proof according to
nach EN 14604:2005/AC:2008
EN 14604:2005/AC:2008
oder wartungsunfreundlich aber
•
and vfdb 14/01 (Q)
diebstahlsicher nach EN 14604:2005/
Adhesive mounting according to
AC:2008 und vfdb 14/01 (Q)
EN 14604:2005/AC:2008
Klebemontage nach EN Klebemontage nach EN
When performing this type of installation,
14604:2005/AC:2008 14604:2005/AC:2008
proceed as follows:
Gehen Sie bei dieser Montagear t wie
(1) Remove magnet carrier from the
folgt vor:
device. (Remove the splint from the
(1) Magnetträger vom Gerät entfernen
activation button only after that.)
f dazu Magnetträger ankippen
f To do this, tilt the magnet carrier.
(2) Remove the protective film from the
adhesive pad on the magnet carrier.
M200 – Rauchwarnmelder
60 Operating Manual: XSD200 - Smoke Alarm Device with Radio Link
(3) Press the magnet carrier firmly for
about 10 seconds at the mounting
position.
(4) Activate the device and set it up.
f Observe chapter 6 "Initial activation
and setting up" on page 63.
(5) Position the device on the magnet
carrier.
5 The device is mounted on the
magnet carrier.
The ultimate strength of the adhe-
sive bond is achieved after about
72 hours.
Adhesive mounting according to EN
14604:2005/AC:2008 and vfdb 14/01
(Q)
To establish a permanent connection
between the device and magnet carrier
(e.g., as theft protection), you can addi-
DE
EN
tionally mount the device with the sup-
plied adhesive film on the magnet carrier.
CAUTION
Possible property damage!
Mounting the device in accordance
with vfdb 14/01 (Q) establishes a
permanent connection between
magnet carrier and the device. Thus,
a subsequent removal of the device
is prevented. The start-up and set up
of the device are no longer possible.
If the device is disassembled, it can
cause damage to the device and the
mounting surface.
f Use the additional adhesive film
only to prevent theft.
f Activate the device and set it up
before attaching the additional
adhesive film.
EN
Operating Manual: XSD200 - Smoke Alarm Device with Radio Link
EN EN
When performing this type of installation,
proceed as follows:
(1) Mount the magnet carrier.
f Observe chapter "Adhesive mounting
according to EN 14604:2005/AC:2008" on
page 60.
(2) Activate the device and set it up.
f Observe chapter 6 "Initial activation
and setting up" on page 63.
(3) Attach the additional adhesive film
to the magnet carrier sheet plate on
the device.
f Remove the protective film from
one side of the adhesive film.
f Place the adhesive film on the mag-
net carrier sheet plate on the device
and press it on.
f Remove the protective film on the
other side.
(4) Place the device on the magnet
carrier and press it on.
5 The device is mounted on the mag-
net carrier.
61
