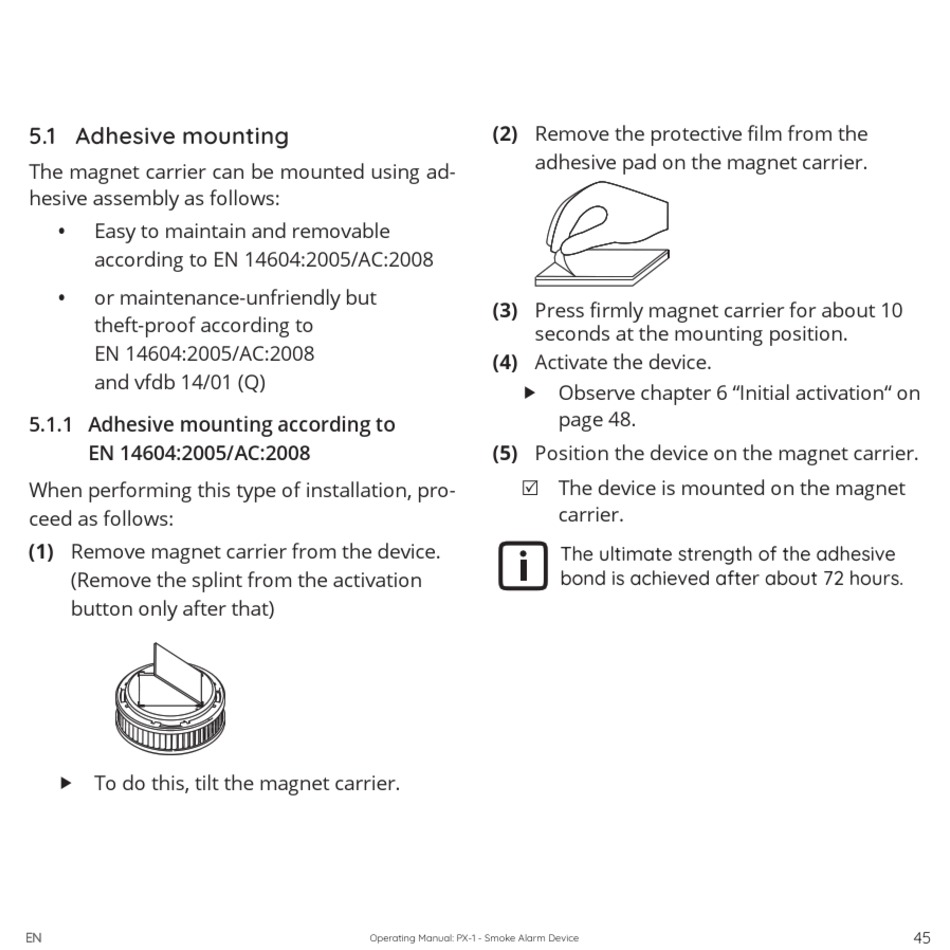

5.1 Adhesive mounting

The magnet carrier can be mounted using ad-
hesive assembly as follows:
Easy to maintain and removable
•
according to EN 14604:2005/AC:2008
or maintenance-unfriendly but
•
theft-proof according to
EN 14604:2005/AC:2008
and vfdb 14/01 (Q)
5.1.1 5.1.1 Adhesive mounting according to Adhesive mounting according to
EN 14604:2005/AC:2008 EN 14604:2005/AC:2008
When performing this type of installation, pro-
ceed as follows:
(1) Remove magnet carrier from the device.
(Remove the splint from the activation
button only after that)
f To do this, tilt the magnet carrier.
(2) Remove the protective film from the
adhesive pad on the magnet carrier.
(3) Press firmly magnet carrier for about 10
seconds at the mounting position.
(4) Activate the device.
f Observe chapter 6 "Initial activation" on
(5) Position the device on the magnet carrier.
5 The device is mounted on the magnet
Operating Manual: PX-1 - Smoke Alarm Device
page 48.
carrier.
The ultimate strength of the adhesive
bond is achieved after about 72 hours.
