Splint pin (activation backup)
The splint pin (activation backup) is used
during the transport of the device to pro-
tect against accidental activation.
After activating the device, the splint pin
(activation backup) is used as a tool for
operating the radio button, and must be
kept readily available in the vicinity of
the device.
Activation button
The activation button is used to turn the
device on and off.
Magnet carrier
The magnet carrier is used for fastening
the device.
Signal LED
The signal LED displays results and in-
termediate results during start-up of de-
vices and setting up of radio groups or
shared radio groups.
52 Operating Manual: XSD200 - Smoke Alarm Device with Radio Link
Radio button
The radio button is found in the opening
marked with an arrow. It is used to set up
the radio connection between devices.
Smoke intake lamellas
Smoke from the fire reaches the inside
of the device through the smoke intake
lamellas and can then be detected by
sensors.
Testing/stop button
(smoke alarm device cover)
The testing/stop button (smoke alarm
device cover) is used for a self-test, for
correct wireless connection between
multiple devices or between devices of
a radio group.
The testing/stop button (smoke alarm
device cover) can be pressed to interrupt
or stop alarm and alert tones.
EN

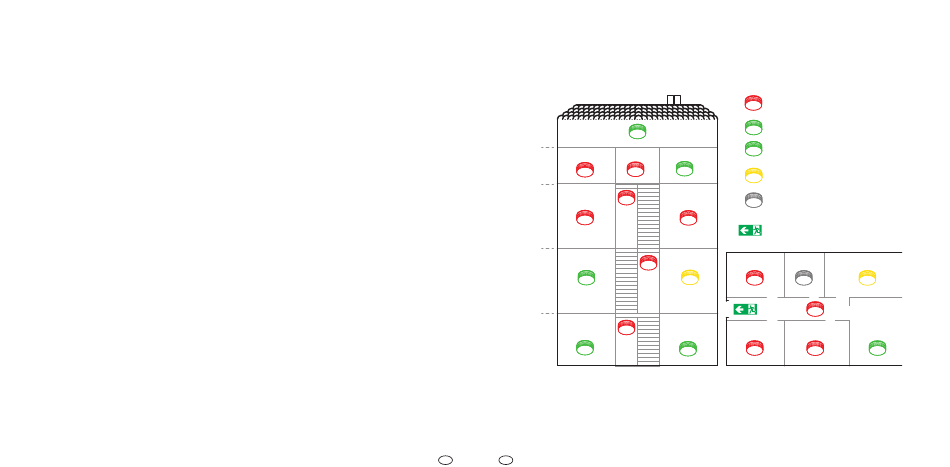

4 Location selection

4 Location selection
Attic
Top
Guest room
floor
Upper
Bedroom
floor
Ground
Livingroom
floor
*
Cellar Heating
Fig. 11 Location selection
Fig. 2 Location selection
Operating Manual: FRWM200 – Smoke Alarm Device with Radio Link
50
EN
Operating Manual: XSD200 - Smoke Alarm Device with Radio Link
EN EN
Minimum equipment
Optimal equipment
*
Required by law in Berlin
Office
and Brandenburg
Conditional
Children´s
D o not install d ue to
bedroom
steam
Escape route
Kitchen
Bedroom Bath-
room
Corridor
Workroom
Children´s
Children´s
*
Bedroom Bedroom
Kitchen
Livingroom
*
EN
53
