B e a c h t e n S i e , d a s s d e r
-
Magnetträger nur von einer Seite
h stark magnetisch anziehend wirkt.
-
5.1 Klebemontage
-
Den Magnetträger können Sie wie folgt
e
mittels Klebemontage montieren:
d

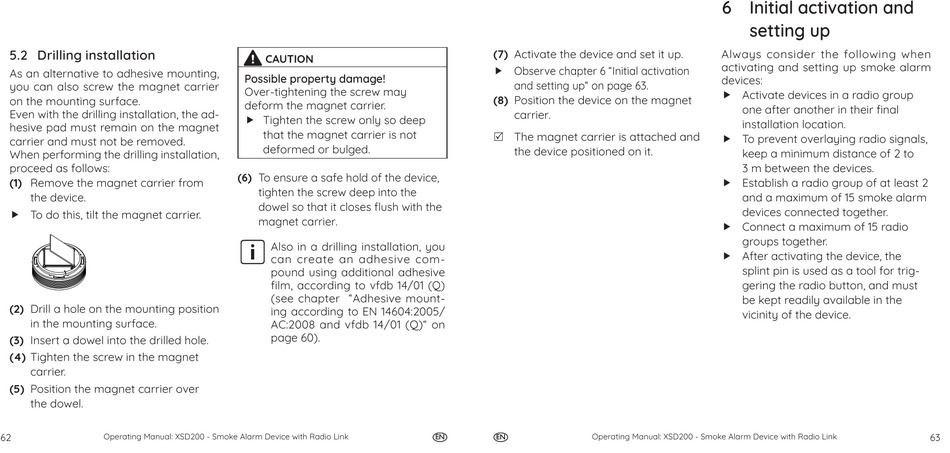

5.2 Drilling installation
wartungsfreundlich und abnehmbar
•
n
As an alternative to adhesive mounting,
nach EN 14604:2005/AC:2008
you can also screw the magnet carrier
oder wartungsunfreundlich aber
•
on the mounting surface.
diebstahlsicher nach EN 14604:2005/
Even with the drilling installation, the ad-
AC:2008 und vfdb 14/01 (Q)
hesive pad must remain on the magnet
carrier and must not be removed.
Klebemontage nach EN Klebemontage nach EN
When performing the drilling installation,
14604:2005/AC:2008 14604:2005/AC:2008
proceed as follows:
Gehen Sie bei dieser Montagear t wie
(1) Remove the magnet carrier from
folgt vor:
the device.
(1) Magnetträger vom Gerät entfernen
f To do this, tilt the magnet carrier.
f dazu Magnetträger ankippen
(2) Drill a hole on the mounting position
in the mounting surface.
(3) Insert a dowel into the drilled hole.
M200 – Rauchwarnmelder
(4) Tighten the screw in the magnet
carrier.
(5) Position the magnet carrier over
the dowel.
62 Operating Manual: XSD200 - Smoke Alarm Device with Radio Link
CAUTION
Possible property damage!
Over-tightening the screw may
deform the magnet carrier.
f Tighten the screw only so deep
that the magnet carrier is not
deformed or bulged.
(6) To ensure a safe hold of the device,
tighten the screw deep into the
dowel so that it closes flush with the
magnet carrier.
Also in a drilling installation, you
can create an adhesive com-
pound using additional adhesive
film, according to vfdb 14/01 (Q)
(see chapter "Adhesive mount-
ing according to EN 14604:2005/
AC:2008 and vfdb 14/01 (Q)" on
page 60).
DE
EN
(7) Activate the device and set it up.
f Observe chapter 6 "Initial activation
and setting up" on page 63.
(8) Position the device on the magnet
carrier.
5 The magnet carrier is attached and
the device positioned on it.
EN
Operating Manual: XSD200 - Smoke Alarm Device with Radio Link
EN EN
6 Initial activation and
setting up
Always consider the following when
activating and setting up smoke alarm
devices:
f Activate devices in a radio group
one after another in their final
installation location.
f To prevent overlaying radio signals,
keep a minimum distance of 2 to
3 m between the devices.
f Establish a radio group of at least 2
and a maximum of 15 smoke alarm
devices connected together.
f Connect a maximum of 15 radio
groups together.
f After activating the device, the
splint pin is used as a tool for trig-
gering the radio button, and must
be kept readily available in the
vicinity of the device.
63
