Adhesive Mounting - pyrexx PX-I Betriebsanleitung

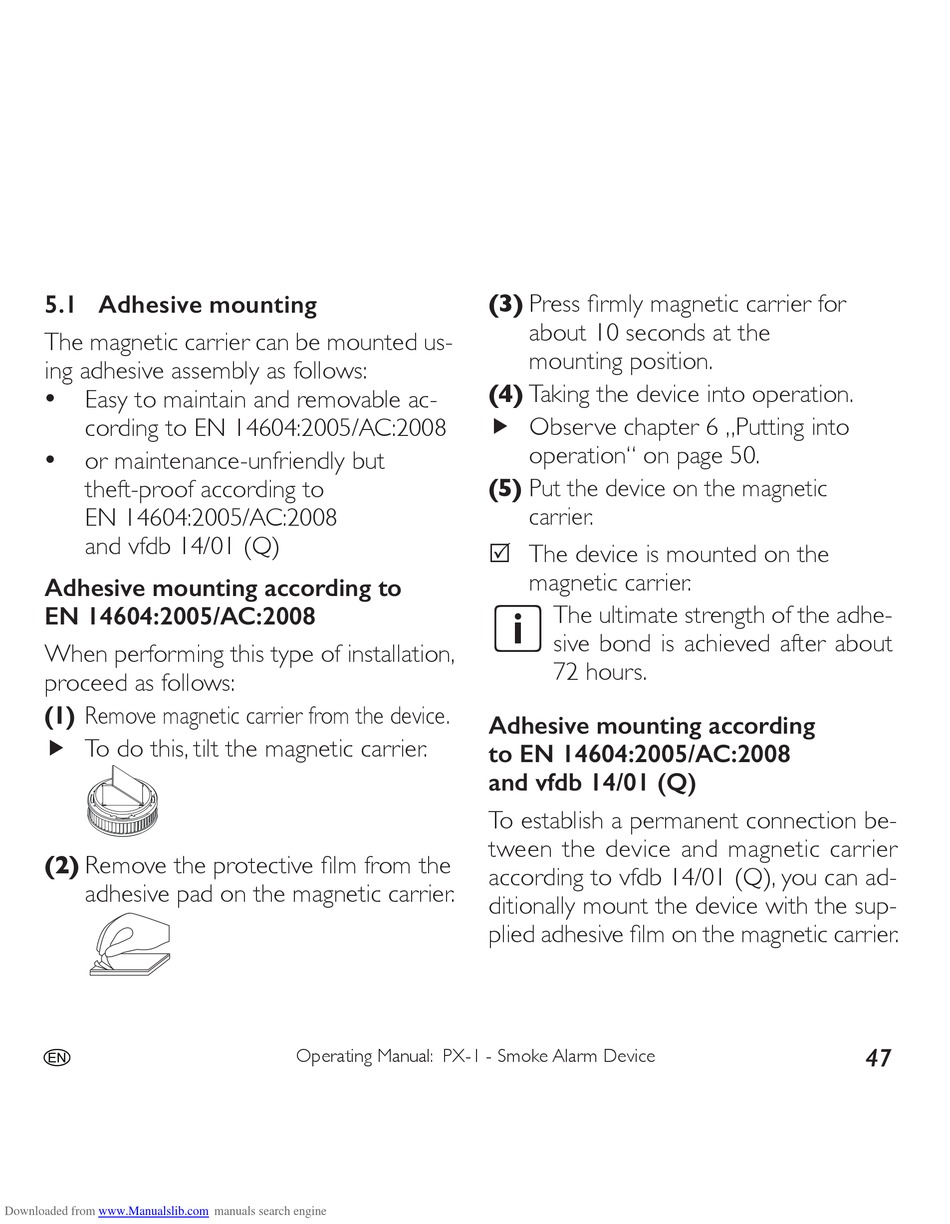

5.1 Adhesive mounting

The magnetic carrier can be mounted us-
ing adhesive assembly as follows:
Easy to maintain and removable ac-
•
cording to EN 14604:2005/AC:2008
or maintenance-unfriendly but
•
theft-proof according to
EN 14604:2005/AC:2008
and vfdb 14/01 (Q)
Adhesive mounting according to
EN 14604:2005/AC:2008
When performing this type of installation,
proceed as follows:
(1) Remove magnetic carrier from the device.
f To do this, tilt the magnetic carrier.
(2) Remove the protective film from the
adhesive pad on the magnetic carrier.
EN
Downloaded from www.Manualslib.com
Operating Manual: PX-1 - Smoke Alarm Device
manuals search engine
(3) Press firmly magnetic carrier for
about 10 seconds at the
mounting position.
(4) Taking the device into operation.
f Observe chapter 6 „Putting into
operation" on page 50.
(5) Put the device on the magnetic
carrier.
5 The device is mounted on the
magnetic carrier.
The ultimate strength of the adhe-
sive bond is achieved after about
72 hours.
Adhesive mounting according
to EN 14604:2005/AC:2008
and vfdb 14/01 (Q)
To establish a permanent connection be-
tween the device and magnetic carrier
according to vfdb 14/01 (Q), you can ad-
ditionally mount the device with the sup-
plied adhesive film on the magnetic carrier.
47
