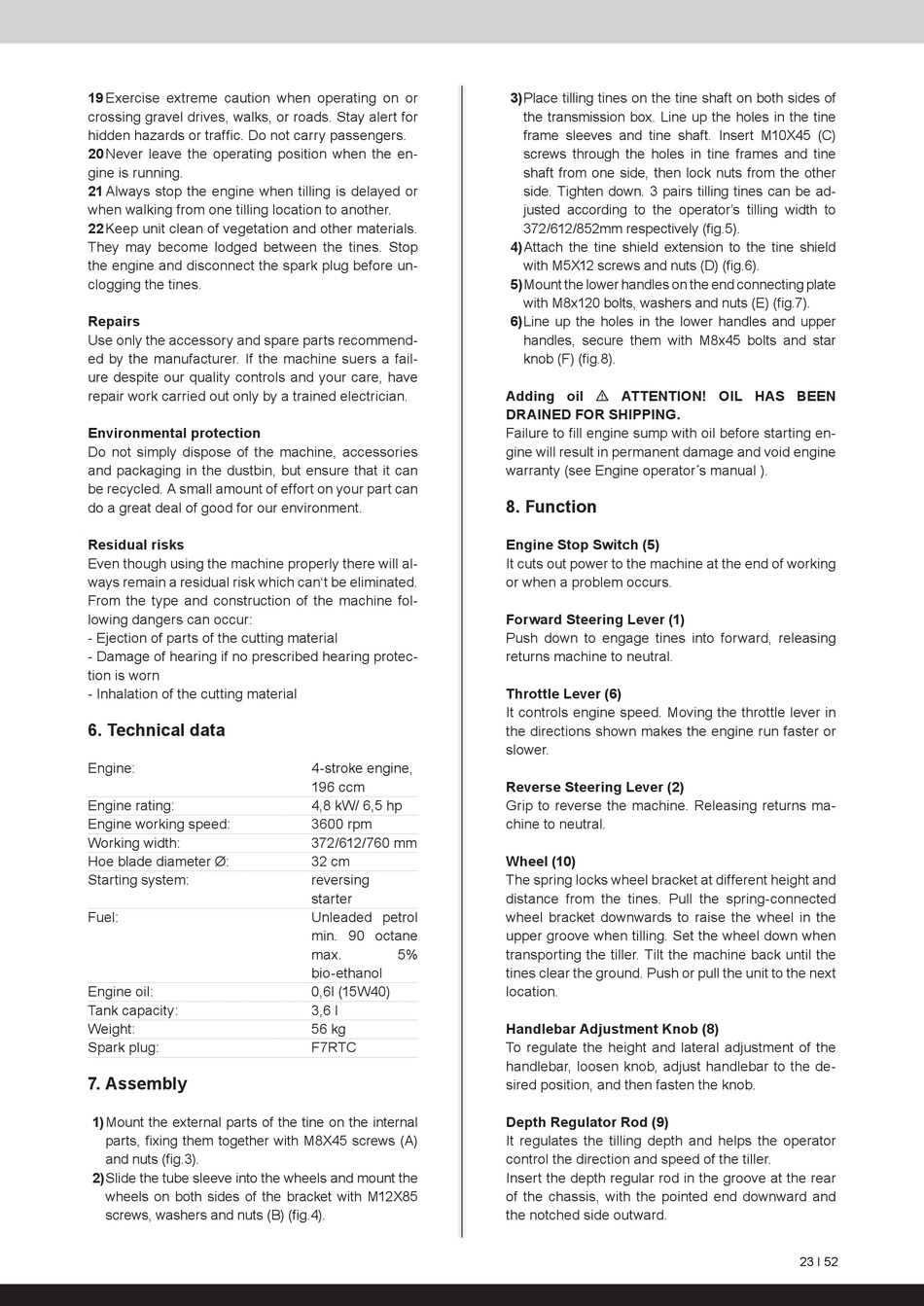

19 Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert for
hidden hazards or traffic. Do not carry passengers.
20 Never leave the operating position when the en-
gine is running.
21 Always stop the engine when tilling is delayed or
when walking from one tilling location to another.
22 Keep unit clean of vegetation and other materials.
They may become lodged between the tines. Stop
the engine and disconnect the spark plug before un-
clogging the tines.
Repairs
Use only the accessory and spare parts recommend-
ed by the manufacturer. If the machine suers a fail-
ure despite our quality controls and your care, have
repair work carried out only by a trained electrician.
Environmental protection
Do not simply dispose of the machine, accessories
and packaging in the dustbin, but ensure that it can
be recycled. A small amount of effort on your part can
do a great deal of good for our environment.
Residual risks
Even though using the machine properly there will al-
ways remain a residual risk which can't be eliminated.
From the type and construction of the machine fol-
lowing dangers can occur:
- Ejection of parts of the cutting material
- Damage of hearing if no prescribed hearing protec-
tion is worn
- Inhalation of the cutting material

6. Technical data

Engine:
Engine rating:
Engine working speed:
Working width:
Hoe blade diameter Ø:
Starting system:
Fuel:
Engine oil:
Tank capacity:
Weight:
Spark plug:

7. Assembly

1) Mount the external parts of the tine on the internal
parts, fixing them together with M8X45 screws (A)
and nuts (fig.3).
2) Slide the tube sleeve into the wheels and mount the
wheels on both sides of the bracket with M12X85
screws, washers and nuts (B) (fig.4).
4-stroke engine,
196 ccm
4,8 kW/ 6,5 hp
3600 rpm
372/612/760 mm
32 cm
reversing
starter
Unleaded petrol
min. 90 octane
max.
5%
bio-ethanol
0,6l (15W40)
3,6 l
56 kg
F7RTC
3) Place tilling tines on the tine shaft on both sides of
the transmission box. Line up the holes in the tine
frame sleeves and tine shaft. Insert M10X45 (C)
screws through the holes in tine frames and tine
shaft from one side, then lock nuts from the other
side. Tighten down. 3 pairs tilling tines can be ad-
justed according to the operator's tilling width to
372/612/852mm respectively (fig.5).
4) Attach the tine shield extension to the tine shield
with M5X12 screws and nuts (D) (fig.6).
5) Mount the lower handles on the end connecting plate
with M8x120 bolts, washers and nuts (E) (fig.7).
6) Line up the holes in the lower handles and upper
handles, secure them with M8x45 bolts and star
knob (F) (fig.8).
Adding oil m ATTENTION! OIL HAS BEEN
DRAINED FOR SHIPPING.
Failure to fill engine sump with oil before starting en-
gine will result in permanent damage and void engine
warranty (see Engine operator´s manual ).

8. Function

Engine Stop Switch (5)
It cuts out power to the machine at the end of working
or when a problem occurs.
Forward Steering Lever (1)
Push down to engage tines into forward, releasing
returns machine to neutral.
Throttle Lever (6)
It controls engine speed. Moving the throttle lever in
the directions shown makes the engine run faster or
slower.
Reverse Steering Lever (2)
Grip to reverse the machine. Releasing returns ma-
chine to neutral.
Wheel (10)
The spring locks wheel bracket at different height and
distance from the tines. Pull the spring-connected
wheel bracket downwards to raise the wheel in the
upper groove when tilling. Set the wheel down when
transporting the tiller. Tilt the machine back until the
tines clear the ground. Push or pull the unit to the next
location.
Handlebar Adjustment Knob (8)
To regulate the height and lateral adjustment of the
handlebar, loosen knob, adjust handlebar to the de-
sired position, and then fasten the knob.
Depth Regulator Rod (9)
It regulates the tilling depth and helps the operator
control the direction and speed of the tiller.
Insert the depth regular rod in the groove at the rear
of the chassis, with the pointed end downward and
the notched side outward.
23 І 52
23 І 52
