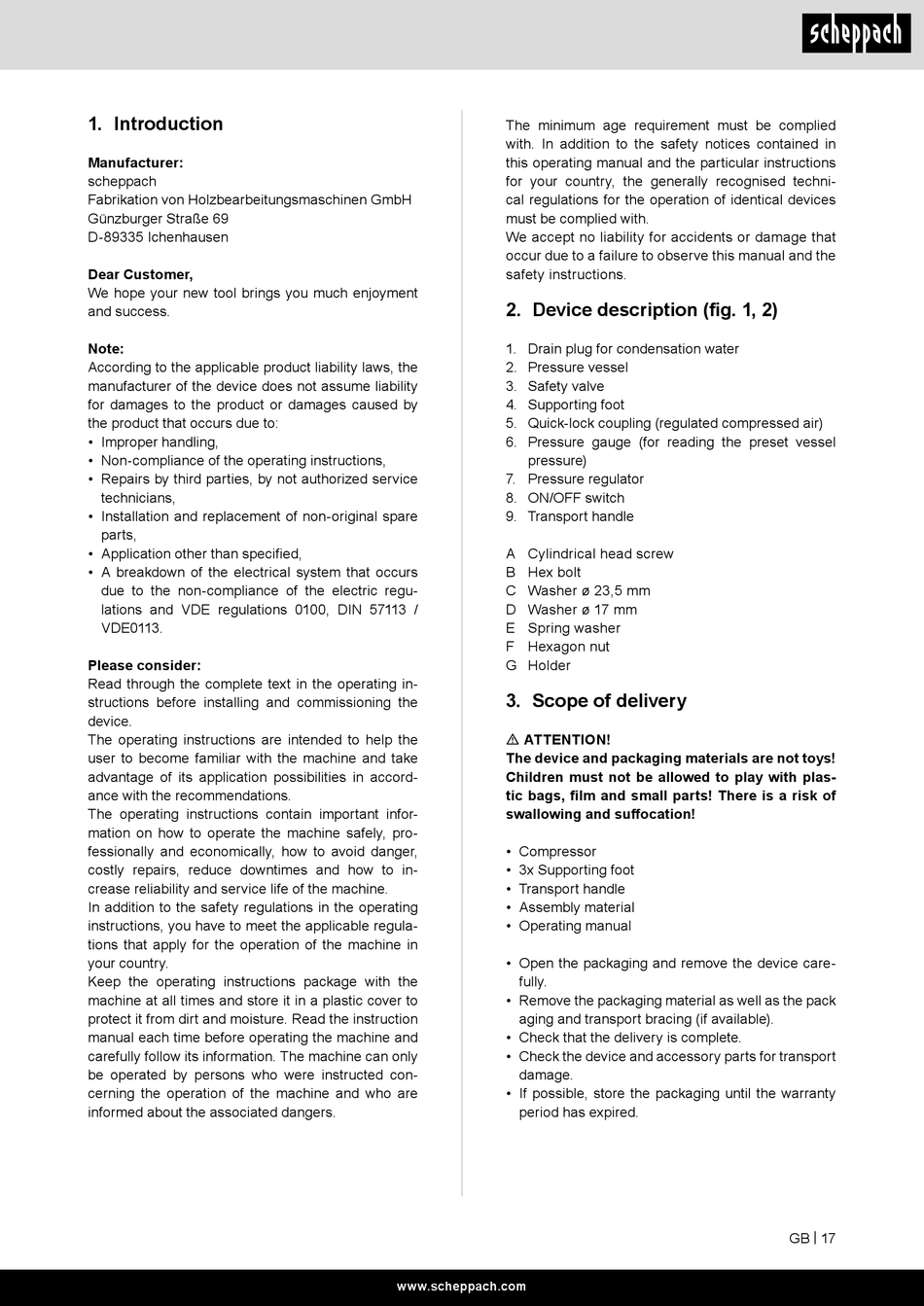

1. Introduction
Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We hope your new tool brings you much enjoyment
and success.
Note:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, by not authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
• A breakdown of the electrical system that occurs
due to the non-compliance of the electric regu-
lations and VDE regulations 0100, DIN 57113 /
VDE0113.
Please consider:
Read through the complete text in the operating in-
structions before installing and commissioning the
device.
The operating instructions are intended to help the
user to become familiar with the machine and take
advantage of its application possibilities in accord-
ance with the recommendations.
The operating instructions contain important infor-
mation on how to operate the machine safely, pro-
fessionally and economically, how to avoid danger,
costly repairs, reduce downtimes and how to in-
crease reliability and service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in
your country.
Keep the operating instructions package with the
machine at all times and store it in a plastic cover to
protect it from dirt and moisture. Read the instruction
manual each time before operating the machine and
carefully follow its information. The machine can only
be operated by persons who were instructed con-
cerning the operation of the machine and who are
informed about the associated dangers.
The minimum age requirement must be complied
with. In addition to the safety notices contained in
this operating manual and the particular instructions
for your country, the generally recognised techni-
cal regulations for the operation of identical devices
must be complied with.
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.

2. Device description (fig. 1, 2)

1. Drain plug for condensation water
2. Pressure vessel
3. Safety valve
4. Supporting foot
5. Quick-lock coupling (regulated compressed air)
6. Pressure gauge (for reading the preset vessel
pressure)
7. Pressure regulator
8. ON/OFF switch
9. Transport handle
A Cylindrical head screw
B Hex bolt
C Washer ø 23,5 mm
D Washer ø 17 mm
E Spring washer
F Hexagon nut
G Holder

3. Scope of delivery

m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
• Compressor
• 3x Supporting foot
• Transport handle
• Assembly material
• Operating manual
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
