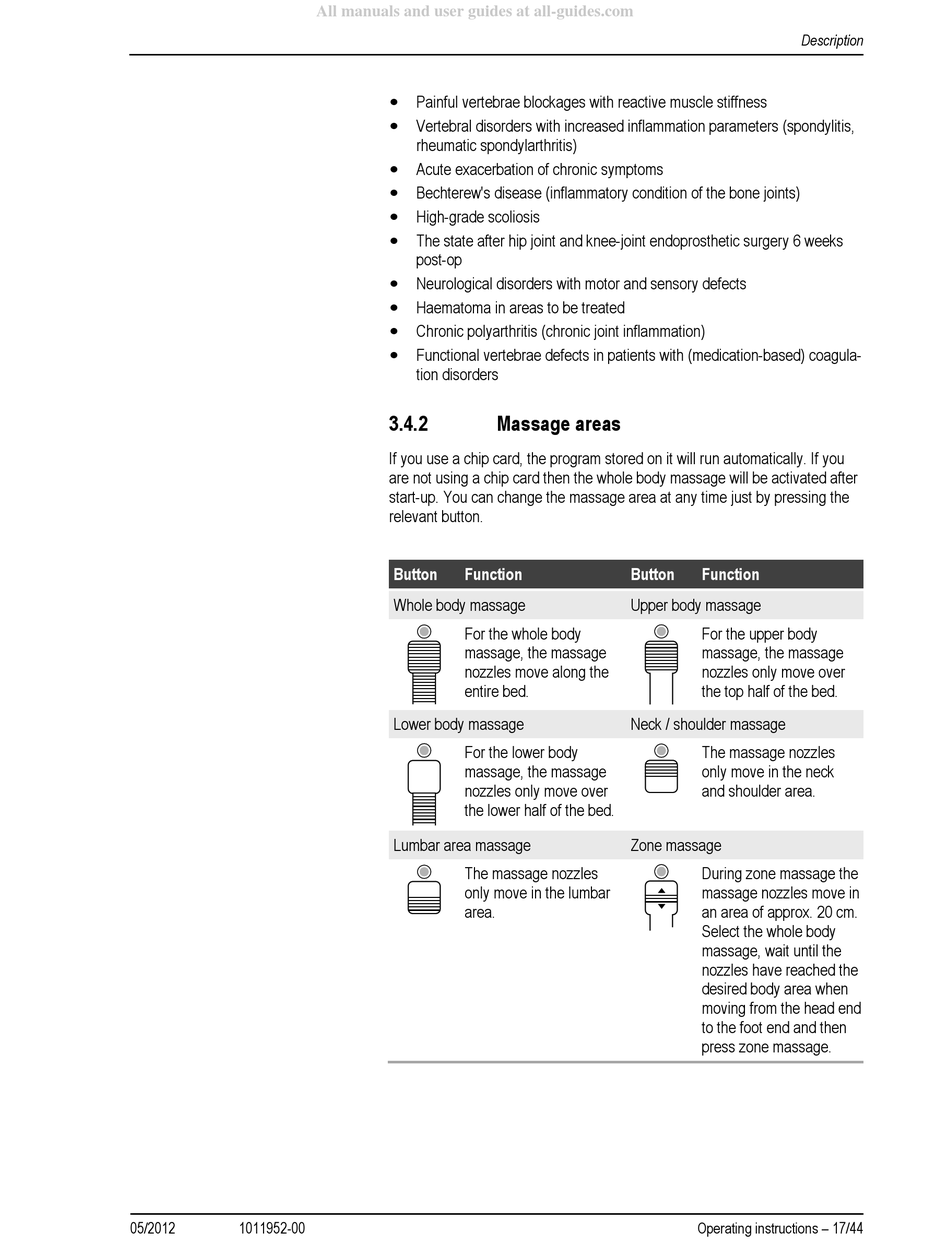

Massage Areas; Button Function - Wellsystem RELAX Gebrauchsanweisung

05/2012 1011952-00
All manuals and user guides at all-guides.com
Painful vertebrae blockages with reactive muscle stiffness

Vertebral disorders with increased inflammation parameters (spondylitis,

rheumatic spondylarthritis)
Acute exacerbation of chronic symptoms

Bechterew's disease (inflammatory condition of the bone joints)

High-grade scoliosis

The state after hip joint and knee-joint endoprosthetic surgery 6 weeks

post-op
Neurological disorders with motor and sensory defects

Haematoma in areas to be treated

Chronic polyarthritis (chronic joint inflammation)

Functional vertebrae defects in patients with (medication-based) coagula-

tion disorders
3.4.2
If you use a chip card, the program stored on it will run automatically. If you
are not using a chip card then the whole body massage will be activated after
start-up. You can change the massage area at any time just by pressing the
relevant button.
Button Function
Whole body massage
For the whole body
massage, the massage
nozzles move along the
entire bed.
Lower body massage
For the lower body
massage, the massage
nozzles only move over
the lower half of the bed.
Lumbar area massage
The massage nozzles
only move in the lumbar
area.

Massage areas

Button
Upper body massage
Neck / shoulder massage
Zone massage
Description
Function
For the upper body
massage, the massage
nozzles only move over
the top half of the bed.
The massage nozzles
only move in the neck
and shoulder area.
During zone massage the
massage nozzles move in
an area of approx. 20 cm.
Select the whole body
massage, wait until the
nozzles have reached the
desired body area when
moving from the head end
to the foot end and then
press zone massage.
Operating instructions – 17/44
