Plant changeover
Configure the dispenser based on the plant spacing re-
quired (see "Plant spacing range" and "Arrangement of
the drilling cups").
NOTICE
To prevent damage to the transplant unit transmis-
sion, use the driving wheel to rotate the dispenser.
Proceed as outlined below.

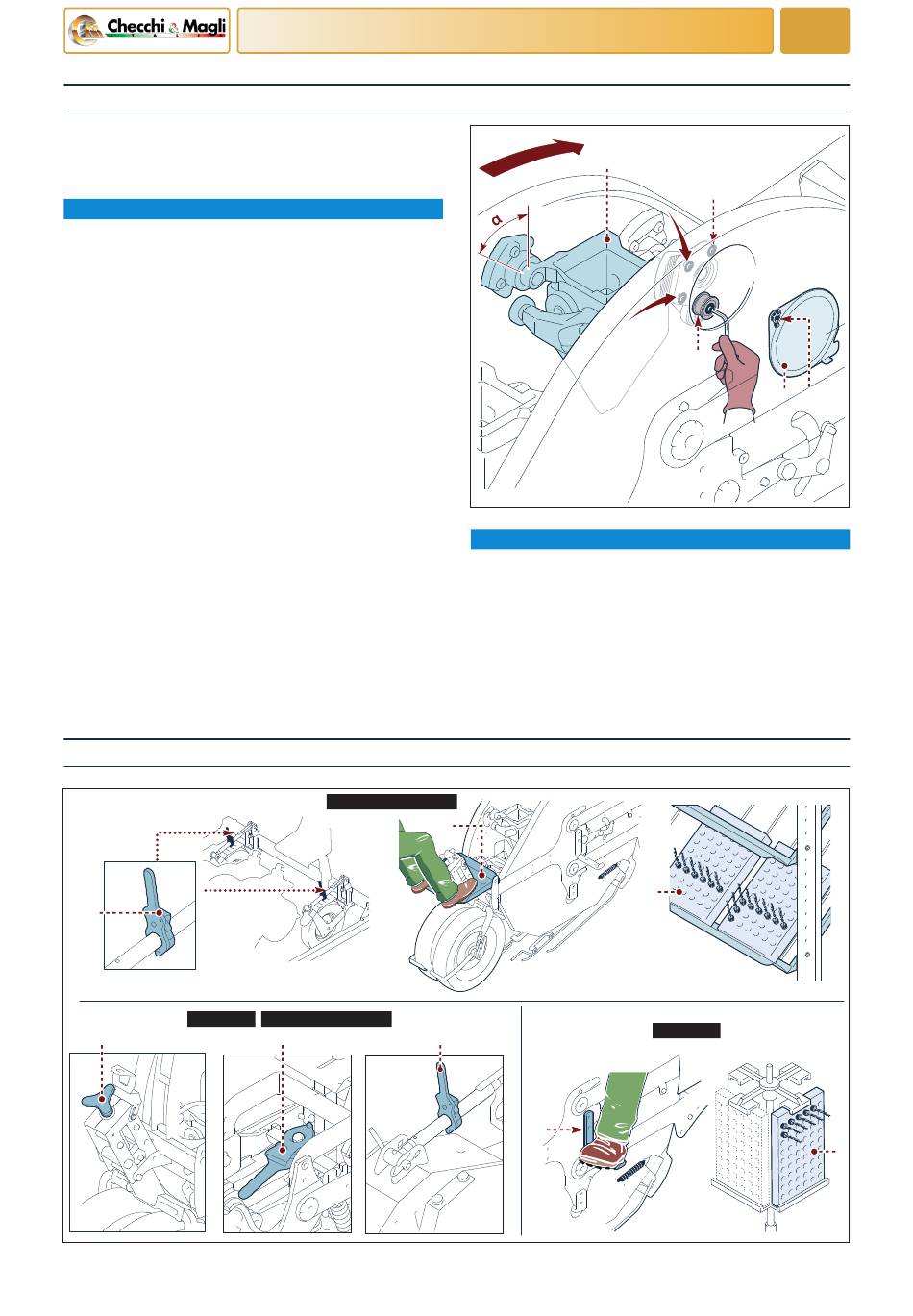

1) Lift the work vehicle slightly off the ground.
2) Loosen the screw (A).
3) Turn the casing (B).
4) Rotate the dispenser until the cup fastening screws
are visible.
5) Undo the screws (C).
6) Repeat the same operations on the opposite side of
the dispenser.
7) Remove the roll (D).
8) Remove the cup (E).
To remove any phasing units, carry out the same opera-
tions as described for removing the drilling cup.
For the assembly, carry out the same operations as for
disassembly but proceeding in reverse order.
Planting procedure
D
WOLF PRO WOLF PRO COMPACT
A
UN41 0797NQ
English language
INFORMATION FOR USE
WOLF PRO COMPACT
F
B C
23
E
UN41 0796NQ
NOTICE
When assembling maintain the position of the roll
and the tilt (α) of the drilling cup holders with respect
to the dispenser rotation direction.
Always fit the first cup in the position on the dispens-
er marked with (1).
F
6
C
D
A
B
E
WOLF PRO
Use and maintenance
E
