Proceed as outlined below.

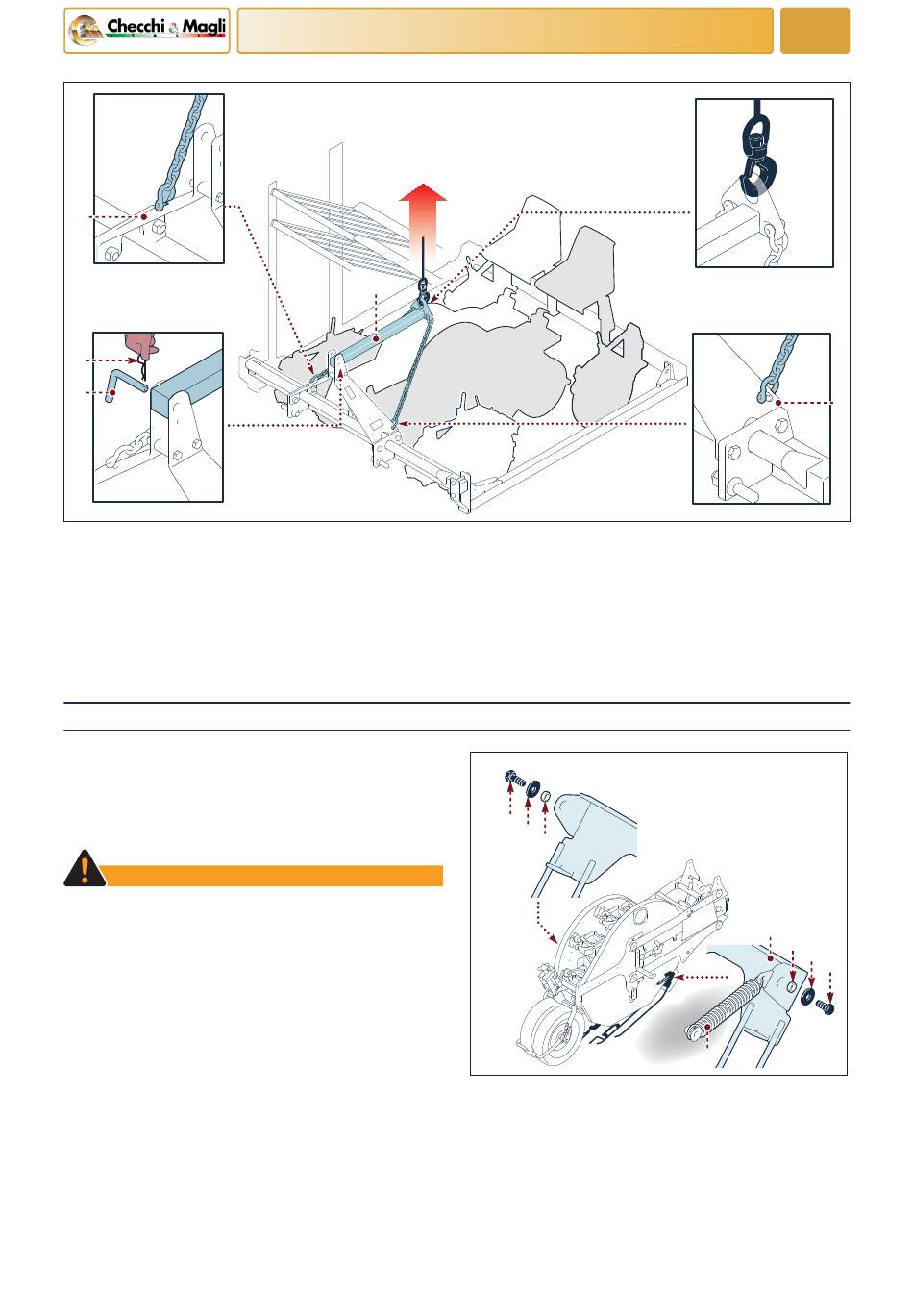

1) Use the specific tool (A) provided with the work vehi-
cle for lifting.
2) Strap up the work vehicle as shown in the figure.
Installing the plastic mulch pressing skid
The plastic mulch sheet pressure skid only needs to be
fitted if you are laying plastic mulch sheets; its task is to
keep the sheets fitted tightly against the ground when
the drilling cup moves in and out of the soil.
WARNING
Secure the work vehicle in position (lifted off the
ground) with external means (trestles, etc.).
Do not stand under the hoisted machine unless it is
suitably secured in position.
Proceed as outlined below.
1) Lift the work vehicle off the ground.
2) Position the skid (A) aligned with the respective holes
in the casing.
3) Position the bushings (B).
4) Position the washers (C).
5) Tighten the screws (D - E).
6) Attach the spring (F).
7) Repeat the same operations to install the plastic
mulch sheet pressure skid on the other planting
units.
