For hitching, proceed as outlined below.
1) Position the work vehicle on flat, solid ground in a
risk-free area.
2) Move the tractor so that it is positioned near the work
vehicle lift frame.
3) Align the arms of the lifting unit with the coupling
points on the work vehicle.
4) Switch off the tractor engine and remove the ignition
key.
5) Turn the tie rods (A) to adjust the height of the lift
arms (B) (see tractor instruction manual).
6) Insert the pins (C) into the lift arms and fit in the lock
pins (D).
7) Turn the tie-rod (E) to adjust the space between the
tie-rod and the upper coupling (F) on the support
frame.

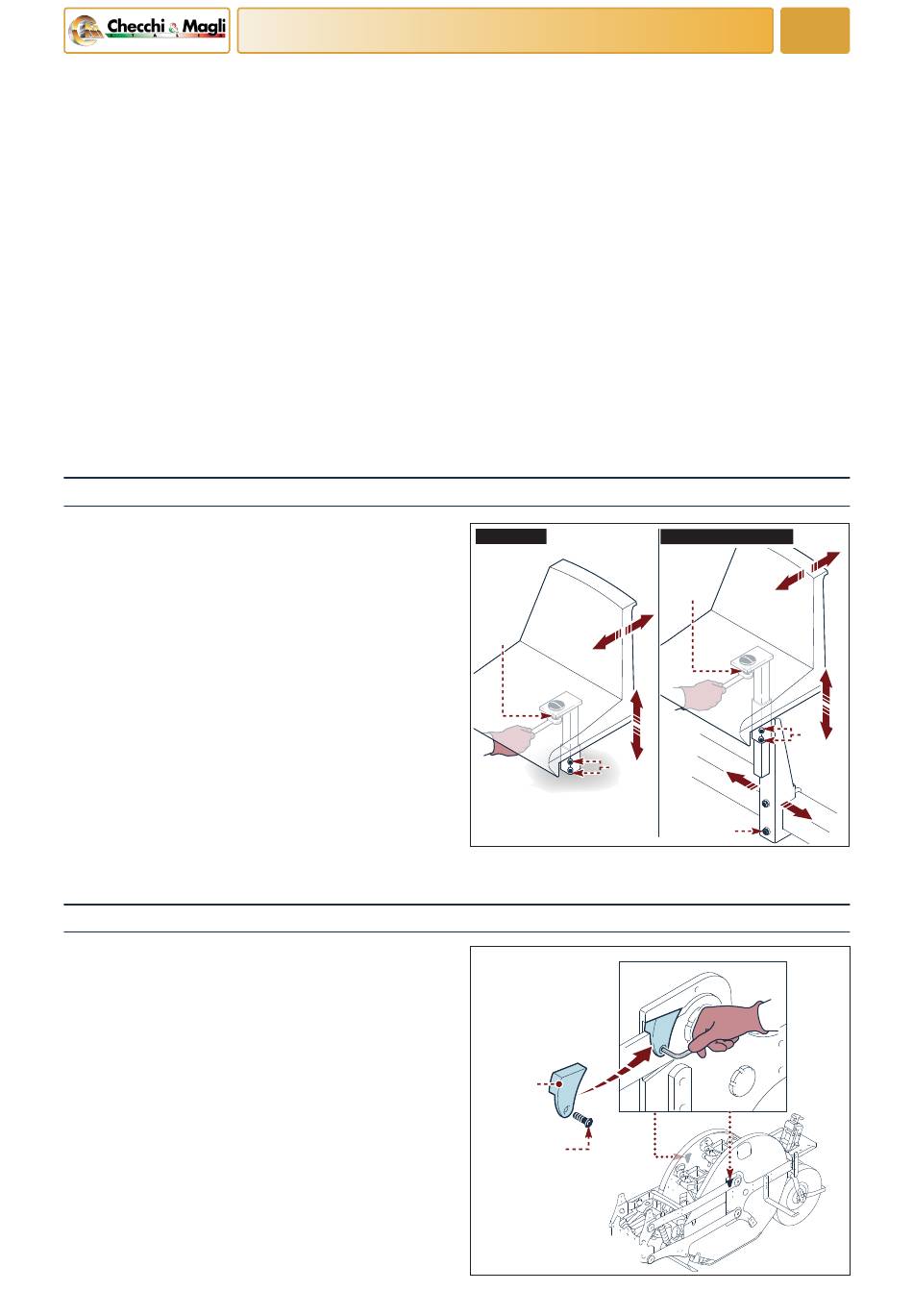

Seat positioning
Poor work posture will tire the operator and could lead
to mistakes being made; therefore, before starting work,
adjust the seat and secure it in the position that offers
maximum comfort.
Proceed as outlined below.
1) Loosen the screws (B) and adjust the seat height.
2) Tighten the screws to secure the seat in the right po-
sition.
3) Loosen the nut (A) to move the seat lengthways in
relation to the vehicle.
4) Tighten the nut to secure the seat in the right posi-
tion.
5) Loosen the screws (C) to move the seat at right an-
gles to the vehicle.
6) Tighten the screws to secure the seat in the right po-
sition.
Disabling the planting unit
The operation is used (during planting) to suspend
planting in one or more planting units.
Proceed as outlined below.
1) Lift the planting unit.
2) Insert the locking element (A) as shown in the fig-
ure.
3) Tighten the screw (B).
4) Repeat the same operations to insert the locking ele-
ment on the opposite side of the planting unit.
English language
INFORMATION FOR USE
8) Insert the pin (G) and the lock pin (H).
9) Adjust the tie-rod (E) so that the work vehicle is paral-
lel with the ground.
For unhitching, proceed as outlined below.
1) Select an area with flat, solid ground to park the work
vehicle - tractor.
2) Using the tractor's controls, lower the work vehicle to
the ground.
3) Switch off the tractor engine and remove the ignition
key from the dashboard.
4) Take out the lock pin (H) and remove the pin (G).
5) Slide out the lock pins (D) and remove the lift arms
(B) from the work vehicle's coupling points.
