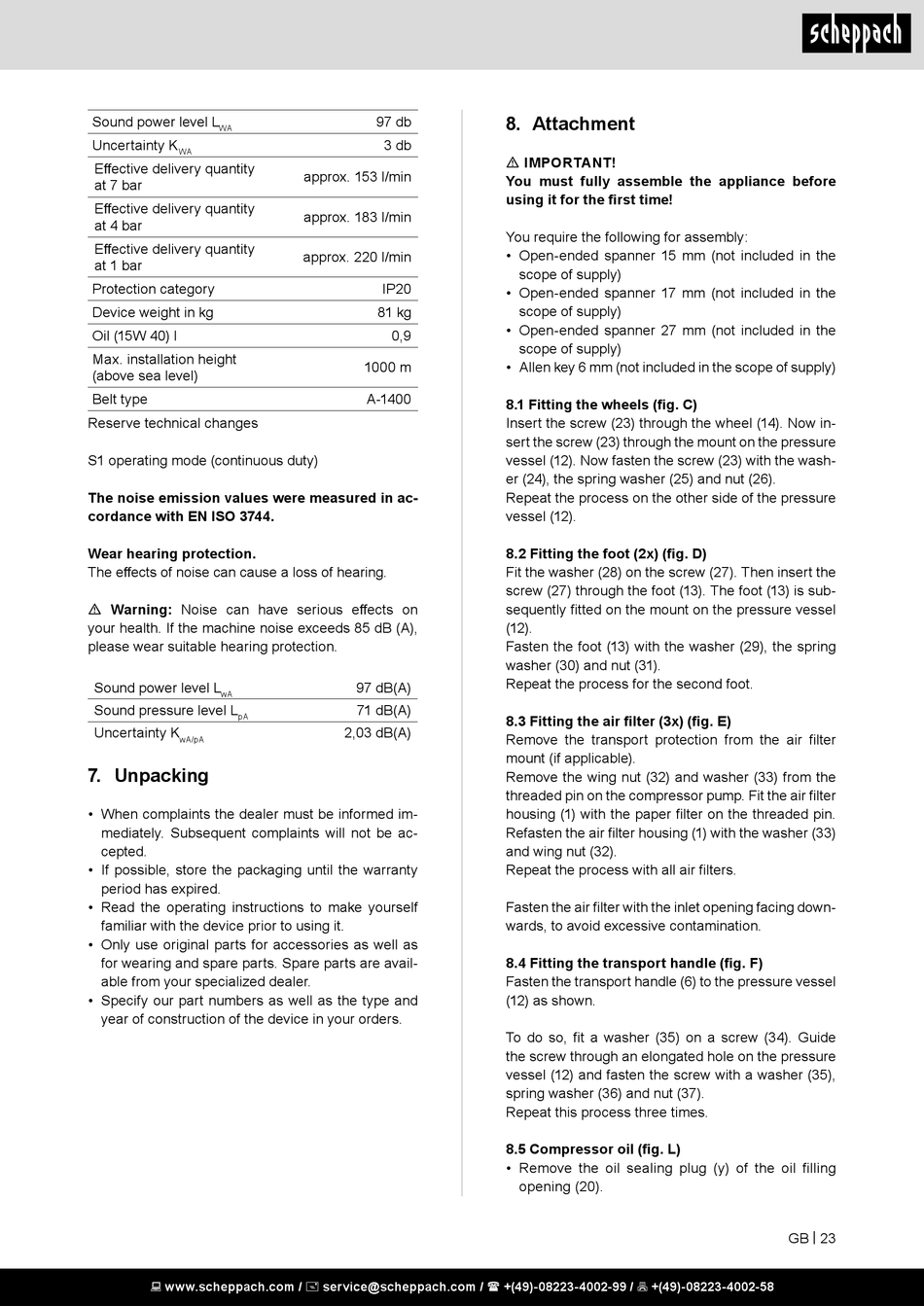

Unpacking; Attachment - Scheppach 5906136901 Original Bedienungsanleitung

Sound power level L
WA
Uncertainty K
WA
Effective delivery quantity
at 7 bar
Effective delivery quantity
at 4 bar
Effective delivery quantity
at 1 bar
Protection category
Device weight in kg
Oil (15W 40) l
Max. installation height
(above sea level)
Belt type
Reserve technical changes
S1 operating mode (continuous duty)
The noise emission values were measured in ac-
cordance with EN ISO 3744.
Wear hearing protection.
The effects of noise can cause a loss of hearing.
m Warning: Noise can have serious effects on
your health. If the machine noise exceeds 85 dB (A),
please wear suitable hearing protection.
Sound power level L
wA
Sound pressure level L
pA
Uncertainty K
wA/pA

7. Unpacking

• When complaints the dealer must be informed im-
mediately. Subsequent complaints will not be ac-
cepted.
• If possible, store the packaging until the warranty
period has expired.
• Read the operating instructions to make yourself
familiar with the device prior to using it.
• Only use original parts for accessories as well as
for wearing and spare parts. Spare parts are avail-
able from your specialized dealer.
• Specify our part numbers as well as the type and
year of construction of the device in your orders.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
97 db
3 db
approx. 153 l/min
approx. 183 l/min
approx. 220 l/min
IP20
81 kg
0,9
1000 m
A-1400
97 dB(A)
71 dB(A)
2,03 dB(A)

8. Attachment

m IMPORTANT!
You must fully assemble the appliance before
using it for the first time!
You require the following for assembly:
• Open-ended spanner 15 mm (not included in the
scope of supply)
• Open-ended spanner 17 mm (not included in the
scope of supply)
• Open-ended spanner 27 mm (not included in the
scope of supply)
• Allen key 6 mm (not included in the scope of supply)
8.1 Fitting the wheels (fig. C)
Insert the screw (23) through the wheel (14). Now in-
sert the screw (23) through the mount on the pressure
vessel (12). Now fasten the screw (23) with the wash-
er (24), the spring washer (25) and nut (26).
Repeat the process on the other side of the pressure
vessel (12).
8.2 Fitting the foot (2x) (fig. D)
Fit the washer (28) on the screw (27). Then insert the
screw (27) through the foot (13). The foot (13) is sub-
sequently fitted on the mount on the pressure vessel
(12).
Fasten the foot (13) with the washer (29), the spring
washer (30) and nut (31).
Repeat the process for the second foot.
8.3 Fitting the air filter (3x) (fig. E)
Remove the transport protection from the air filter
mount (if applicable).
Remove the wing nut (32) and washer (33) from the
threaded pin on the compressor pump. Fit the air filter
housing (1) with the paper filter on the threaded pin.
Refasten the air filter housing (1) with the washer (33)
and wing nut (32).
Repeat the process with all air filters.
Fasten the air filter with the inlet opening facing down-
wards, to avoid excessive contamination.
8.4 Fitting the transport handle (fig. F)
Fasten the transport handle (6) to the pressure vessel
(12) as shown.
To do so, fit a washer (35) on a screw (34). Guide
the screw through an elongated hole on the pressure
vessel (12) and fasten the screw with a washer (35),
spring washer (36) and nut (37).
Repeat this process three times.
8.5 Compressor oil (fig. L)
• Remove the oil sealing plug (y) of the oil filling
opening (20).
GB | 23
