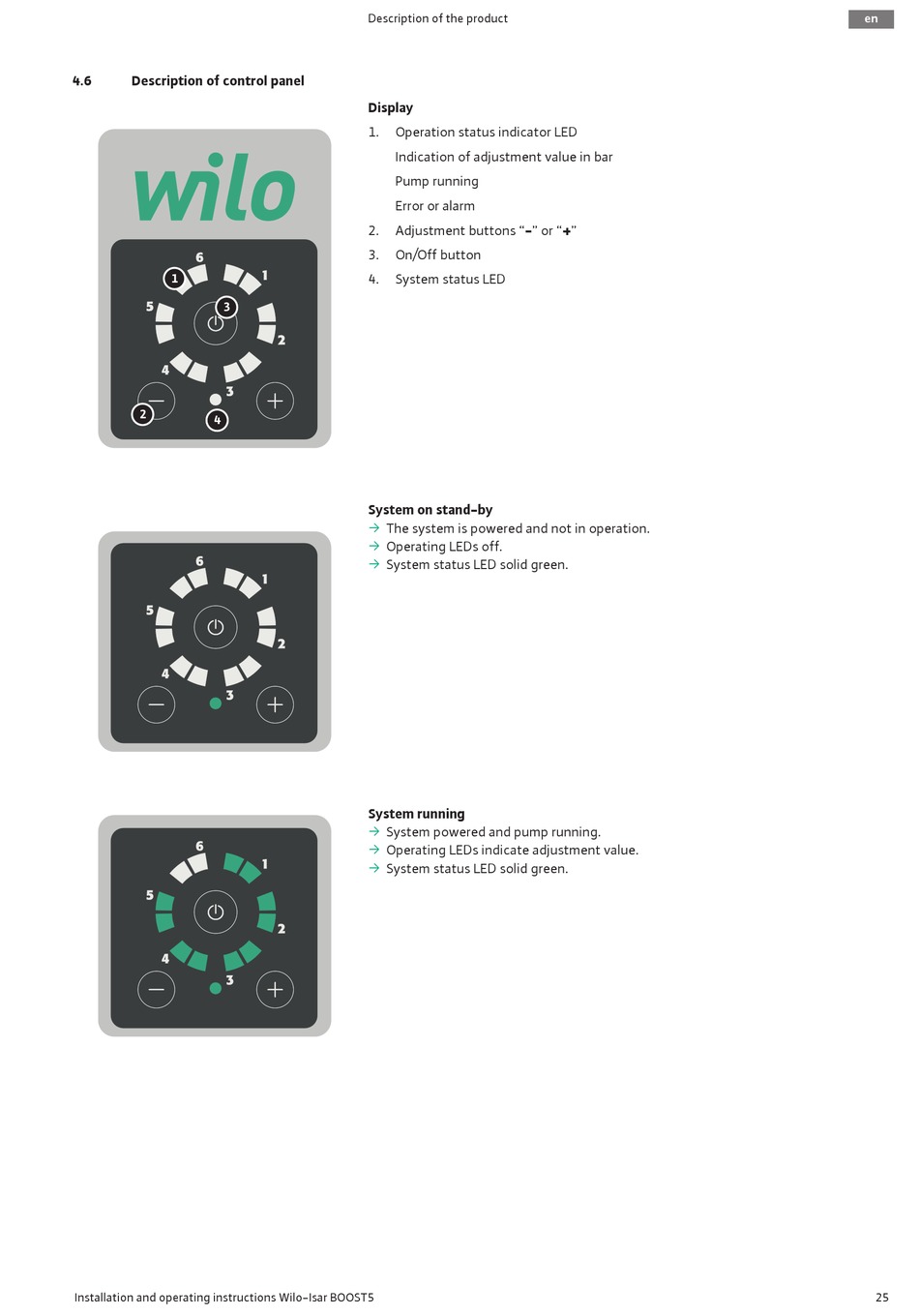

Description of control panel

1
3
2
4
Installation and operating instructions Wilo-Isar BOOST5
Description of the product
Display
1. Operation status indicator LED
Indication of adjustment value in bar
Pump running
Error or alarm
2. Adjustment buttons "-" or "+"
3. On/Off button
4. System status LED
System on stand-by
ƒ
The system is powered and not in operation.
ƒ
Operating LEDs off.
ƒ
System status LED solid green.
System running
ƒ
System powered and pump running.
ƒ
Operating LEDs indicate adjustment value.
ƒ
System status LED solid green.
