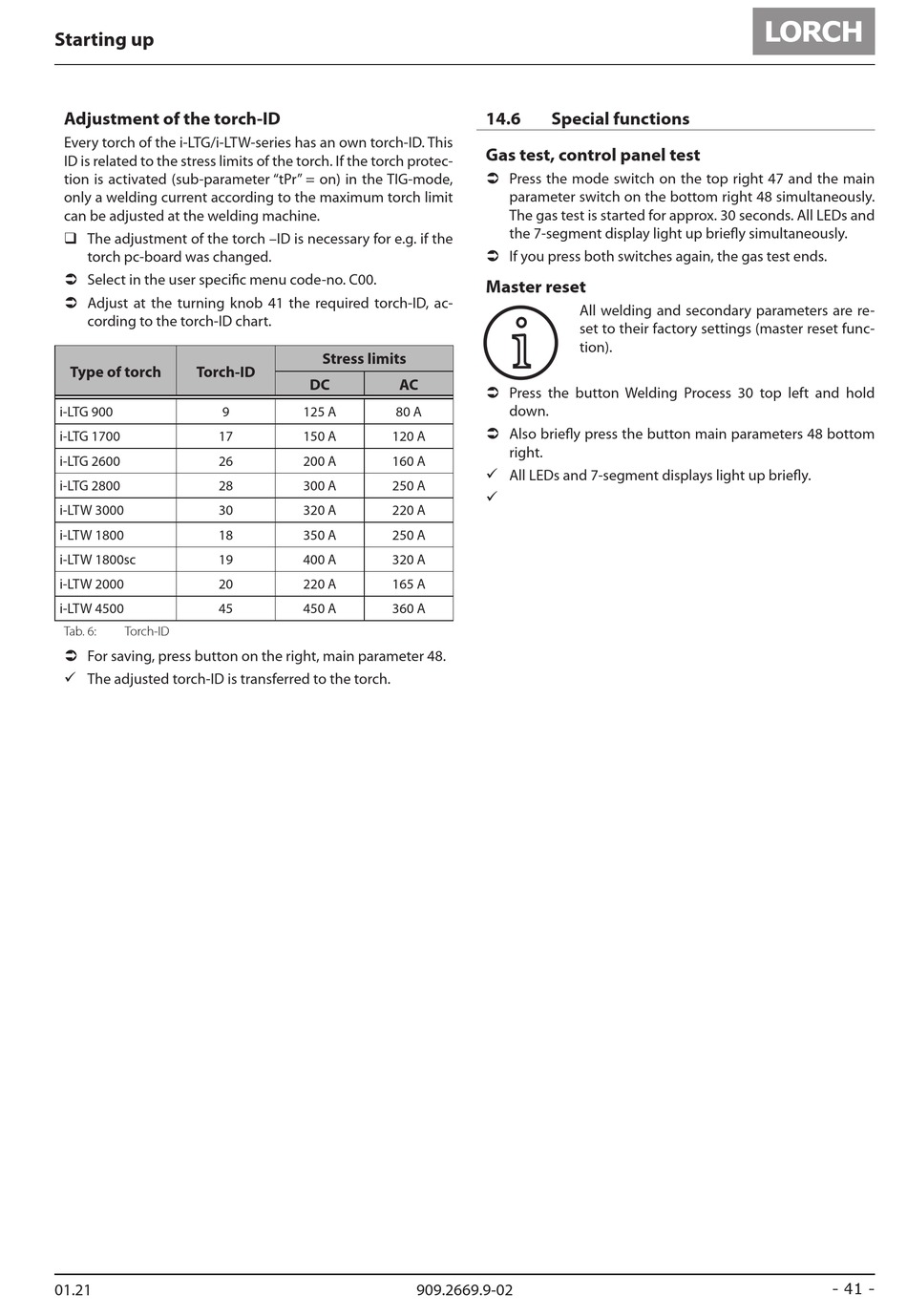

Starting up
Adjustment of the torch-ID
Every torch of the i-LTG/i-LTW-series has an own torch-ID. This
ID is related to the stress limits of the torch. If the torch protec-
tion is activated (sub-parameter "tPr" = on) in the TIG-mode,
only a welding current according to the maximum torch limit
can be adjusted at the welding machine.
‰ The adjustment of the torch –ID is necessary for e.g. if the
torch pc-board was changed.
 Select in the user specific menu code-no. C00.
 Adjust at the turning knob 41 the required torch-ID, ac-
cording to the torch-ID chart.
Type of torch Torch-ID
i-LTG 900 9
i-LTG 1700 17
i-LTG 2600 26
i-LTG 2800 28
i-LTW 3000 30
i-LTW 1800 18
i-LTW 1800sc 19
i-LTW 2000 20
i-LTW 4500 45
Tab. 6: Torch-ID
 For saving, press button on the right, main parameter 48.
9 The adjusted torch-ID is transferred to the torch.
01.21
Stress limits
DC AC
125 A 80 A
150 A 120 A
200 A 160 A
300 A 250 A
320 A 220 A
350 A 250 A
400 A 320 A
220 A 165 A
450 A 360 A
909.2669.9-02
14.6

Special functions

Gas test, control panel test
 Press the mode switch on the top right 47 and the main
parameter switch on the bottom right 48 simultaneously.
The gas test is started for approx. 30 seconds. All LEDs and
the 7-segment display light up briefly simultaneously.
 If you press both switches again, the gas test ends.
Master reset
All welding and secondary parameters are re-
i i
set to their factory settings (master reset func-
tion).
 Press the button Welding Process 30 top left and hold
down.
 Also briefly press the button main parameters 48 bottom
right.
9 All LEDs and 7-segment displays light up briefly.
9
