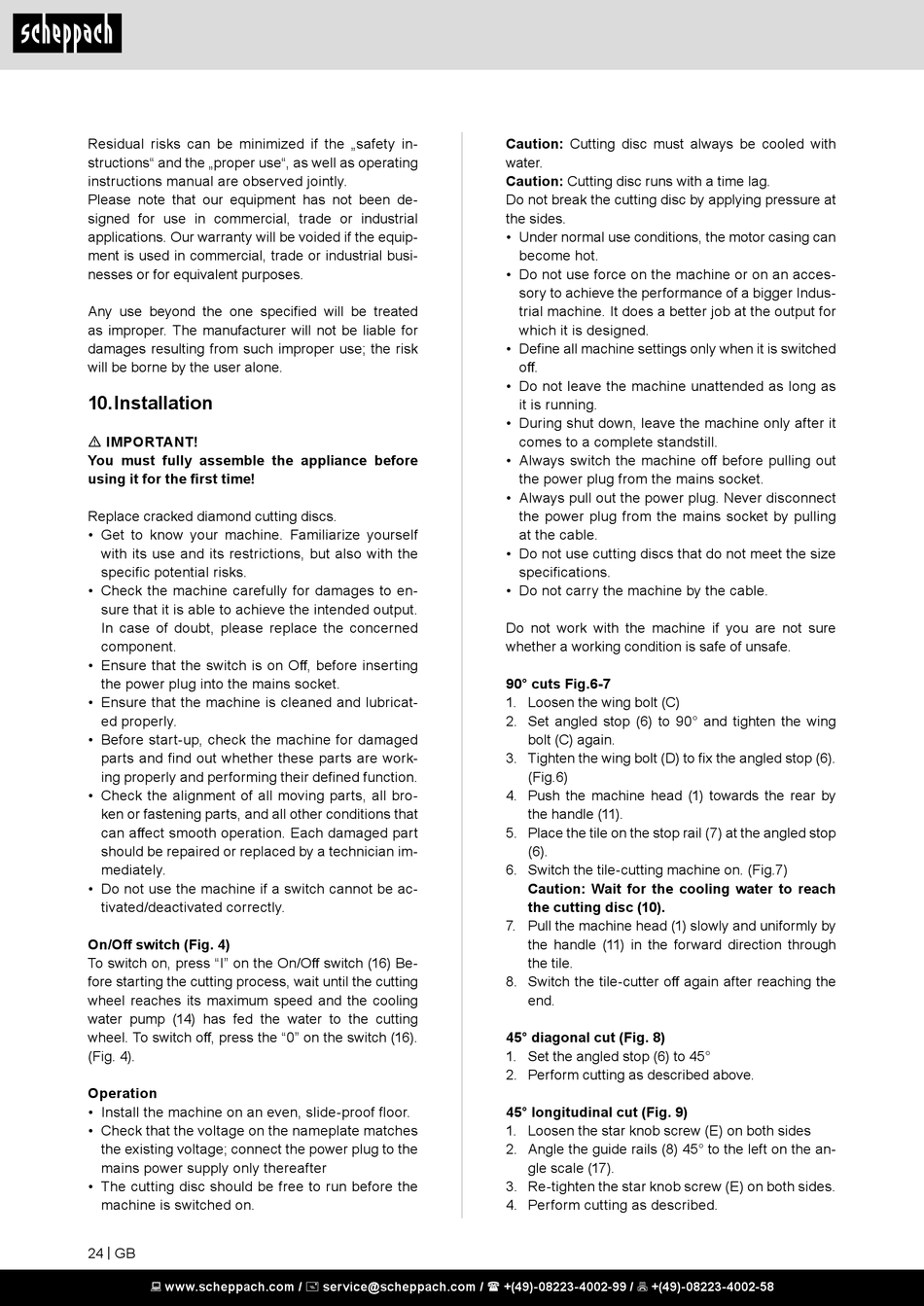

Residual risks can be minimized if the „safety in-
structions" and the „proper use", as well as operating
instructions manual are observed jointly.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the equip-
ment is used in commercial, trade or industrial busi-
nesses or for equivalent purposes.
Any use beyond the one specified will be treated
as improper. The manufacturer will not be liable for
damages resulting from such improper use; the risk
will be borne by the user alone.

10. Installation

m IMPORTANT!
You must fully assemble the appliance before
using it for the first time!
Replace cracked diamond cutting discs.
• Get to know your machine. Familiarize yourself
with its use and its restrictions, but also with the
specific potential risks.
• Check the machine carefully for damages to en-
sure that it is able to achieve the intended output.
In case of doubt, please replace the concerned
component.
• Ensure that the switch is on Off, before inserting
the power plug into the mains socket.
• Ensure that the machine is cleaned and lubricat-
ed properly.
• Before start-up, check the machine for damaged
parts and find out whether these parts are work-
ing properly and performing their defined function.
• Check the alignment of all moving parts, all bro-
ken or fastening parts, and all other conditions that
can affect smooth operation. Each damaged part
should be repaired or replaced by a technician im-
mediately.
• Do not use the machine if a switch cannot be ac-
tivated/deactivated correctly.
On/Off switch (Fig. 4)
To switch on, press "I" on the On/Off switch (16) Be-
fore starting the cutting process, wait until the cutting
wheel reaches its maximum speed and the cooling
water pump (14) has fed the water to the cutting
wheel. To switch off, press the "0" on the switch (16).
(Fig. 4).
Operation
• Install the machine on an even, slide-proof floor.
• Check that the voltage on the nameplate matches
the existing voltage; connect the power plug to the
mains power supply only thereafter
• The cutting disc should be free to run before the
machine is switched on.
24 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Caution: Cutting disc must always be cooled with
water.
Caution: Cutting disc runs with a time lag.
Do not break the cutting disc by applying pressure at
the sides.
• Under normal use conditions, the motor casing can
become hot.
• Do not use force on the machine or on an acces-
sory to achieve the performance of a bigger Indus-
trial machine. It does a better job at the output for
which it is designed.
• Define all machine settings only when it is switched
off.
• Do not leave the machine unattended as long as
it is running.
• During shut down, leave the machine only after it
comes to a complete standstill.
• Always switch the machine off before pulling out
the power plug from the mains socket.
• Always pull out the power plug. Never disconnect
the power plug from the mains socket by pulling
at the cable.
• Do not use cutting discs that do not meet the size
specifications.
• Do not carry the machine by the cable.
Do not work with the machine if you are not sure
whether a working condition is safe of unsafe.
90° cuts Fig.6-7
1. Loosen the wing bolt (C)
2. Set angled stop (6) to 90° and tighten the wing
bolt (C) again.
3. Tighten the wing bolt (D) to fix the angled stop (6).
(Fig.6)
4. Push the machine head (1) towards the rear by
the handle (11).
5. Place the tile on the stop rail (7) at the angled stop
(6).
6. Switch the tile-cutting machine on. (Fig.7)
Caution: Wait for the cooling water to reach
the cutting disc (10).
7. Pull the machine head (1) slowly and uniformly by
the handle (11) in the forward direction through
the tile.
8. Switch the tile-cutter off again after reaching the
end.
45° diagonal cut (Fig. 8)
1. Set the angled stop (6) to 45°
2. Perform cutting as described above.
45° longitudinal cut (Fig. 9)
1. Loosen the star knob screw (E) on both sides
2. Angle the guide rails (8) 45° to the left on the an-
gle scale (17).
3. Re-tighten the star knob screw (E) on both sides.
4. Perform cutting as described.
