Fitting the flywheel

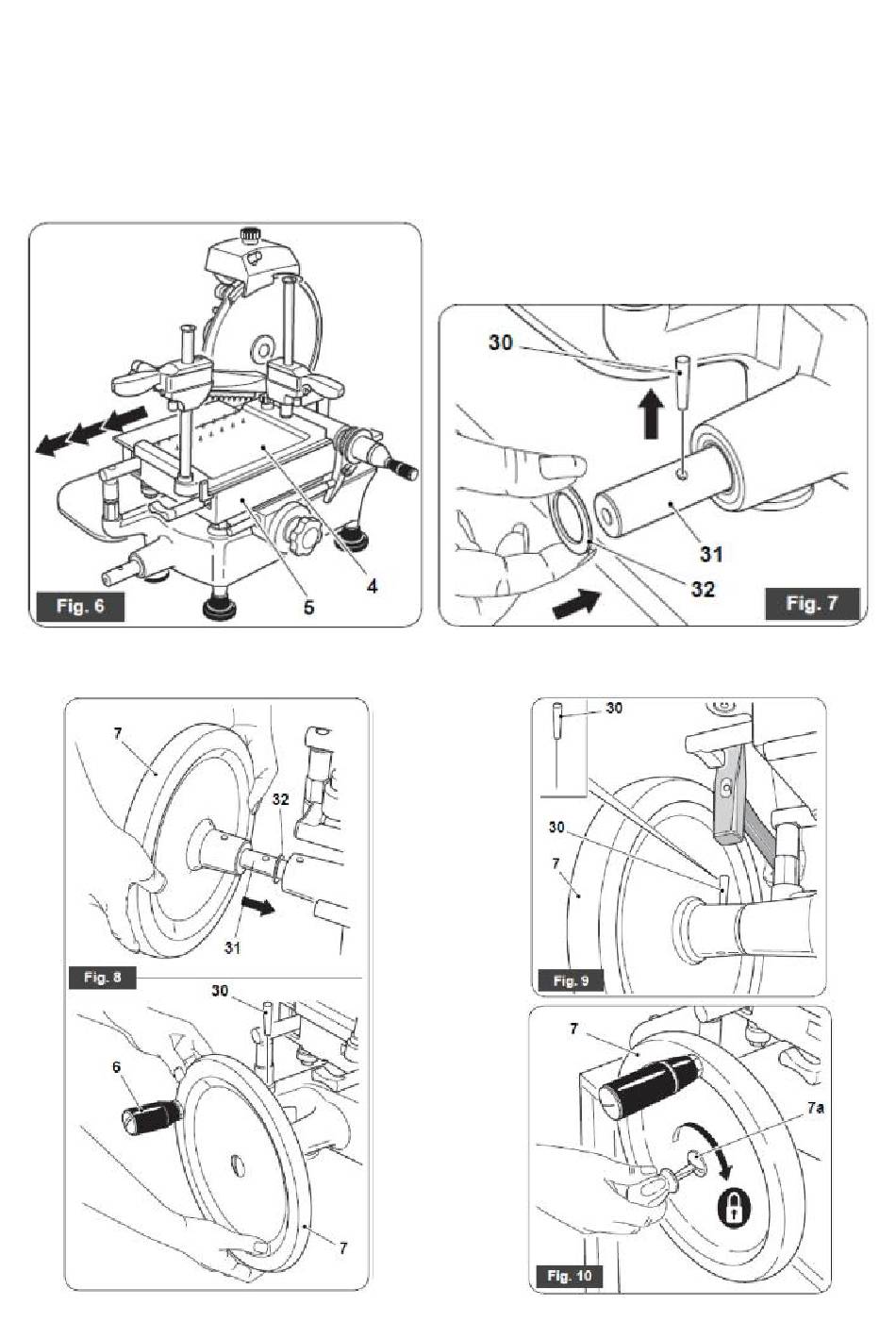

In order to facilitate transport, the flywheel is delivered unattached to the slicer. In order to fit, please proceed
as follows: move the carriage as near to the operator as possible; remove the taper pin (30) from the
flywheel shaft (31).
Use a hammer to hit the taper pin (30) on its smaller diameter.
Fit the shim (32) to the flywheel shaft (31); insert the flywheel (7) so that the operating handle (6) is
positioned above and to the left of the axis of the taper pin hole (fig. 8); insert the taper pin (30) in the hole of
the sleeve;
use a hammer to insert the taper pin (30) fully; tighten the screw (7a).
