Assembly instructions
DO IT 4 desk system
These assembly instructions include all the information needed to assemble
and reconfigure the DO IT 4 range.
The individual steps are numbered as required, and the different screw and
spanner sizes are given.

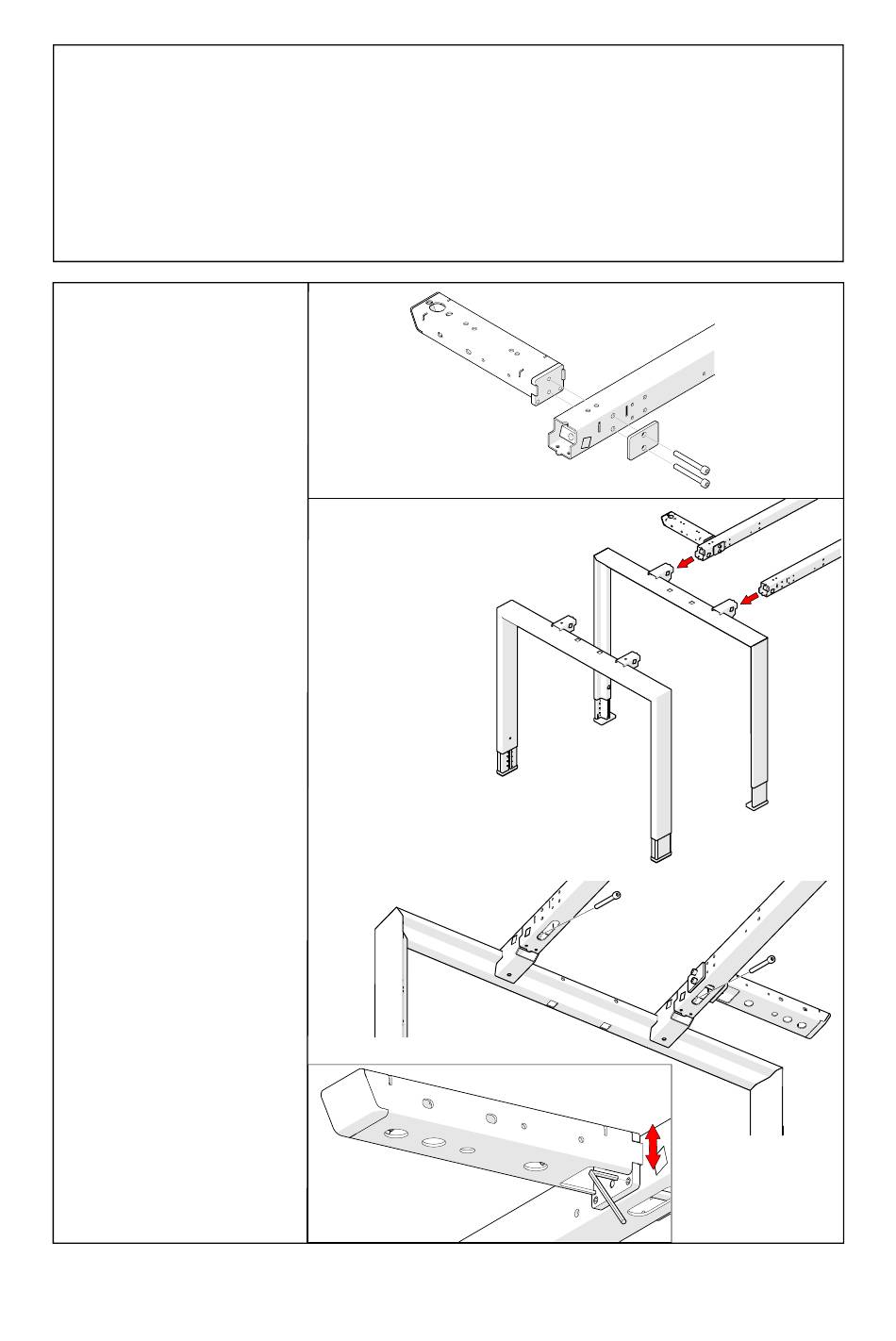

1.
Fitting the bracket
and side section
Fit the bracket (a) with pressure
plate (b) to the main beam (c)
using cylinder head screws
M6x55, (SW5).
Align the main beams with the
side section (d) or (e) and con-
nect them together from be-
neath using cylinder head
screws (f) M8x70 (SW6).
Adjust the inclination of the
bracket (g) with grub screws
M6x8, (SW3).
(a)
(d)
(e)
19
(c)
(b)
(f)
(g)
(f)
