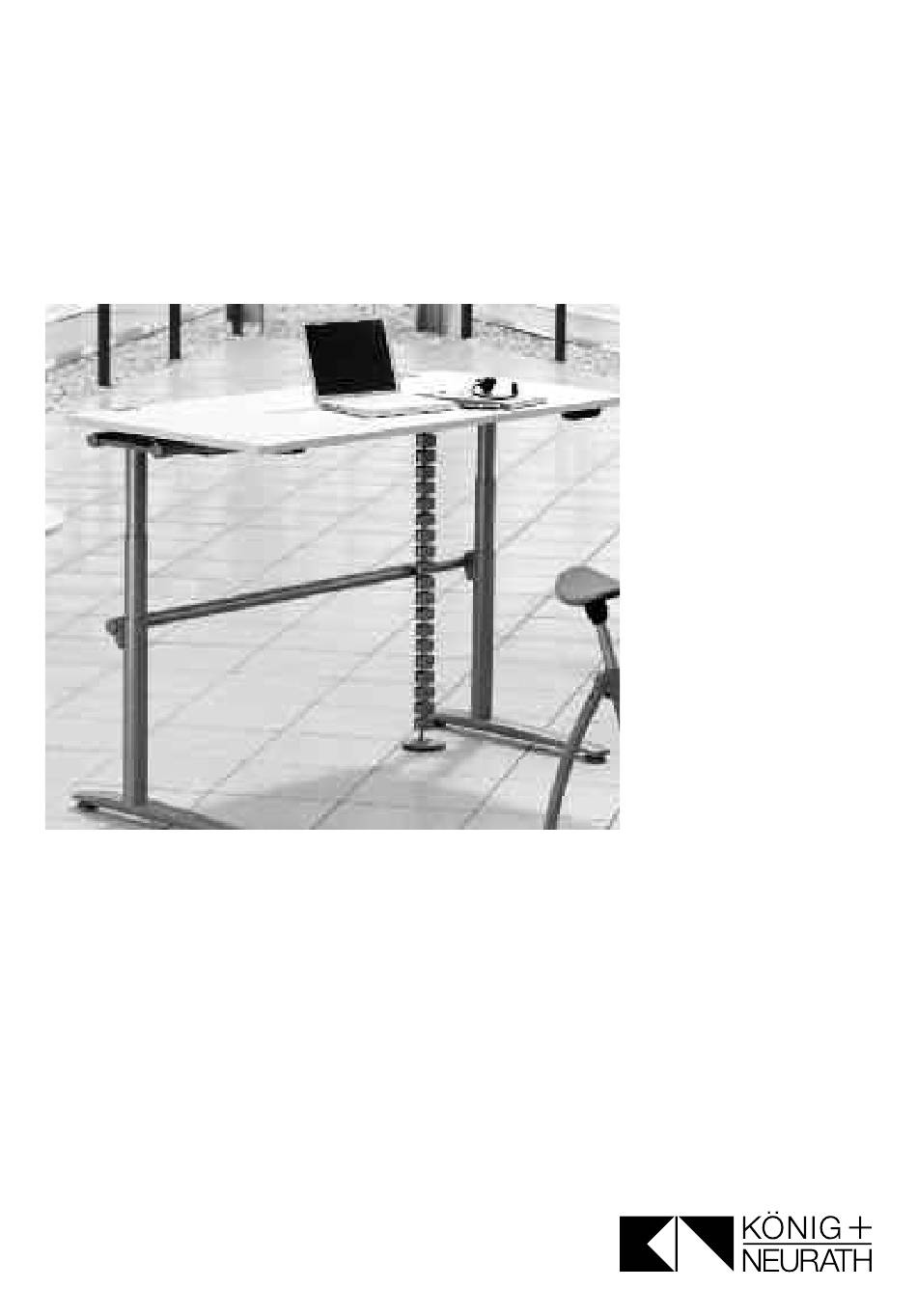

All manuals and user guides at all-guides.com ECO.S Motorisch höhenverstellbare Tische Motorised height-adjustable desks Bedienungs- und Montageanleitung GB Operating and assembly instructions Freiräume für Leistung.
Seite 2
All manuals and user guides at all-guides.com Inhalt Seite 1 - 21 Deutsch Contents Page 22 - 44 English...
Seite 3
All manuals and user guides at all-guides.com Vorwort Sehr geehrte Kundin, sehr geehrter Kunde! Sie haben sich für ein Spitzenprodukt aus dem Hause König + Neurath entschieden. Damit das Möbel zu Ihrer Zufriedenheit funktioniert, lesen Sie diese Anweisungen vor Inbetriebnahme aufmerksam durch und beachten Sie die hier gegebenen Sicherheitshinweise.
All manuals and user guides at all-guides.com Produktumfang Diese Anleitung gilt für alle ECO.S Arbeitstische mit motorischer Höhenverstellung. Eine darstellende Auflistung finden Sie unter der Über- schrift „Maße“. In Sonderfällen gilt sie auch für auf Kundenwunsch modifizierte Tische. Anwendungsbereich Die ECO.S Tische sind Arbeitstische, bzw. Bildschirm- arbeitstische für sitzende und stehende Tätigkeit im...
Montage von durch K+N autorisiertem Fachpersonal durchzuführen. Schiebeplatte Alle ECO.S motorisch höhenverstellbaren Arbeitsstische verfügen über eine Schiebeplatte. Bild 1 zeigt den Riegel der Schiebemechanik. Er sitzt mittig unter der Tisch- platte. Zum entriegeln der Schiebeplatte klappen Sie den Riegel - siehe Bild 2 - nach unten und ziehen die Tischplatte zu sich hin.
Seite 12
All manuals and user guides at all-guides.com Kabeldurchlässe Bild 3 Bild 4...
All manuals and user guides at all-guides.com Nun ist der Kabelkanal zugänglich - siehe Bild 3. Zum Schließen der Schiebeplatte klappen Sie den Riegel wieder nach unten und schieben die Tischplatte in ihre ursprüngliche Position. Elektrifizierung Bild 3 zeigt den geöffneten Kabelkanal und die Kabel- durchlässe in der Tischplatte zur horizontalen Elektrifizierung des Tisches.
Seite 14
All manuals and user guides at all-guides.com Bild 6 Bild 6 Bild 7 Bild 7 Bild 8 Bild 8...
All manuals and user guides at all-guides.com Montage einer CPU-Halterung Der Lieferumfang einer CPU-Halterung umfaßt den Loch- blechträger, den Montagewinkel, einen Klettgurt, 2 Zylin- derkopfschrauben M5 und 4 Halbrundkopfschrauben (schwarz) - Imbusschlüssel 4 und 2,5. Zur Montage lösen Sie zuerst die in Bild 6 markierten Schrauben in der Quertraverse.
Seite 16
All manuals and user guides at all-guides.com Bild 9...
All manuals and user guides at all-guides.com Steuerung Mit Memory-Funktion Die Pfeile deuten die damit in Gang gesetzte ⇑ ⇓ Hubrichtung - siehe Bild 9. Zudem haben Sie die Möglichkeit über die Memory- Funktion eine Anzahl von Niveaus zu speichern. Nähere Informationen entnehmen Sie bitte dem Anhang dieser Anleitung.
All manuals and user guides at all-guides.com Die Sicherheitshinweise sind unbedingt zu Beachten! Wird das System unsachgemäß betrieben, können Gefahren für Personen und Sachgegenstände entstehen! Sicherheitshinweise • Achten Sie darauf, dass der Tisch nur von eingewiesenen Personen – keinesfalls von unbeaufsichtigten Kindern – bedient werden soll.
All manuals and user guides at all-guides.com Inbetriebnahme Stellen Sie sicher, daß der Tisch ordnungsgemäß aufgestellt ist und daß alle Stecker zur Steuereinheit fest sitzen, sowie die Leitungen Ihrer Bürotechnik und des Computers in den dafür vorgesehenen Kanälen liegen. Schließen Sie den Tisch an das Versorgungsnetz an. ⇓...
All manuals and user guides at all-guides.com EG-Konformitätserklärung Firma: König+Neurath AG, Industriestrasse, 61184 Karben Bezeichnung: ECO.S Büromöbelsystem Produkt/Typ: Motorisch höhenverstellbare Tische Ausführung: Arbeitstisch Angewendete EG Richtlinien: Niederspannungsrichtlinie73/23/EWG EMV-Richtlinie 89/336/EWG Maschinenrichtlinie 98/37/EG (nach Anhang II A) Angewendete europ. Normen: EN ISO 12100 1+2; Sicherheit v. Maschinen EN 294;...
All manuals and user guides at all-guides.com Anhang...
Seite 22
All manuals and user guides at all-guides.com Bedienung des Lifttisches Bedienung des Lifttisches Mit Hilfe der Steuerungseinheit können Sie das Tischniveau heben oder Mit Hilfe der Steuerungseinheit können Sie das Tischniveau heben oder senken. Die Steuerungseinheit ist in zwei Versionen erhältlich; DP1K ohne senken.
All manuals and user guides at all-guides.com Sicherheitshinweise! Sicherheitshinweise! Sollte den Anweisungen, die mit dem Warnsymbol markiert sind nicht ent- Sollte den Anweisungen, die mit dem Warnsymbol sprochen werden, kann dies zu Unfällen mit ernsthaften Personenschäden markiert sind nicht entsprochen werden, kann dies zu führen.
Hubsäulen nur von Fachpersonal durchge- führt werden. Informieren Sie bitte den K+N Kunden - dienst! Wartung Die Hubsäulen sind wartungsfrei. Entsorgung Die motorisch höhenverstellbaren Tische der Serie ECO.S können mit dem Hausmüll entsorgt werden. Kundendienst: Telefon 06039 483-0...
Seite 25
All manuals and user guides at all-guides.com Introduction Dear customer, You have chosen a quality product from König + Neurath. To ensure that your furniture performs to your complete satisfaction, please read the following instructions care- fully, and take note of the safety guidelines.
Seite 26
All manuals and user guides at all-guides.com...
Seite 27
All manuals and user guides at all-guides.com Contents Product range, area of application Technical data, dimensions Transport, assembly, sliding top Wire management CPU installation 10-11 Operation 12-13 Safety instructions Getting started Ergonomics Declaration of conformity Appendix 17-21...
All manuals and user guides at all-guides.com Product range These instructions apply to all ECO.S desks with motor ised height adjustment. Please refer to the „Dimensions“ section for an illus - trated list. In special cases, they also apply to desks modified in line with customer wishes.
All manuals and user guides at all-guides.com Technical data Lifting capacity: 60 kg (central) Lift speed: max. 40 mm/sec Noise emission: < 60 dB Supply voltage: 230V ~ 50Hz Power input: 400 W Mode of operation: S2 10%, max. 2min. short-term Dimensions 1000...
Seite 31
All manuals and user guides at all-guides.com Dimensions 1600 1600 1800 1800 2000 2000 1600 1600 1800 1800 2000 2000...
Seite 32
All manuals and user guides at all-guides.com Dimensions Maße 2000 2000 2200 2200 2000 2000 2200 2200 1600 2000 1800...
Seite 33
All manuals and user guides at all-guides.com Figure 1 Bild 1 Figure 2 Bild 2...
Seite 34
K+N specialists. Sliding top All ECO.S motorised height-adjustable desks have sliding tops. Figure 1 shows the clamp bracket of the sliding mechanism, which is located centrally under the desk top. To unlock the sliding top, push the clamp bracket down –...
Seite 35
All manuals and user guides at all-guides.com Cable passages Kabeldurchlässe Figure 3 Figure 4...
All manuals and user guides at all-guides.com The cable tray is now accessible – see Fig 3. To close the sliding top, press the clamp bracket back down and push the desk top into its original position. Wire management Figure 3 shows the open cable tray and the cable openings in the desk top for horizontal wire manage- ment on the desk.
Seite 37
All manuals and user guides at all-guides.com Figure 6 Bild 6 Figure 7 Bild 7 Figure 8 Bild 8...
Seite 38
All manuals and user guides at all-guides.com Installing a CPU holder The scope of delivery for a CPU holder includes the per- forated plate, the mounting bracket, a Velcro strip, 2 M5 cylinder head screws and 4 round head screws (black) – Allen keys 4 and 2.5.
Seite 39
All manuals and user guides at all-guides.com Figure 9...
All manuals and user guides at all-guides.com Operation With memory function ⇑ ⇓ The arrows indicate the direction – see Figure 9. You can use the memory function to save a number of height settings. Please refer to the appendix at the end of these instructions for more information.
All manuals and user guides at all-guides.com Sicherheitshinweise! You must follow the safety instructions! Improper use of Sollte den Anweisungen, die mit dem Warnsymbol markiert sind nicht ent- the system poses a risk of material damage and personal sprochen werden, kann dies zu Unfällen mit ernsthaften Personenschäden führen.
All manuals and user guides at all-guides.com Getting started Make sure the desk has been set up correctly, that the Inbetriebnahme plug to the control panel is inserted firmly, and that the Stellen Sie sicher, daß der Tisch ordnungsgemäß cables from your office equipment and the computer are aufgestellt ist und daß...
All manuals and user guides at all-guides.com Operating the height-adjustable desk Bedienung des Lifttisches Mit Hilfe der Steuerungseinheit können Sie das Tischniveau heben oder The height of the desk can be raised or lowered using the control panel. The senken. Die Steuerungseinheit ist in zwei Versionen erhältlich; DP1K ohne control panel is available in two versions: DP1 K without memory function Speicherfunktion und DP1N mit Speicherfunktion (vier Speicherpositionen).
All manuals and user guides at all-guides.com Safety information! Sicherheitshinweise! Sollte den Anweisungen, die mit dem Warnsymbol markiert sind nicht ent- Failure to follow the instructions marked with a warning sprochen werden, kann dies zu Unfällen mit ernsthaften Personenschäden symbol can lead to accidents with serious personal führen.
Please notify K+N customer service! Maintenance The lifting columns are maintenance free. Disposal The ECO.S range of motorised height-adjustable desks can be disposed of as domestic waste. Customer service: Telephone: +49 0 6039 483-0...
