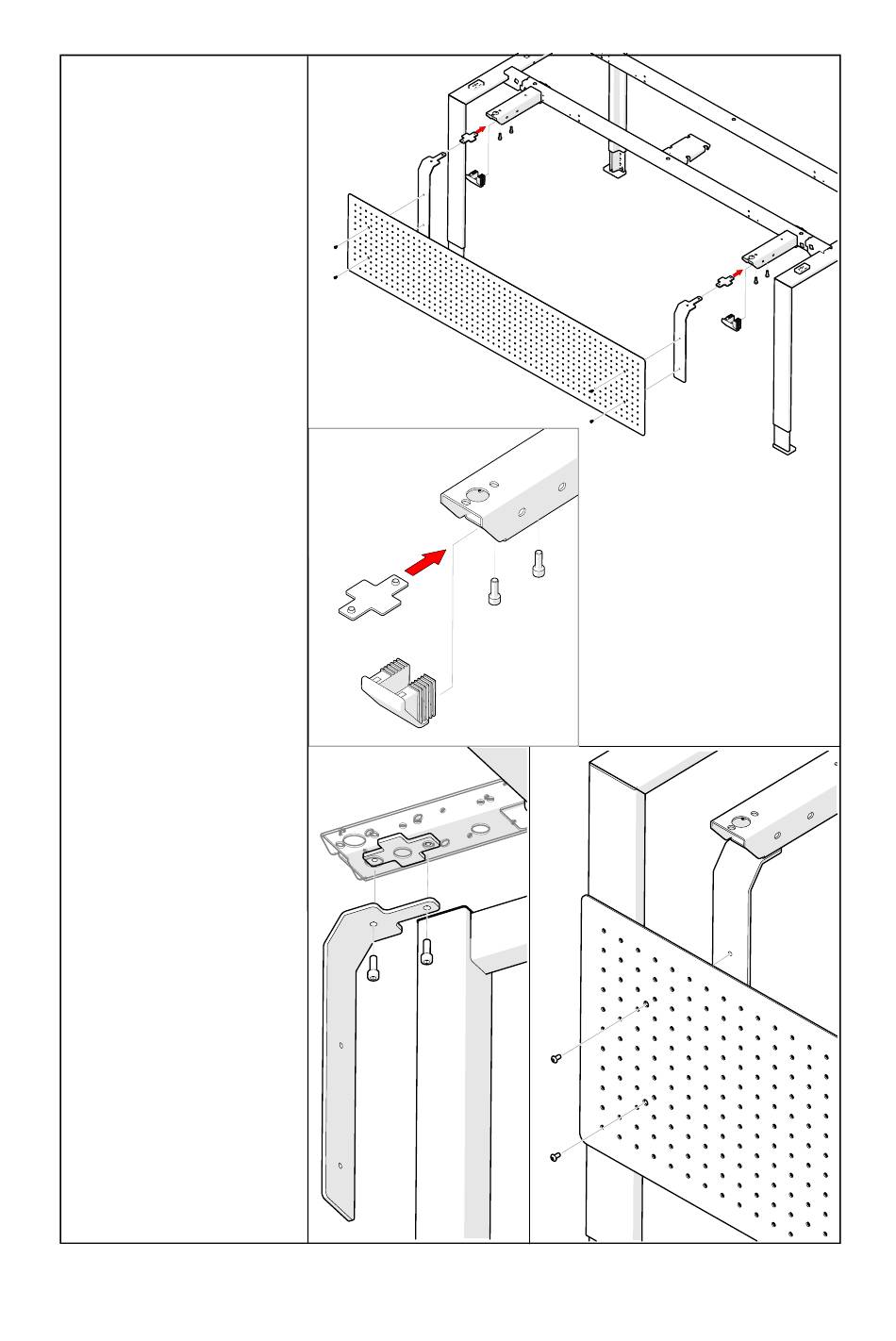

8.
Fitting the modes-
ty panel
Remove end caps (a).
Insert the threaded plate (b)
into the bracket.
Mount the rear panel retainer
(c) from beneath using cylin-
der head screws M6x16
(SW5) through the bracket,
connecting it to the threaded
plate (d) on the inside.
Attach the modesty panel (e)
to the rear panel retainer
using pan-head screws M6x8
(SW4).
(b)
(a)
(d)
(c)
24
(e)
