E N G L I S H
Preparation and insertion
This product is an infusion device which combines an infusion set (catheter) with an aid for insertion (serter).
This single-use, sterile product is delivered assembled and ready for use. Ensure sterility by checking that the
sterile paper and tamper-proof seal are not damaged. Carefully examine the instructions for use before inserting
this product. Refer to pump and reservoir user guides for installation and filling. Please see the corresponding
illustrations on pages 2 and 3.

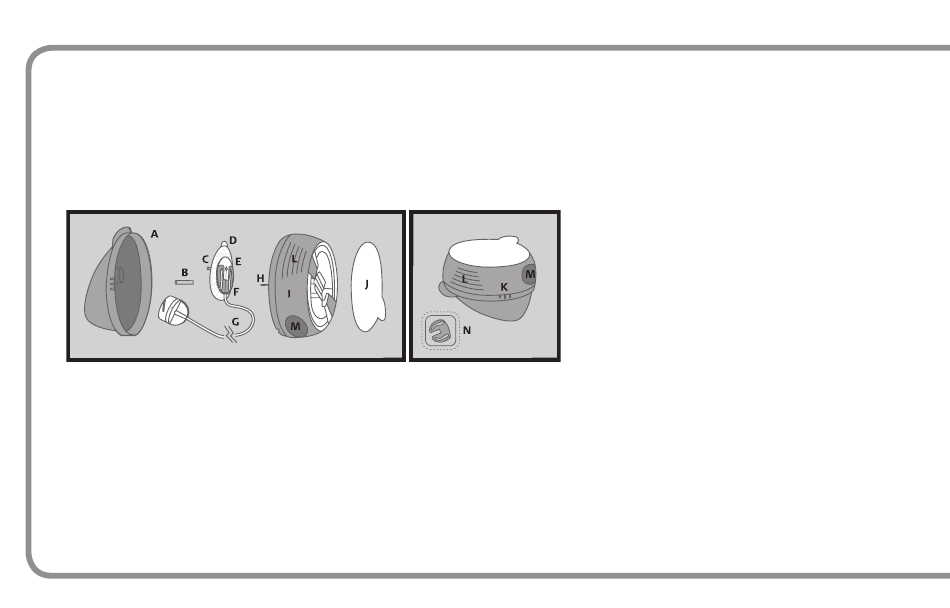

Contents
A. Lid
B. Needle guard
C. Soft cannula
D. Adhesive tape
E. Cannula housing
F. Site connector
G. Tubing
10
Important note!
H. Introducer needle K. Three raised dots – press here when lifting the lid off
I. Insertion device (see Figure 6)
J. Sterile paper L. Lined indentations – press here when loading (see
Figure 10)
M. Round Indentations – press both sides when releasing
(see Figure 12)
N. Disconnect cover (see Figure B)
Instructions
1. Wash your hands.
2. Suggested infusion sites. Choose infusion sites
recommended by a healthcare professional.
Do not use an area right next to your previous
insertion site.
3. Clean the insertion area with a disinfectant as
directed by your healthcare professional. Be sure
the area is air dry before inserting the infusion set.
4. Pull the red tape to remove the protective seal.
5. Remove the sterile paper.
6. Hold the bottom of the insertion device with one
hand, while firmly pressing the three raised dots
on each side of the lid with the other hand, and lift
up the lid.
CAUTION: Be careful not to bend or touch the
introducer needle when preparing the serter and
infusion set.
7. Unwinding the tubing: Carefully twist the
beginning of the tubing out of the slot. Now unwind
the tubing from the insertion device by pulling it
carefully upwards.
Caution: Do not touch the introducer needle when
unwinding the tubing. Be careful not to pull too
hard when the tubing is fully released. You could
accidentally remove the infusion set from the
introducer needle.
IMPORTANT NOTE! If the infusion set is not
securely placed in the insertion device with the
needle pointing straight ahead prior to insertion,
pain or minor injury may occur. To avoid this,
please ensure that the following steps are taken
