Applications Type

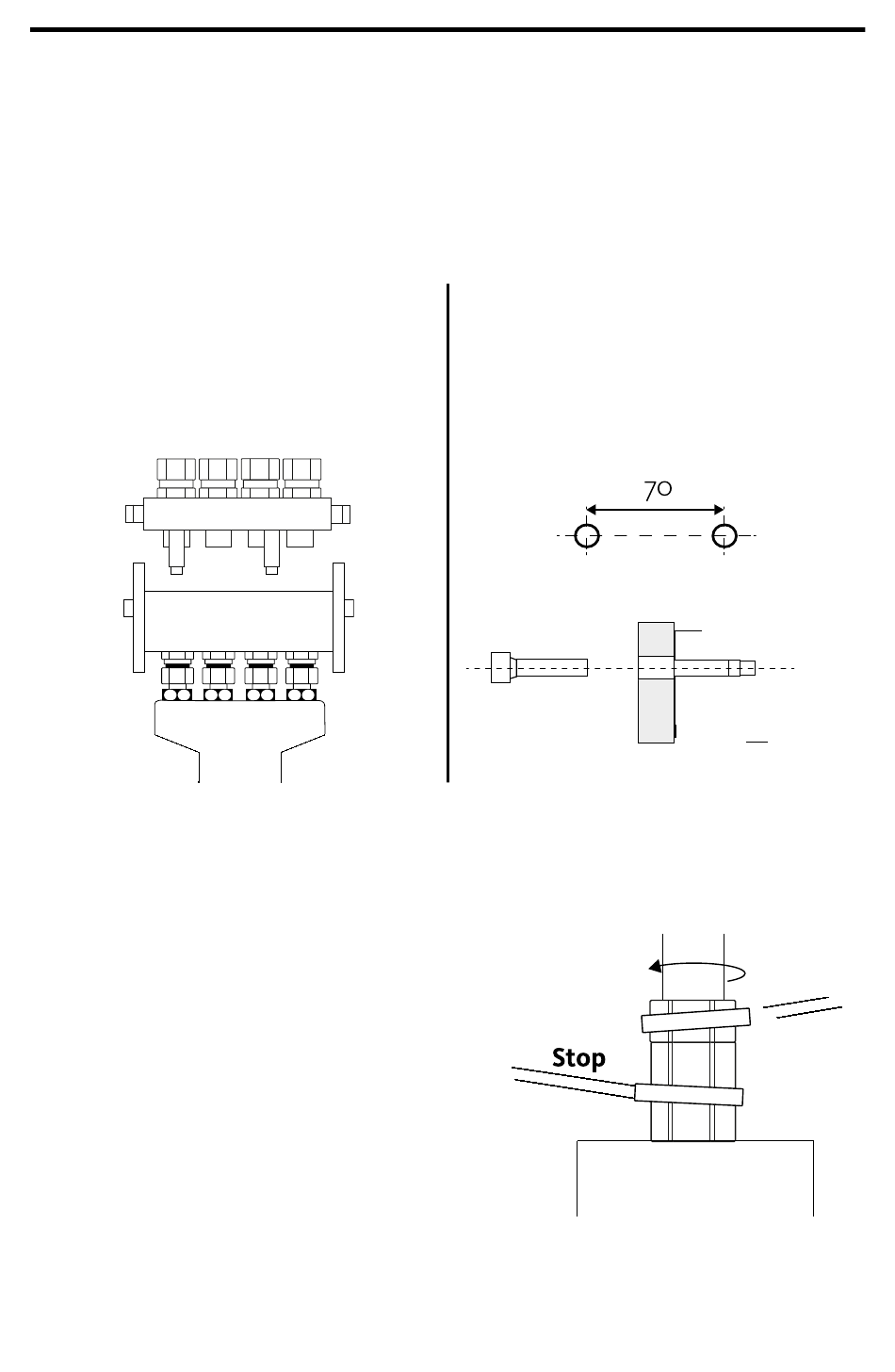

PS... series can be assembled both on the valve and on the panel.
PD... and PW... series have been designed to be directly integrated on
the valve.
Mounting on Valve
Apply the MultiFaster directly on
the valve by using the proper Faster
fittings AD12G-DMLR1,5 series.
Hydraulic Lines Connection
It is always recommended during
assembly, to use two screw-wrenches
in order to prevent any rotation.
Panel Mounting
Arrange on the fixing panel two
holes diameter 8,5 and apply the
fixed part by using M8 hexagonal
head cap screws.
