Installation

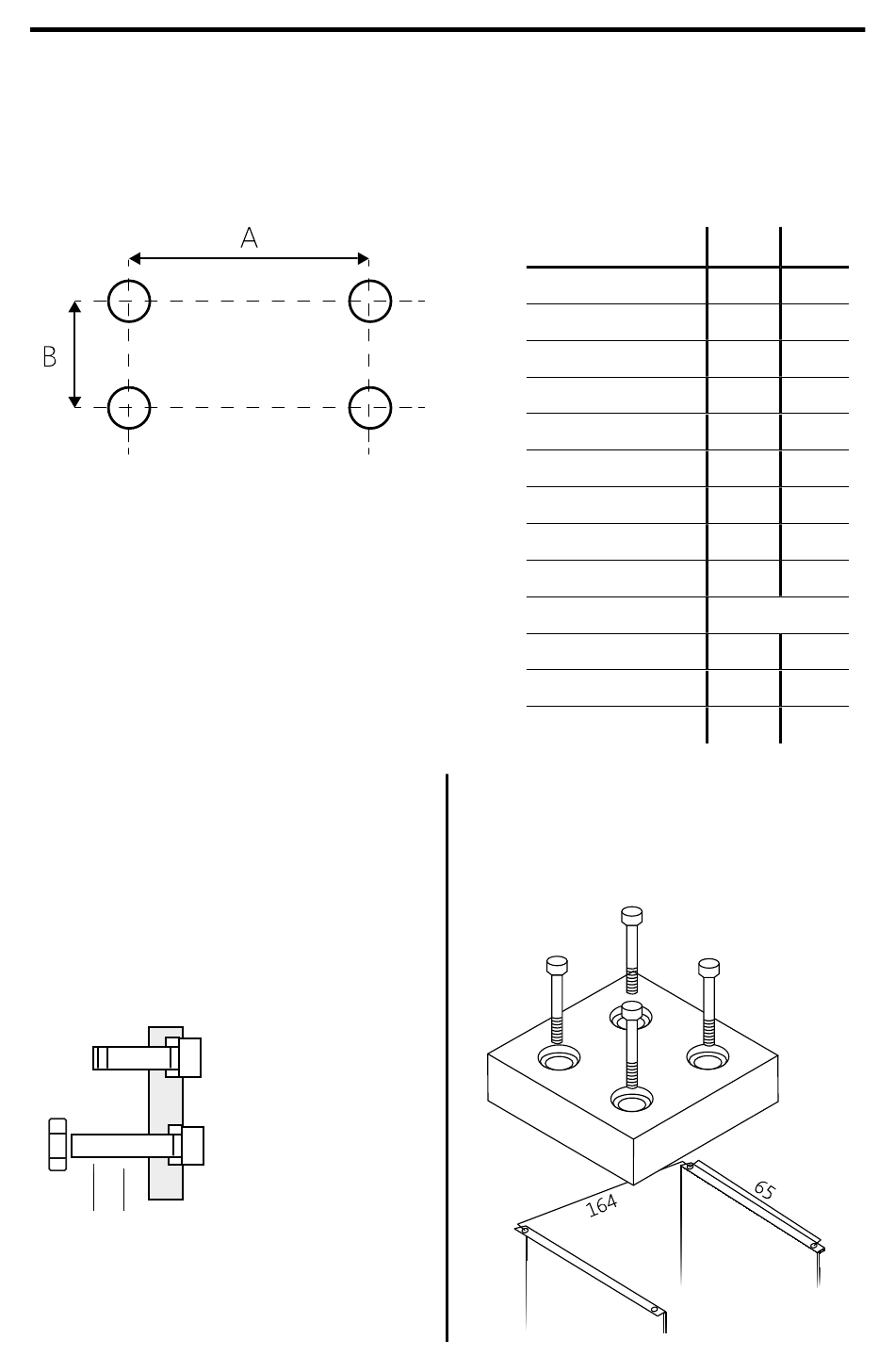

Arrange on the fixing panel four threaded holes for screws or four 8,5
pass-by holes and follow the table.
Fix the fixed part by M8 screws
with eventual lock nut. For P124
use M12 screws or arrange pass-by
holes diameter 13.
Model
P112 - P116
P124
P206 - P208
P306
P404
P505
P506 - P508
P5066 - P5068
P510
P606
P608
P808
P1004
For P606 apply two brackets to
the machine and install the fixed
part by four screw.
A B
103 40
194 46
103 31
103 31
103 22
103 31
115 31
115 31
115 40
*
50 30
50 30
63 18
