2. Technical data

For use in solar thermal systems with a collector surface of up to approx. 26 m
parameters)
The solar station is delivered as a pre-assembled unit. Expansion vessels
and accessories are not included in the scope of supply and must be
installed according to the technical parameters of the system.

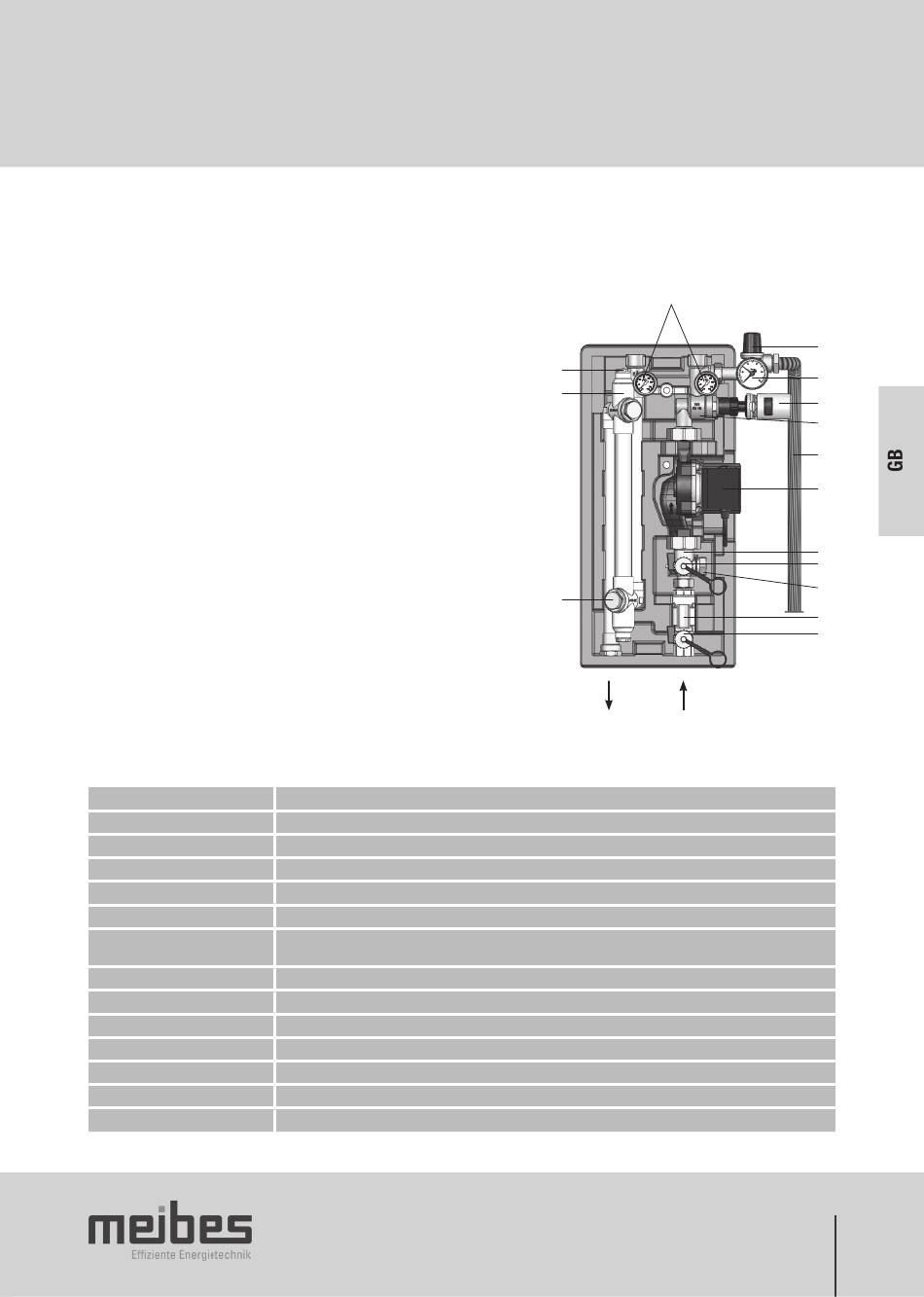

1 Safety valve integrated in the small manifold
2 Manometer
3 Actuator
4 SolaVentec valve block as a shut-off and control device
5 Vent line for safety valve (not included in the scope of supply)
6 Recirculation pump
7 Small manifold with 3/4" male thread connection for an expansion vessel,
flushing, filling and draining ball valve (with cap and hose fitting),
flow control device
8 Flushing, filling and draining ball valve (with cap and hose fitting)
9 Connection option for expansion vessel
10 Volumetric flow indicator
11 Flushing, filling and draining ball valve (with cap and hose fitting)
12 Connection for expansion vessel
13 Siphon with integrated permanent air vent
14 Manual air bleed device
15 Thermometers
A Supply line
B Return line
Technical data
Collector surface
Pump
Operating temperature
Safety valve
Thermometer indicating range
Manometer indicating range
Volumetric flow limiter
Sealing material
Components made of
Upper connection
Lower connection
Expansion vessel connection
Axial distance
Overall dimensions (insulation)
up to 26 m
2
see article number
up to 120°C, short periods 130°C (observe max. permissible temp. of the pump)
6 bar
20...150°C
0...10 bar
Water: 1.0...13.0 l/min; propylene glycol (40%): 0.8...10.3 l/min
Water: 8.0...30.0 l/min; propylene glycol (40%): 6.9...25.8 l/min
PTFE (Teflon), asbestos-free fibre sealant, EPDM, silicone
steel, brass, glass, EPP insulation
3/4" female thread
3/4" female thread
3/4" male thread
top: 100 mm; bottom: 118 mm
approx: H 520 x W 250 x D 180 mm
(depending on the type and prevailing/existing system
