TCS-Compact
Cover for injection unit
1
2 Rubber gasket for welding torch gas nozzle
Injection unit

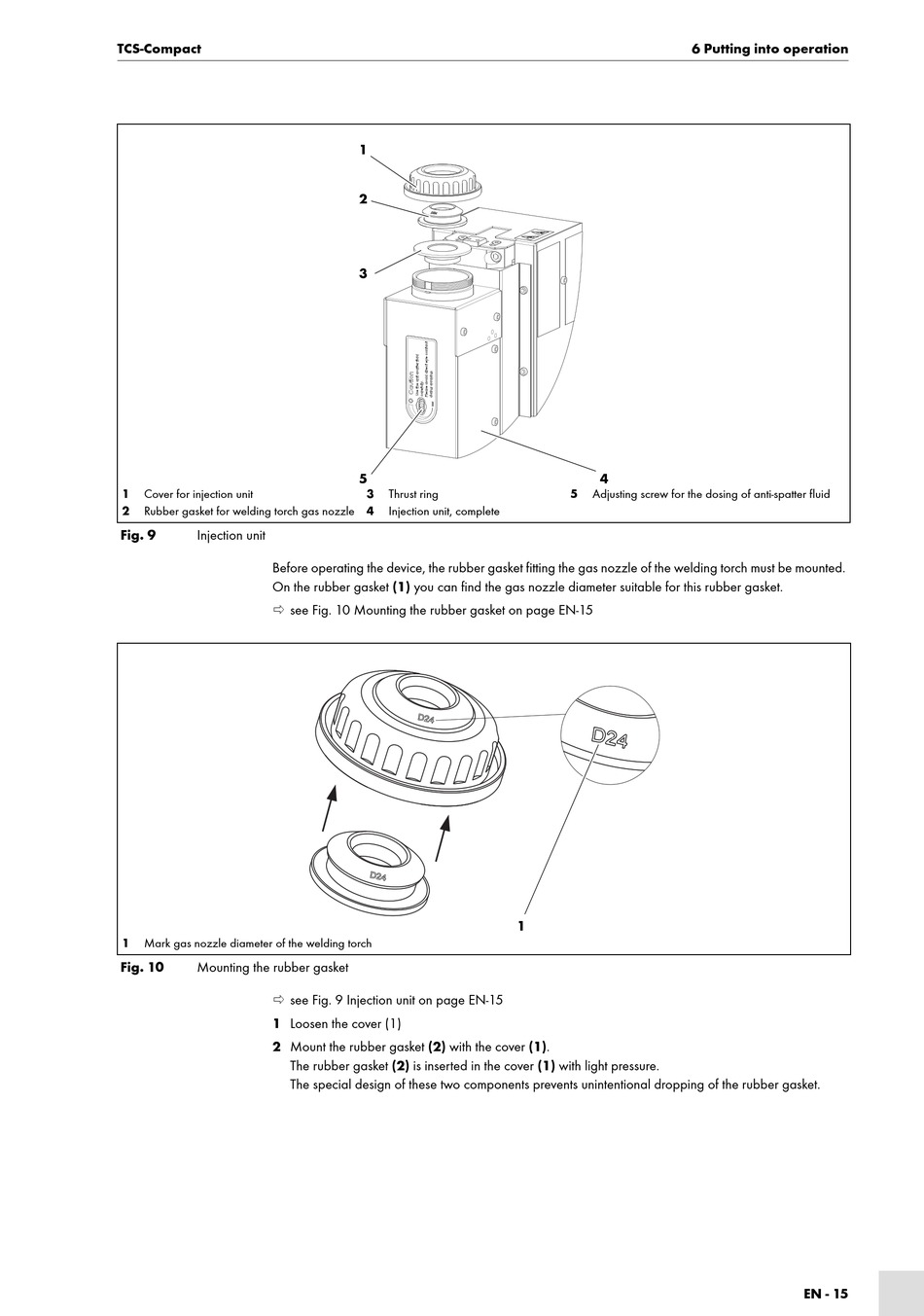

Fig. 9
Before operating the device, the rubber gasket fitting the gas nozzle of the welding torch must be mounted.
On the rubber gasket (1) you can find the gas nozzle diameter suitable for this rubber gasket.
 see Fig. 10 Mounting the rubber gasket on page EN-15
1 Mark gas nozzle diameter of the welding torch
Mounting the rubber gasket
Fig. 10
 see Fig. 9 Injection unit on page EN-15
1 Loosen the cover (1)
2 Mount the rubber gasket (2) with the cover (1).
The rubber gasket (2) is inserted in the cover (1) with light pressure.
The special design of these two components prevents unintentional dropping of the rubber gasket.
1
2
3
5
Thrust ring
3
4 Injection unit, complete
1
6 Putting into operation
4
Adjusting screw for the dosing of anti-spatter fluid
5
EN - 15
