Technical data (continued)
5.5

Control inputs/outputs

Digital input (+IN, –IN)
Control inputs 2, galvanically isolated
(optocoupler)
Control voltage active 4...40 V
Control voltage inactive –40...+1.5 V
Input current at 24 V 11 mA

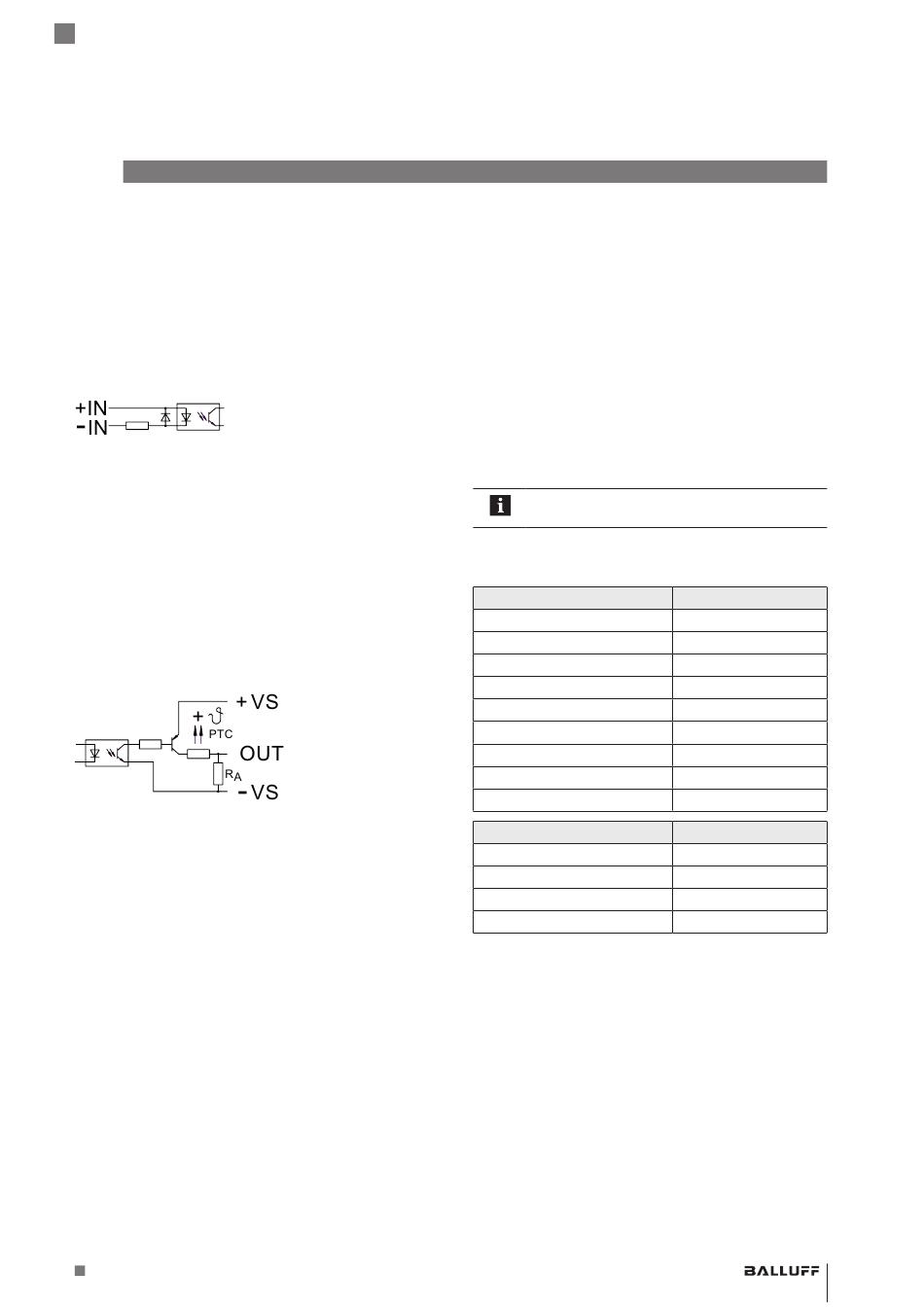

Fig. 5-3: Digital input (+IN, –IN)
Control output (01, 02, 03, 04)
Control outputs 4, galvanically isolated
(optocoupler), PNP, positive-
switching
Operating voltage 19.2...28.8 V DC
Output V
S
Output current ≤ 50 mA
Voltage drop at 20 mA Approx. 2.5 V
Output resistance R 10 kΩ to –V
A
Fig. 5-4: Control output (01, 02, 03, 04)
5.6

Operating conditions

Ambient temperature –20 °C...+55 °C
Storage temperature –20 °C...+60 °C
Noise radiation
FCC Part 15 B Cl. A
Vibration/shock EN 60068 Part 2-2-6/27/32
This UHF system consists of a processor unit and
antennas as outlined in the specifications and may only be
operated in industrial environments and only in the listed
countries issuing operating licenses, subject to all
applicable national legal regulations and standards (see
chapter Safety on page 6).
www.balluff.com
5.7
ISO 18000-6
EPCglobal™
5.8
Configured EPC length
96 Bit
496 Bit
5.9
S

Data carrier

Type C
Class 1 Generation 2

Multi-tagging

Maximum number of data
carriers (sum of all active
antennas)
25 data carriers
15 data carriers
Multitagging operation is supported starting
with device software version 1.2 (see part label).

Function displays

Operating states
Ready
Error
Tag present
Digital input 1
Digital input 2
Digital output 1
Digital output 2
Digital output 3
Digital output 4
Status EtherNet/IP
Module Status
Network Status
Data Rate
Link/Activity
LED
Green
Red
Orange
Orange
Orange
Orange
Orange
Orange
Orange
LED
Red/Green
Red/Green
Red/Green
Red/Green
