5.1.2. Option : Hydraulic connection on the outside

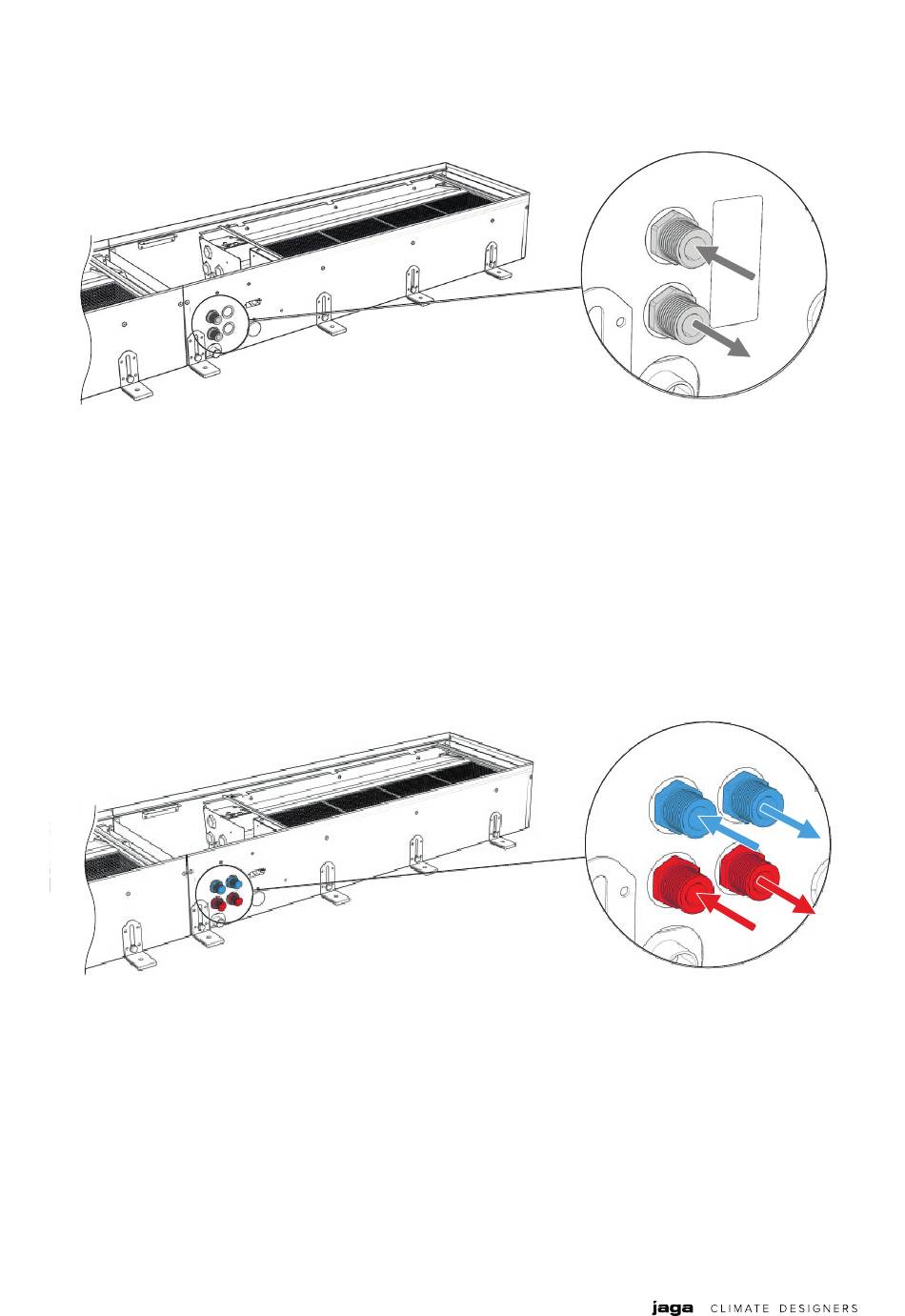

Hydraulic connection : 2-pipe connection with connectionpoints
Connect the pipes to the connectionpoints. Take the above diagram into account in order to ensure
correct operation.
Top : Supply
Bottom : retour
Hydraulic connection : 4-pipe connection with connectionpoints
Connect the pipes to the connectionpoints. Take the above diagram into account in order to ensure
correct operation.
Top : Cold water : Supply / Return
Bottom : Hot water : Supply / Return
