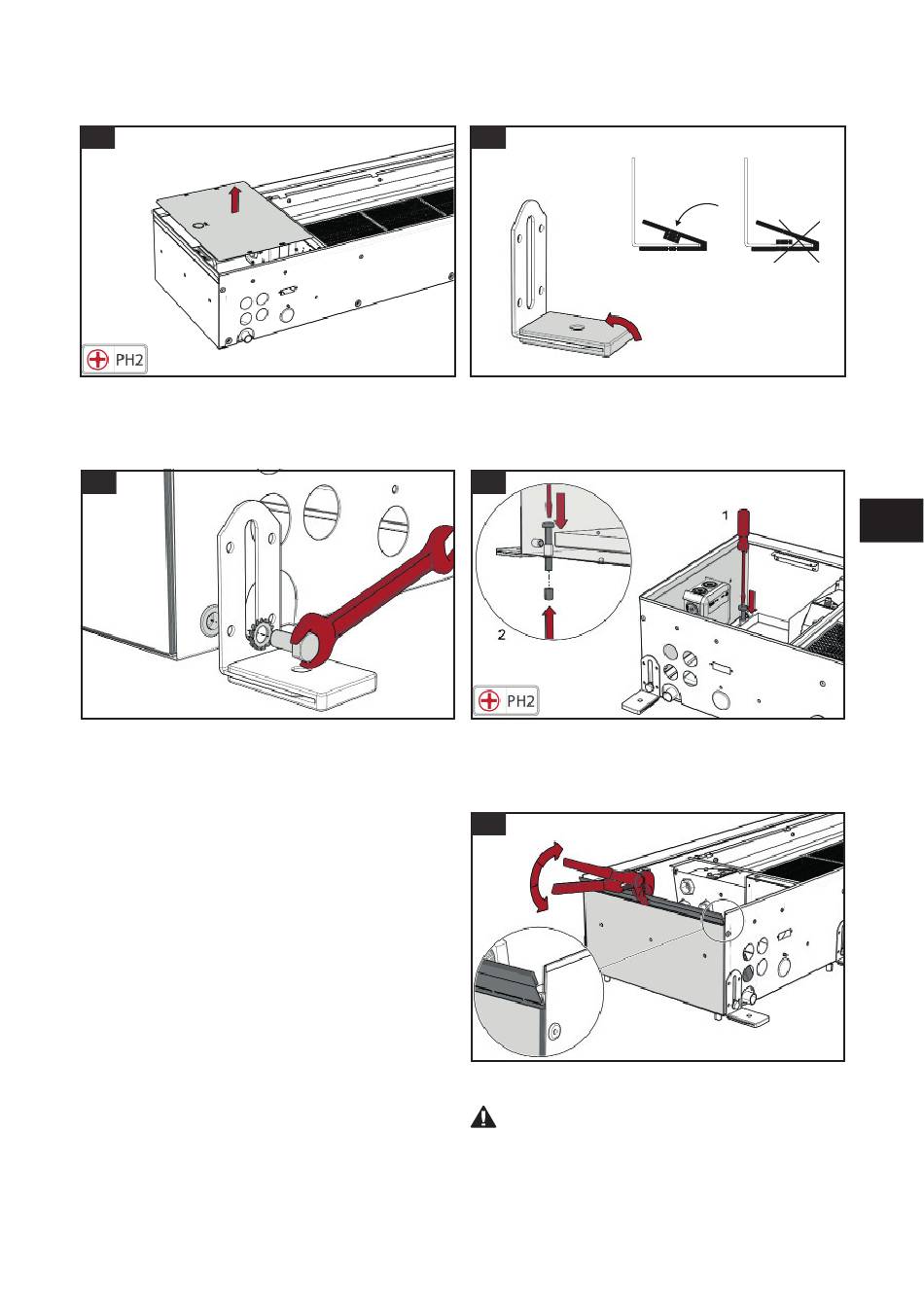

5. INSTALLATION
01
Remove the valve cover plate before installing the device.
03
Fix the height adjusters to the casing. Do not completely tighten
the bolt.
In case of continuous installation: continue to step 05.
In case of a single device installation: continue to step 07.
CLIMA CANAL H19 | MANUAL | 9 MAART 2020, 15:23
02
Mount the sound decoupler around each height adjuster .
04
Continue to unscrew the control screws in the bottom of the device
and place the caps on the screws.
05
Break the metal strip on the short end of the casing ( to enable
continuous installation of the grille).
Only on the ends that need to be connected .
