5. Operation
5.1 Voltage supply
The DCU 220 can be operated with the following voltage
supply:
R
Storage battery
R
Power supply unit
!
Only use the power supply unit included in the scope
of delivery.
5.2

Storage battery operation

i
For additional information on storage battery
operation, see the "User manual DCU 220" on the
desktop.
5.3 Opening and closing
Follow the steps below to open the DCU 220:
1. Pull the latch () upward to release the clip ().
2. Pull the clip downward.
3. Open the screen ().

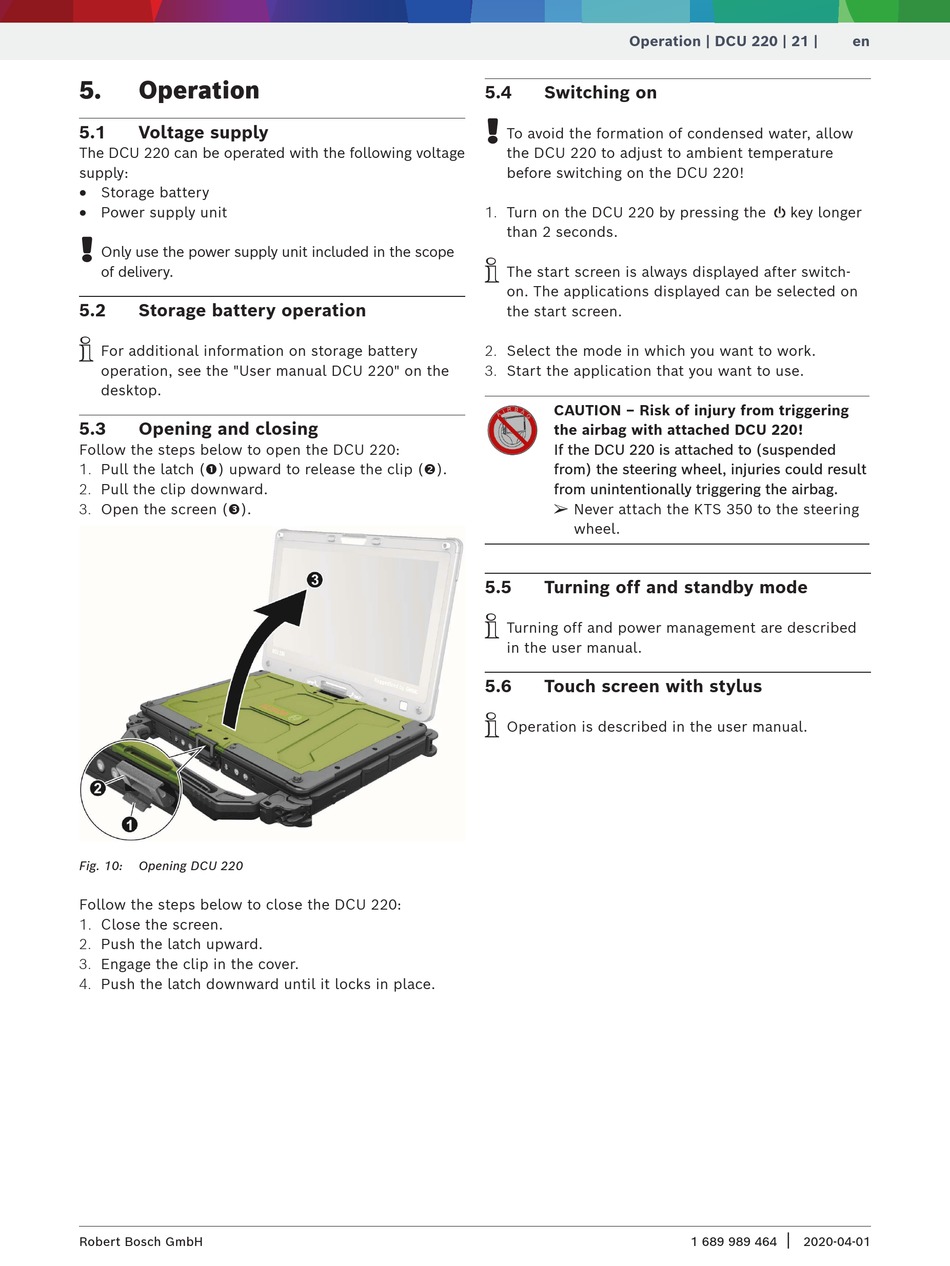

Fig. 10: Opening DCU 220
Follow the steps below to close the DCU 220:
1. Close the screen.
2. Push the latch upward.
3. Engage the clip in the cover.
4. Push the latch downward until it locks in place.
Robert Bosch GmbH
5.4 Switching on
!
To avoid the formation of condensed water, allow
the DCU 220 to adjust to ambient temperature
before switching on the DCU 220!
1. Turn on the DCU 220 by pressing the
than 2 seconds.
i
The start screen is always displayed after switch-
on. The applications displayed can be selected on
the start screen.
2. Select the mode in which you want to work.
3. Start the application that you want to use.
CAUTION – Risk of injury from triggering
the airbag with attached DCU 220!
If the DCU 220 is attached to (suspended
from) the steering wheel, injuries could result
from unintentionally triggering the airbag.
¶
Never attach the KTS 350 to the steering
wheel.
5.5 Turning off and standby mode
Weitergabe sowie Vervielfältigung der Zeich- Rz 10
nungen sind nicht gestattet und müssen
streng vertraulich behandelt werden. Alle ( )
Rechte sind bei ads-tec GmbH nach DIN 34. Druckdatum/ print date: 17.12.2010
strictly confidential according to DIN 34. File:Airbag Lenkrad + TT13 Doku 130
i
Turning off and power management are described
in the user manual.
5.6

Touch screen with stylus

i
Operation is described in the user manual.
Operation | DCU 220 | 21 |
key longer
|
1 689 989 464 2020-04-01
