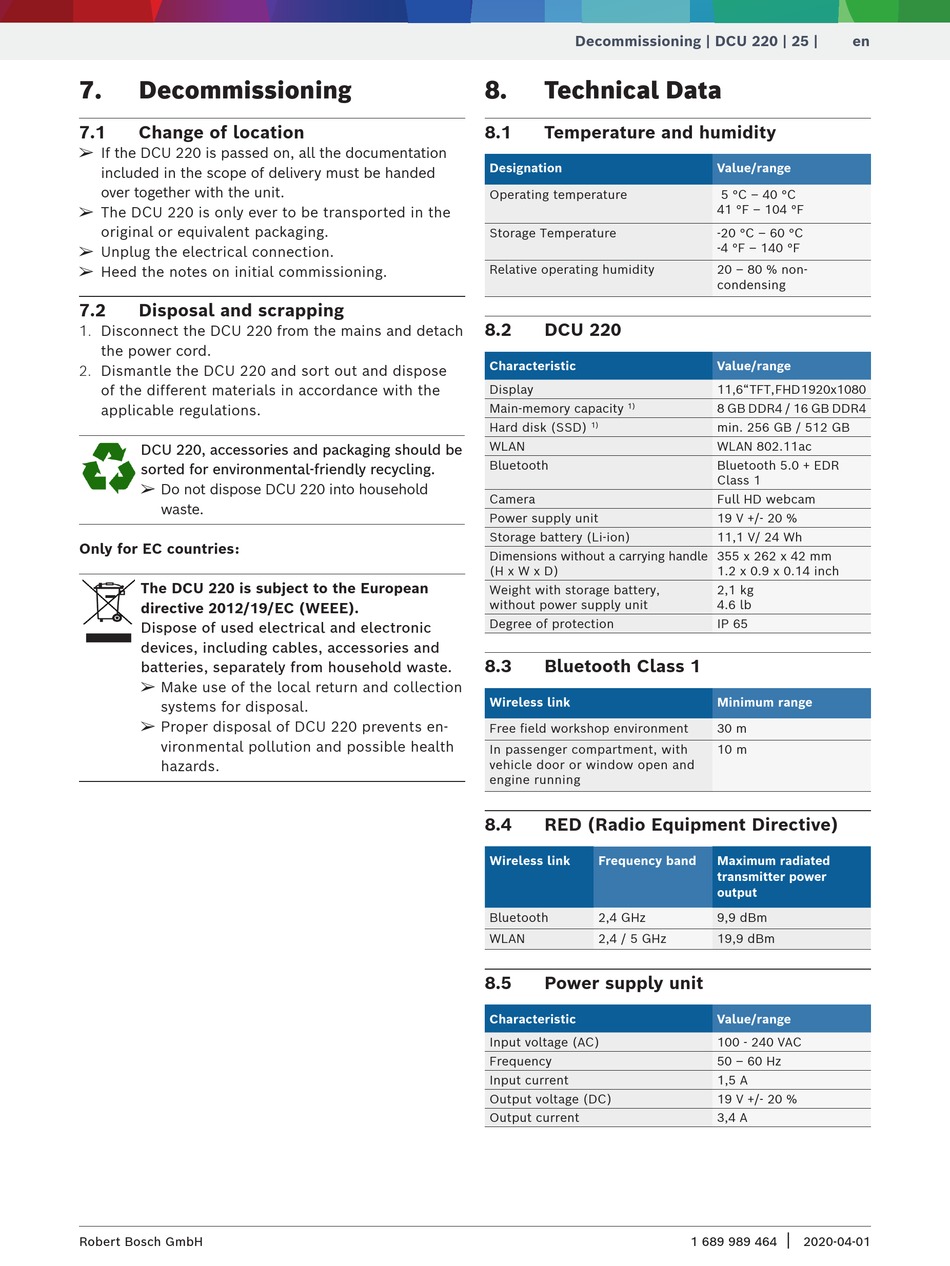

7. Decommissioning
7.1

Change of location

¶
If the DCU 220 is passed on, all the documentation
included in the scope of delivery must be handed
over together with the unit.
¶
The DCU 220 is only ever to be transported in the
original or equivalent packaging.
¶
Unplug the electrical connection.
¶
Heed the notes on initial commissioning.
7.2

Disposal and scrapping

1. Disconnect the DCU 220 from the mains and detach
the power cord.
2. Dismantle the DCU 220 and sort out and dispose
of the different materials in accordance with the
applicable regulations.
DCU 220, accessories and packaging should be
sorted for environmental-friendly recycling.
¶
Do not dispose DCU 220 into household
waste.
Only for EC countries:
The DCU 220 is subject to the European
directive 2012/19/EC (WEEE).
Dispose of used electrical and electronic
devices, including cables, accessories and
batteries, separately from household waste.
¶
Make use of the local return and collection
systems for disposal.
¶
Proper disposal of DCU 220 prevents en-
vironmental pollution and possible health
hazards.
Robert Bosch GmbH
Decommissioning | DCU 220 | 25 |
8.

Technical Data

8.1 Temperature and humidity
Designation
Operating temperature
Storage Temperature
Relative operating humidity
8.2 DCU 220
Characteristic
Display
Main-memory capacity
1)
Hard disk (SSD)
1)
WLAN
Bluetooth
Camera

Power supply unit

Storage battery (Li-ion)
Dimensions without a carrying handle
(H x W x D)
Weight with storage battery,
without power supply unit
Degree of protection
8.3 Bluetooth Class 1
Wireless link
Free field workshop environment
In passenger compartment, with
vehicle door or window open and
engine running
8.4 RED (Radio Equipment Directive)
Wireless link Frequency band
Bluetooth 2,4 GHz
WLAN 2,4 / 5 GHz
8.5 Power supply unit
Characteristic
Input voltage (AC)
Frequency
Input current
Output voltage (DC)
Output current
en
Value/range
5 °C – 40 °C
41 °F – 104 °F
-20 °C – 60 °C
-4 °F – 140 °F
20 – 80 % non-
condensing
Value/range
11,6" TFT, FHD 1920x1080
8 GB DDR4 / 16 GB DDR4
min. 256 GB / 512 GB
WLAN 802.11ac
Bluetooth 5.0 + EDR
Class 1
Full HD webcam
19 V +/- 20 %
11,1 V/ 24 Wh
355 x 262 x 42 mm
1.2 x 0.9 x 0.14 inch
2,1 kg
4.6 lb
IP 65
Minimum range
30 m
10 m
Maximum radiated
transmitter power
output
9,9 dBm
19,9 dBm
Value/range
100 - 240 VAC
50 – 60 Hz
1,5 A
19 V +/- 20 %
3,4 A
|
1 689 989 464 2020-04-01
