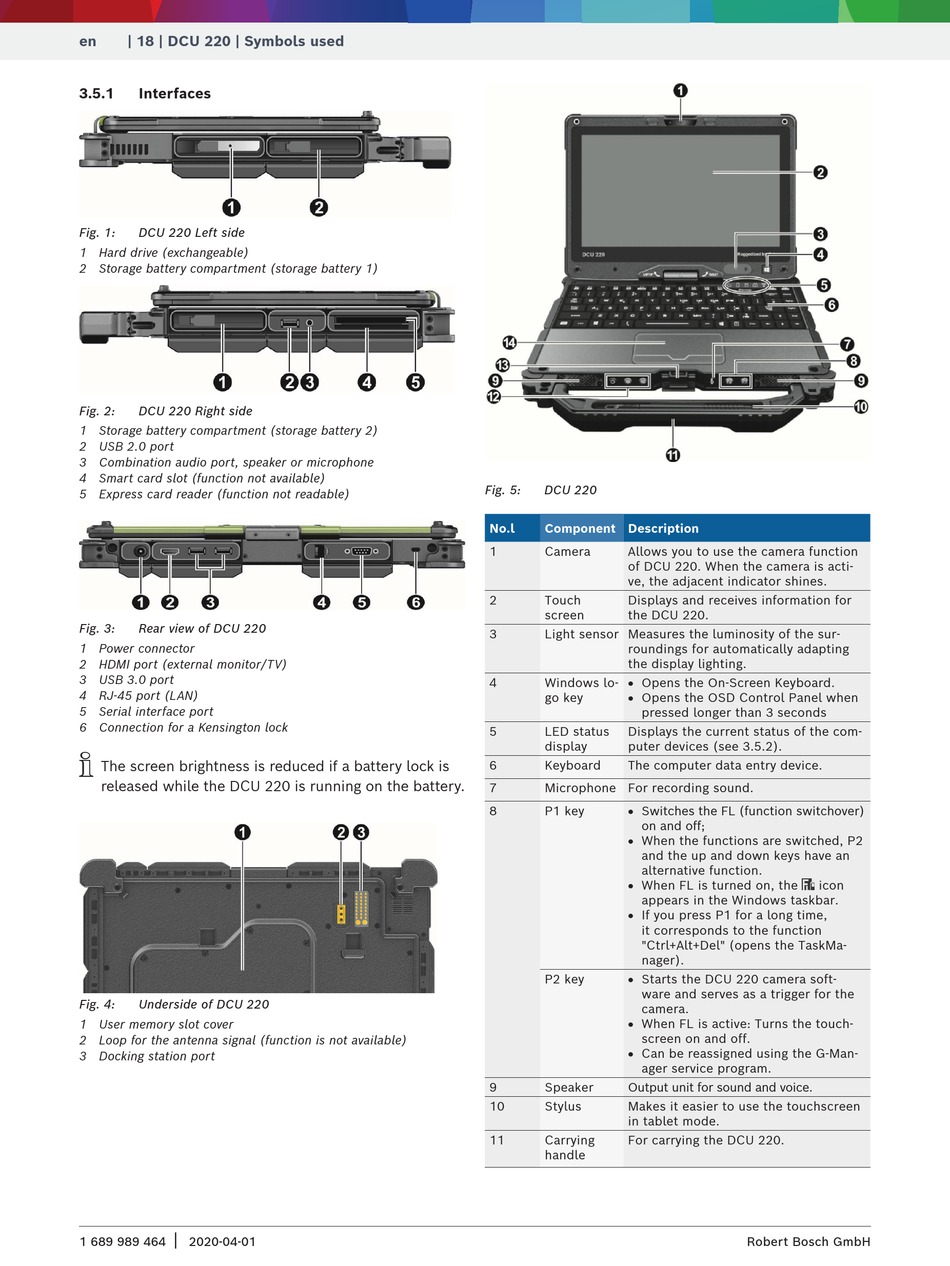

en | 18 | DCU 220 | Symbols used
3.5.1

Interfaces

Fig. 1: DCU 220 Left side
1 Hard drive (exchangeable)
2 Storage battery compartment (storage battery 1)
Fig. 2: DCU 220 Right side
1 Storage battery compartment (storage battery 2)
2 USB 2.0 port
3 Combination audio port, speaker or microphone
4 Smart card slot (function not available)
5 Express card reader (function not readable)
Fig. 3: Rear view of DCU 220
1 Power connector
2 HDMI port (external monitor/TV)
3 USB 3.0 port
4 RJ-45 port (LAN)
5 Serial interface port
6 Connection for a Kensington lock
i
The screen brightness is reduced if a battery lock is
released while the DCU 220 is running on the battery.
Fig. 4: Underside of DCU 220
1 User memory slot cover
2 Loop for the antenna signal (function is not available)
3 Docking station port
|
1 689 989 464 2020-04-01
Fig. 5: DCU 220
No.l Component Description
1 Camera Allows you to use the camera function
of DCU 220. When the camera is acti-
ve, the adjacent indicator shines.
2 Touch Displays and receives information for
screen the DCU 220.
3 Light sensor Measures the luminosity of the sur-
roundings for automatically adapting
the display lighting.
R Opens the On-Screen Keyboard.
4 Windows lo-
R Opens the OSD Control Panel when
go key
pressed longer than 3 seconds
5 LED status Displays the current status of the com-
display puter devices (see 3.5.2).
6 Keyboard The computer data entry device.
7 Microphone For recording sound.
R Switches the FL (function switchover)
8 P1 key
on and off;
R When the functions are switched, P2
and the up and down keys have an
alternative function.
R When FL is turned on, the
appears in the Windows taskbar.
R If you press P1 for a long time,
it corresponds to the function
"Ctrl+Alt+Del" (opens the TaskMa-
nager).
R Starts the DCU 220 camera soft-
P2 key
ware and serves as a trigger for the
camera.
R When FL is active: Turns the touch-
screen on and off.
R Can be reassigned using the G-Man-
ager service program.
9 Speaker Output unit for sound and voice.
10 Stylus Makes it easier to use the touchscreen
in tablet mode.
11 Carrying For carrying the DCU 220.
handle
icon
