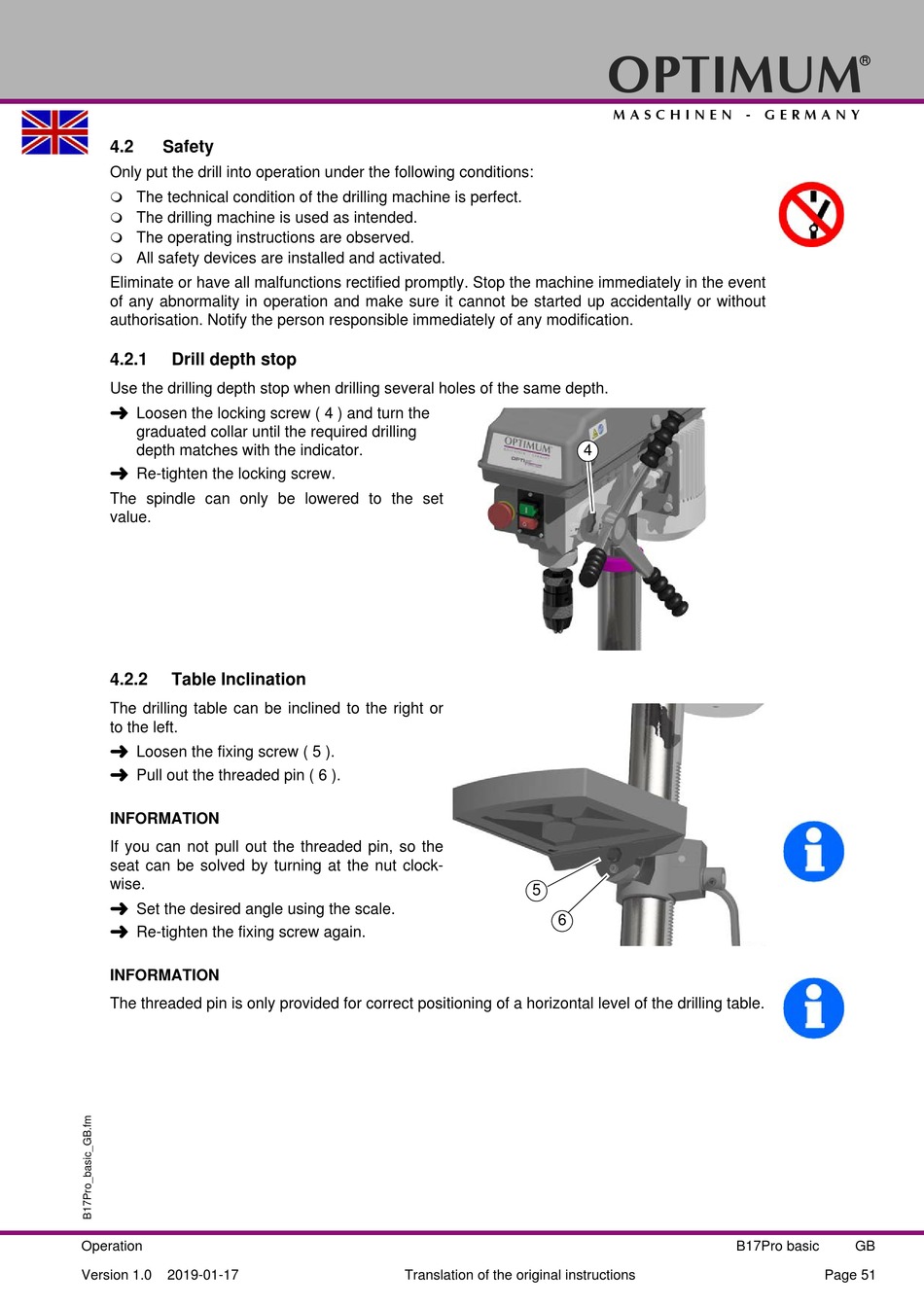

4.2

Safety

Only put the drill into operation under the following conditions:

The technical condition of the drilling machine is perfect.

The drilling machine is used as intended.

The operating instructions are observed.

All safety devices are installed and activated.
Eliminate or have all malfunctions rectified promptly. Stop the machine immediately in the event
of any abnormality in operation and make sure it cannot be started up accidentally or without
authorisation. Notify the person responsible immediately of any modification.
4.2.1

Drill depth stop

Use the drilling depth stop when drilling several holes of the same depth.

Loosen the locking screw ( 4 ) and turn the
graduated collar until the required drilling
depth matches with the indicator.

Re-tighten the locking screw.
The spindle can only be lowered to the set
value.
4.2.2

Table Inclination

The drilling table can be inclined to the right or
to the left.

Loosen the fixing screw ( 5 ).

Pull out the threaded pin ( 6 ).
INFORMATION
If you can not pull out the threaded pin, so the
seat can be solved by turning at the nut clock-
wise.

Set the desired angle using the scale.

Re-tighten the fixing screw again.
INFORMATION
The threaded pin is only provided for correct positioning of a horizontal level of the drilling table.
