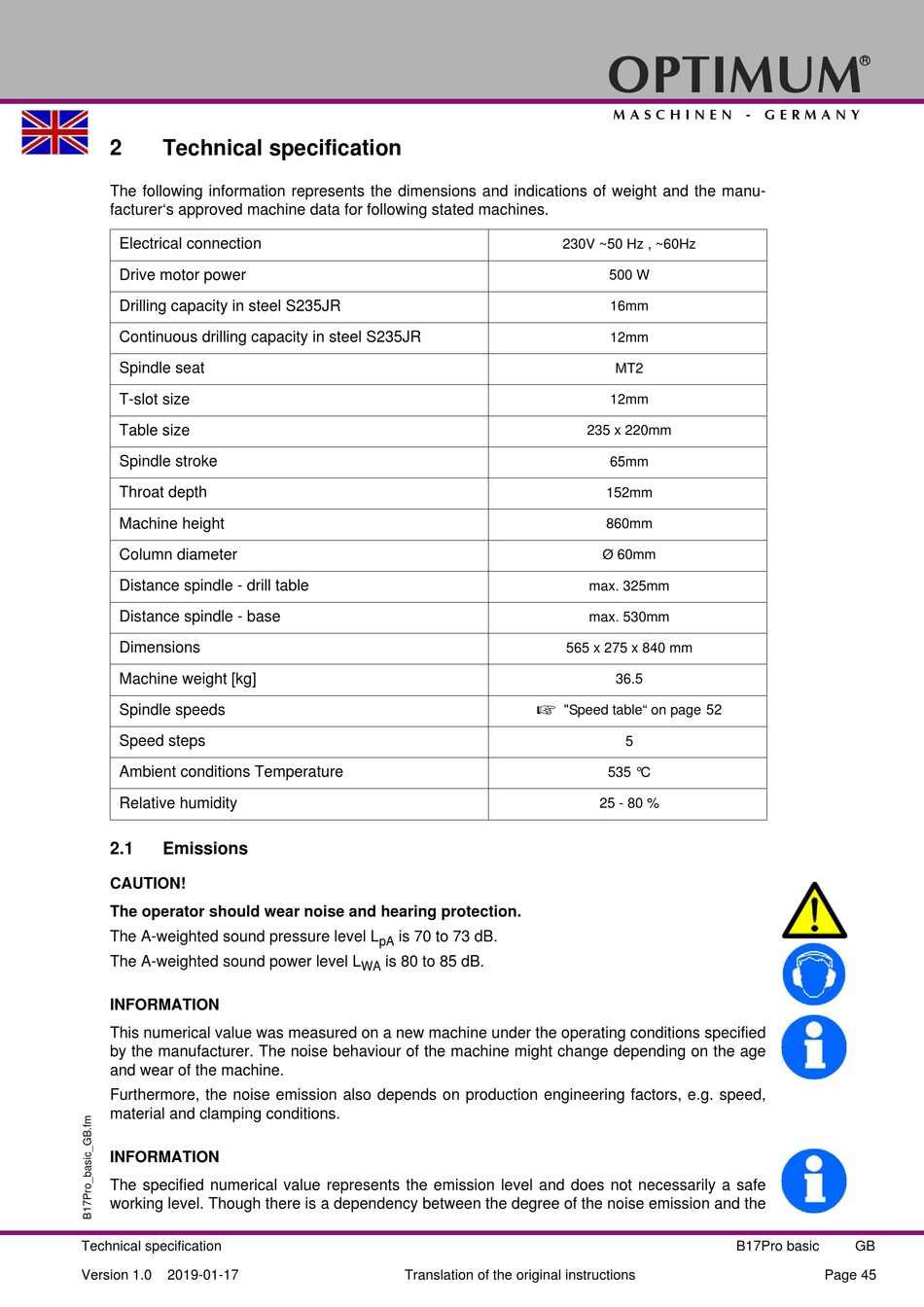

Technical specification

The following information represents the dimensions and indications of weight and the manu-
facturer's approved machine data for following stated machines.
Electrical connection
Drive motor power
Drilling capacity in steel S235JR
Continuous drilling capacity in steel S235JR
Spindle seat
T-slot size
Table size
Spindle stroke
Throat depth
Machine height
Column diameter
Distance spindle - drill table
Distance spindle - base
Dimensions
Machine weight [kg]
Spindle speeds
Speed steps
Ambient conditions Temperature
Relative humidity
2.1

Emissions

CAUTION!
The operator should wear noise and hearing protection.
The A-weighted sound pressure level L
The A-weighted sound power level L
INFORMATION
This numerical value was measured on a new machine under the operating conditions specified
by the manufacturer. The noise behaviour of the machine might change depending on the age
and wear of the machine.
Furthermore, the noise emission also depends on production engineering factors, e.g. speed,
material and clamping conditions.
INFORMATION
The specified numerical value represents the emission level and does not necessarily a safe
working level. Though there is a dependency between the degree of the noise emission and the
Technical specification
Version 1.0 2019-01-17
is 70 to 73 dB.
pA
is 80 to 85 dB.
WA
Translation of the original instructions
OPTIMUM
M A S C H I N E N - G E R M A N Y
230V ~50 Hz , ~60Hz
500 W
16mm
12mm
MT2
12mm
235 x 220mm
65mm
152mm
860mm
Ø 60mm
max. 325mm
max. 530mm
565 x 275 x 840 mm
36.5

"Speed table" on page 52
5
535 °C
25 - 80 %
®
B17Pro basic GB
