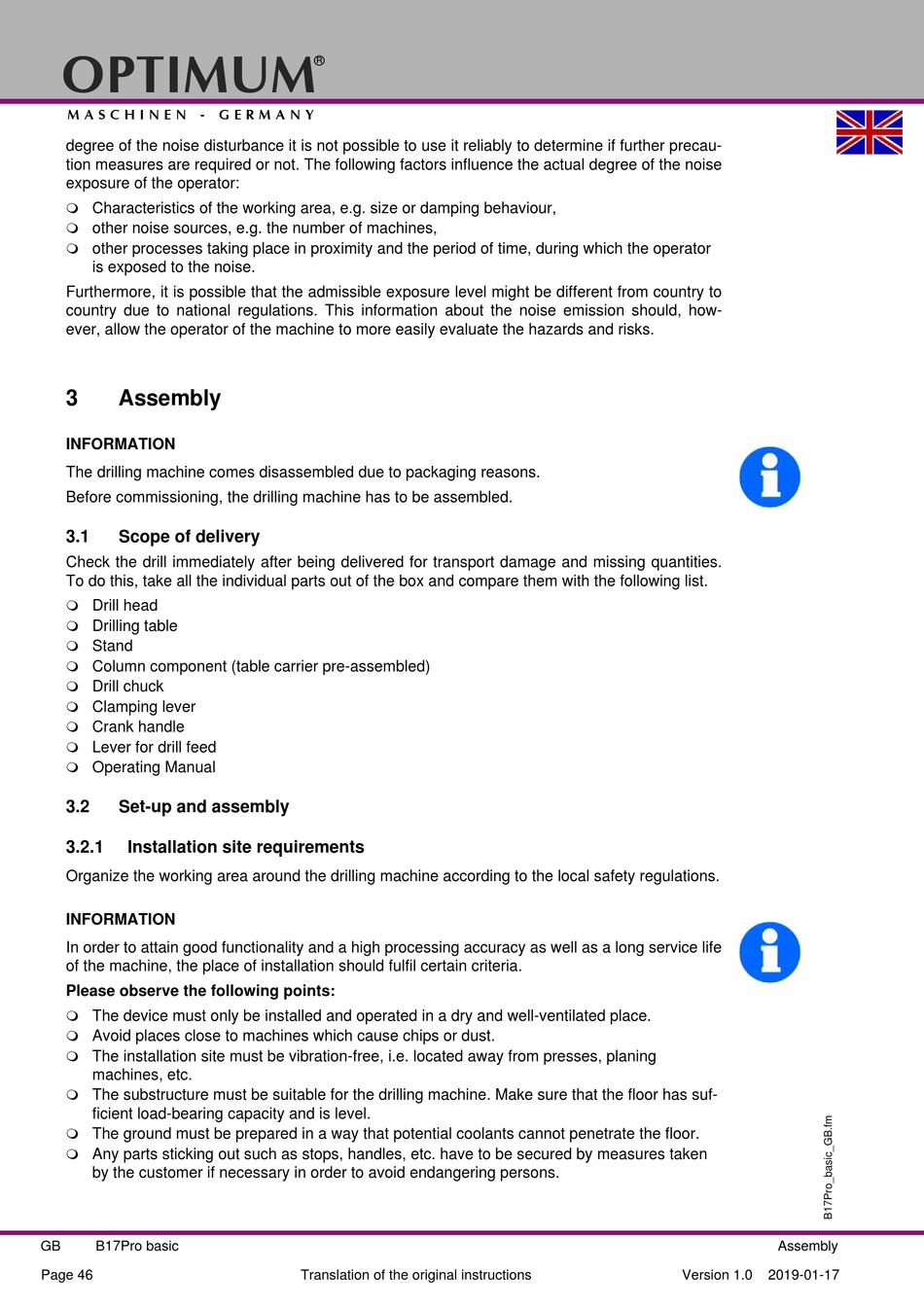

degree of the noise disturbance it is not possible to use it reliably to determine if further precau-
tion measures are required or not. The following factors influence the actual degree of the noise
exposure of the operator:

Characteristics of the working area, e.g. size or damping behaviour,

other noise sources, e.g. the number of machines,

other processes taking place in proximity and the period of time, during which the operator
is exposed to the noise.
Furthermore, it is possible that the admissible exposure level might be different from country to
country due to national regulations. This information about the noise emission should, how-
ever, allow the operator of the machine to more easily evaluate the hazards and risks.
3

Assembly

INFORMATION
The drilling machine comes disassembled due to packaging reasons.
Before commissioning, the drilling machine has to be assembled.
3.1

Scope of delivery

Check the drill immediately after being delivered for transport damage and missing quantities.
To do this, take all the individual parts out of the box and compare them with the following list.

Drill head

Drilling table

Stand

Column component (table carrier pre-assembled)

Drill chuck

Clamping lever

Crank handle

Lever for drill feed

Operating Manual
3.2

Set-up and assembly

3.2.1

Installation site requirements

Organize the working area around the drilling machine according to the local safety regulations.
INFORMATION
In order to attain good functionality and a high processing accuracy as well as a long service life
of the machine, the place of installation should fulfil certain criteria.
Please observe the following points:

The device must only be installed and operated in a dry and well-ventilated place.

Avoid places close to machines which cause chips or dust.

The installation site must be vibration-free, i.e. located away from presses, planing
machines, etc.

The substructure must be suitable for the drilling machine. Make sure that the floor has suf-
ficient load-bearing capacity and is level.

The ground must be prepared in a way that potential coolants cannot penetrate the floor.

Any parts sticking out such as stops, handles, etc. have to be secured by measures taken
by the customer if necessary in order to avoid endangering persons.
