AS 3000 IO-Link
21

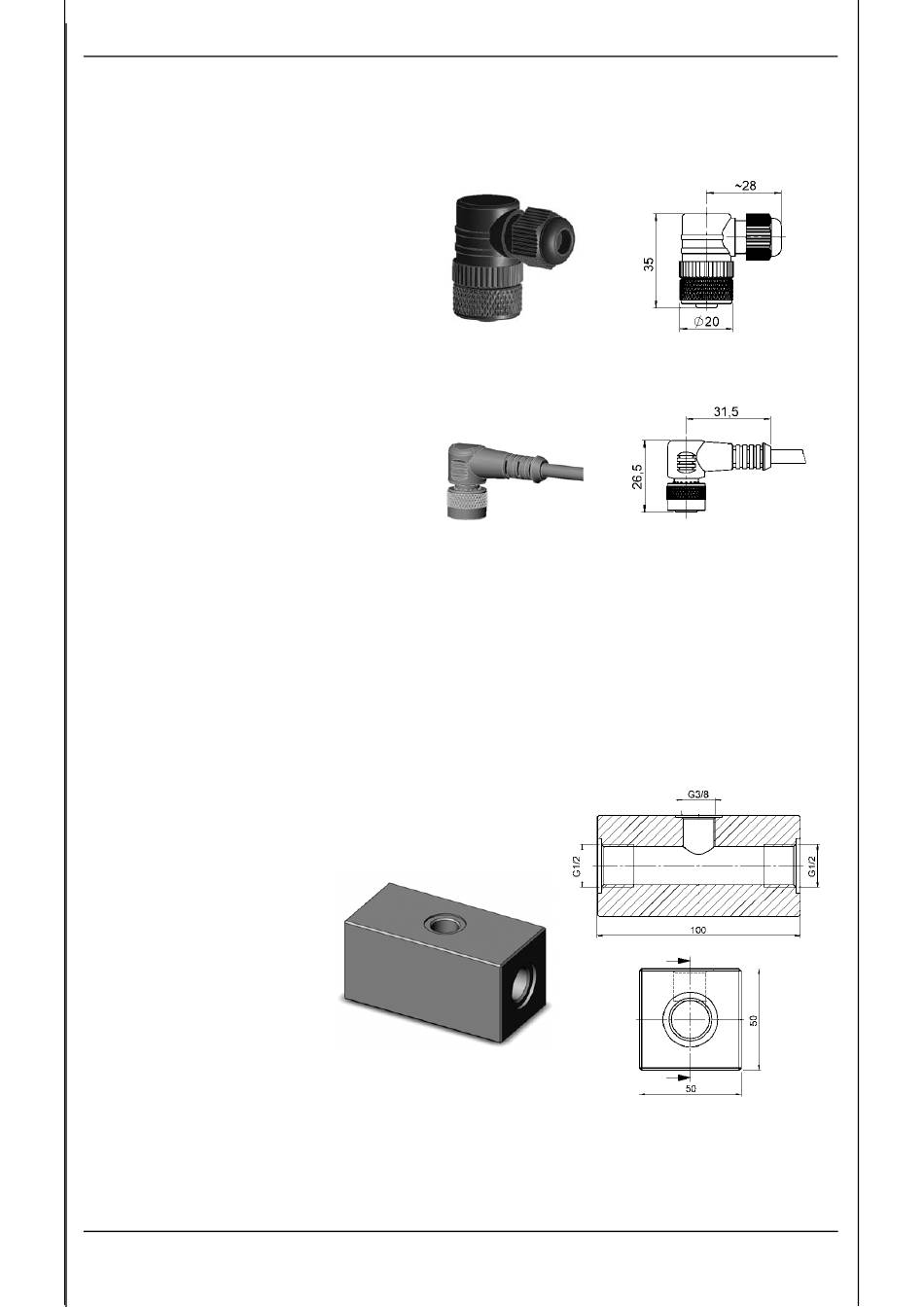

Equipment

21.1 Electrical connection

ZBE 06 (4 pole)
Mating connector M12x1, right-
angled
Cable diameter: 2.5 .. 6.5 mm
(0.1 .. 0.26 inch)
Part No.: 6006788
ZBE 06-02 (4 pole)
Mating connector M12x1, right-angle
with 2 m (78.7 inch) cable,
Part No.: 6006790
ZBE 06-05 (4 pole)
Mating connector M12x1, right-angle
with 5 m (197 inch) cable,
Part No.: 6006789
Colour code:
Pin 1: brown
Pin 2: white
Pin 3: blue
Pin 4: black

21.2 Mechanical connection

ZBM 22
Adapter for installing in a
G1/2" line
Order no.: 3248511
